TechSpec Overall Height (in): 27.4
TechSpec Overall Length (in): 39.86
TechSpec Core Length (in): 33.07
TechSpec Core Height (in): 27.28
TechSpec Rows: 3
TechSpec Core Thickness (in): 2.04
TechSpec Material: Aluminum
TechSpec Applications: 2016-2019 Nissan Titan XD 5.0L Cummins
TechSpec Engine Codes: IS-V

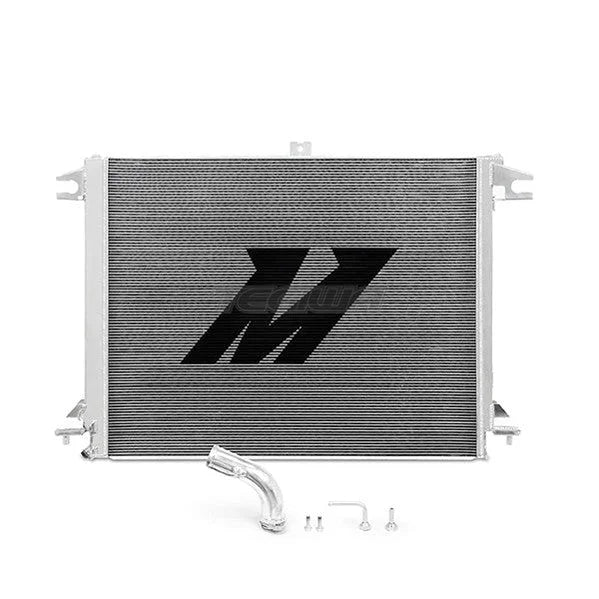

TechSpec Includes: Aluminum Radiator-- Fill Neck--Mounting Hardware--Mishimoto Lifetime Warranty
Features:Direct fit for the 2016+ Nissan Titan XD
Full aluminum construction including durable, TIG-welded end tanks
Features a three-row, efficient brazed aluminum core
Increased fluid capacity and optimal heat dissipation
Provides efficient temperature reduction for towing, hauling, or during aggressive driving conditions
Efficient temperature regulation for both stock and modified trucks
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty
Install Difficulty: 3

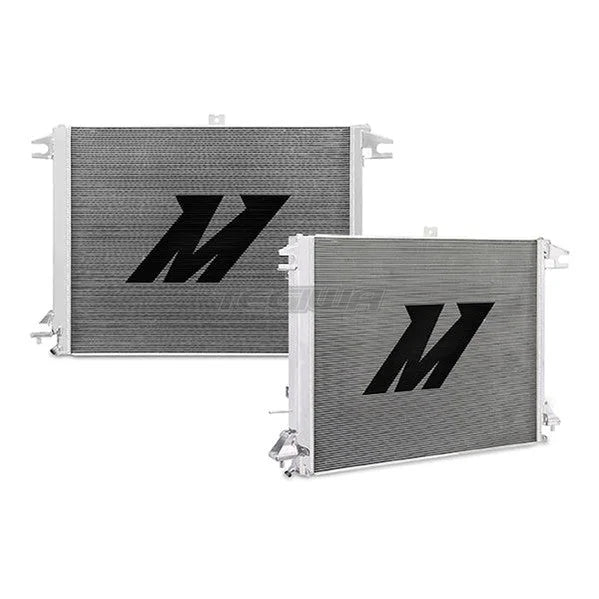

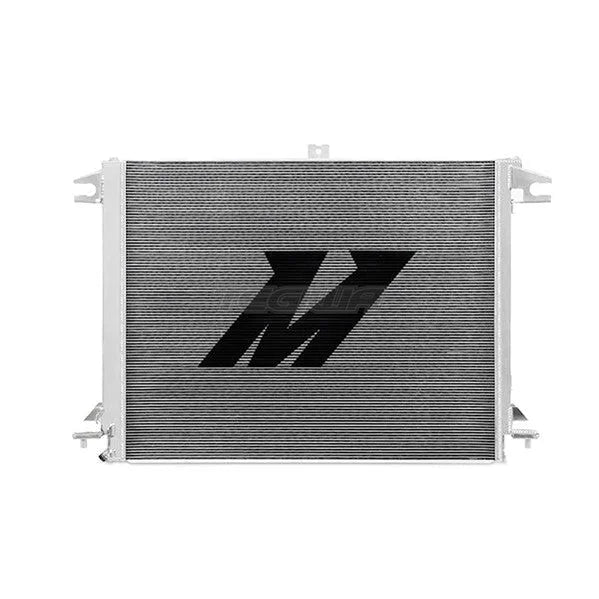

Looking to upgrade your 2016+Nissan Titan XD 5.0 radiator? Mishimoto has developed a performance aluminum radiator for the 2016+Nissan Titan XD 5.0 Cummins Engine as an ideal upgrade from the factory radiator. This performance radiator was designed and engineered to maximize cooling efficiency, boost engine functions, and protect your truck from overheating. Whether you use your 2016+Nissan Titan XD 5.0 for daily driving or as a powerhouse for hauling and towing, you don't want to overlook the importance of installing an upgraded aluminum radiator for your engine. A factory radiator cannot handle the heat that comes along with the immense power and torque potential of your truck. The Mishimoto 2016+Nissan Titan XD 5.0 performance radiator features a lightweight three-row core made of 100-percent brazed aluminum along with strong TIG-welded aluminum end tanks for superior durability and longevity. Included with this 2016+Nissan Titan XD 5.0 radiator is a magnetic drain plug to capture any metallic debris that may accumulate in the cooling system. As with all Mishimoto products, this radiator is covered by Mishimoto's Lifetime Warranty.
