TechSpec Overall Height (in): 30
TechSpec Overall Length (in): 31.7
TechSpec Overall Width (ins): 4.7
TechSpec Core Length (in): 29.4
TechSpec Core Height (in): 26.5
TechSpec Fluid Capacity (gal): 9.25
TechSpec Rows: 2
TechSpec Inlet (in): 1.77
TechSpec Outlet (in): 1.77
TechSpec Core Thickness (in): 2.2
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 2171
TechSpec Material: Aluminum
TechSpec Applications: 1999-2003 Ford F-250 w/ 7.3L Powerstroke Engine--1999-2003 Ford F-350 w/ 7.3L Powerstroke Engine--1999-2003 Ford F-450 w/ 7.3L Powerstroke Engine--1999-2003 Ford F-550 w/ 7.3L Powerstroke Engine--2000-03 Ford Excursion w/ 7.3L Powerstroke Engine
TechSpec Includes: Mishimoto Radiator-- Magnetic Drain Plug--(2) Transmission Adapters--Mishimoto Lifetime Warranty
Features:Direct fit for 1999-2003 Ford trucks equipped with the 7.3L Powerstroke

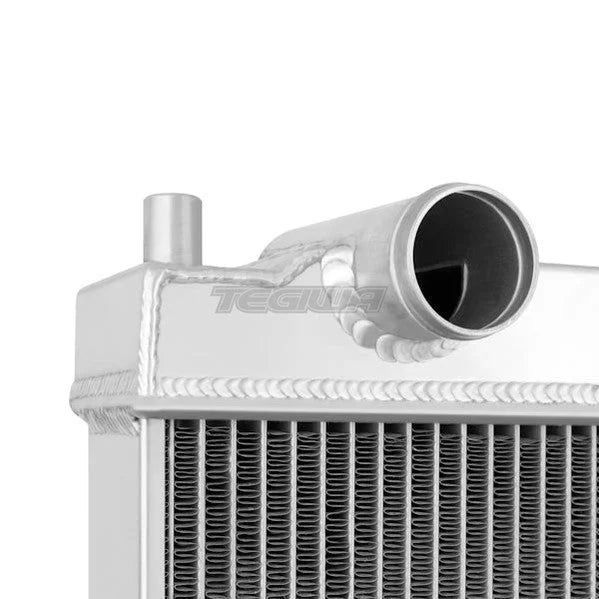

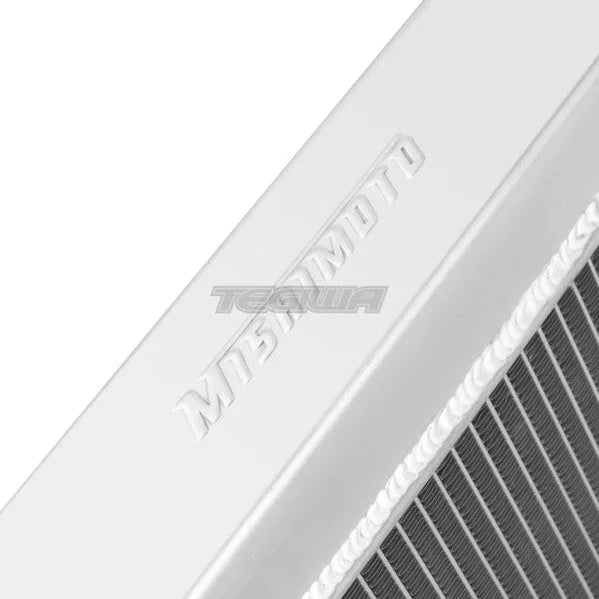

Full aluminum construction with durable, TIG-welded end tanks
Features a two-row, 2.2-in thick brazed aluminum core, providing ideal fluid temperature regulation
Increased fluid capacity and superior heat dissipation
Perfect upgrade to the stock plastic end tank radiator
Ideal for trucks transporting heavy loads, towing, and/or driving in extreme environments
Includes Magnetic Drain
Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty
Install Difficulty: 3

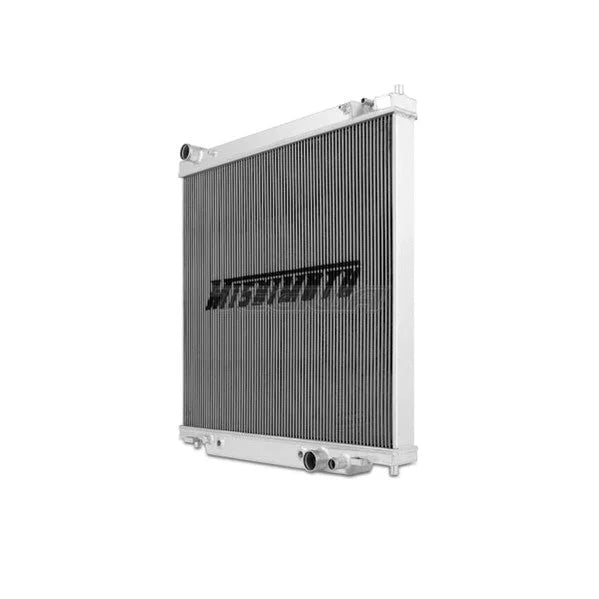

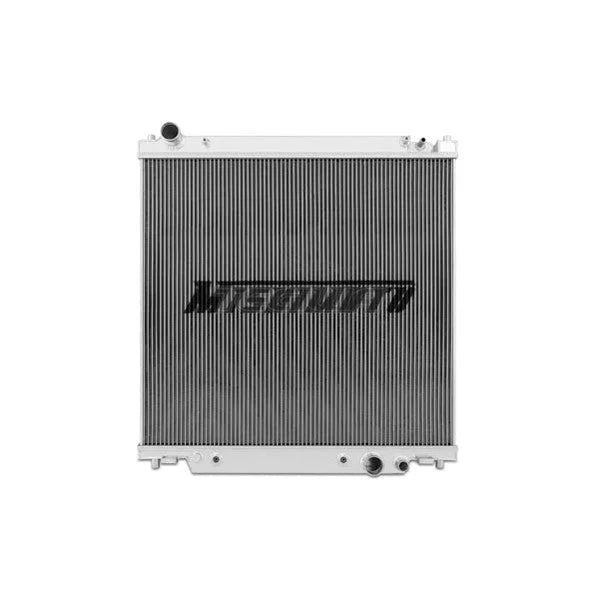

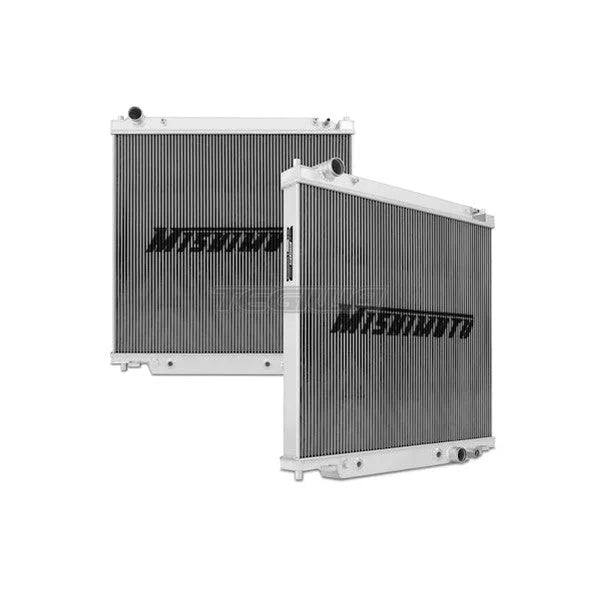

The 7.3 Powerstroke is well known for its reliability and longevity, so why not pair an amazing engine with a radiator that can keep up! Mishimoto has released a performance aluminum radiator for the 1999-2003 Ford 7.3L Powerstroke.The Mishimoto Powerstroke aluminum radiator is an ideal upgrade for your work truck, mud truck, or modified pull truck.Whatever the use of your truck, the Mishimoto radiator will keep your engine cool with its brazed aluminum core and TIG-welded end tanks for superior reliability and performance.The Mishimoto 7.3L radiator is precision engineered for exact factory fitment it bolts right up to the stock fan shroud, allowing for easy installation.Included with the Mishimoto Powerstroke aluminum radiator is our magnetic drain plug and signature lifetime warranty.
