TechSpec Overall Height (in): 28.7
TechSpec Overall Length (in): 45.7
TechSpec Overall Width (ins): 8.9
TechSpec Core Length (in): 27.48
TechSpec Core Height (in): 37.01
TechSpec Fluid Capacity (gal): 8.36
TechSpec Rows: 2
TechSpec Core Thickness (in): 2.76
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 13022
TechSpec Material: Aluminum
TechSpec Applications: 2008-2010 Ford F-250 w/ 6.4L Powerstroke--2008-2010 Ford F-350 w/ 6.4L Powerstroke--2008-2010 Ford F-450 w/ 6.4L Powerstroke--2008-2010 Ford F-550 w/ 6.4L Powerstroke
TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug w/ Dowty Oil Seal--(2) Rubber Mounting Pegs--(8) M6 x 1.0 x 14mm Bolts--Mishimoto Lifetime Warranty
Direct fit for the 6.4L Powerstroke
Incorporates co-molded aluminum/rubber mounting pegs to reduce the truck’s torque transfer to the radiator
Internally strutted tubes for increased strength against high pressure and temperature
Strengthened top and bottom core support plates prevent core torquing and bending
Inlet and outlet have CNC-machined factory-style quick-disconnects
100-percent brazed aluminum core
TIG-welded to perfection
Includes magnetic drain plug
Patent numberD717,702
Mishimoto Lifetime Warranty
Install Difficulty: 3

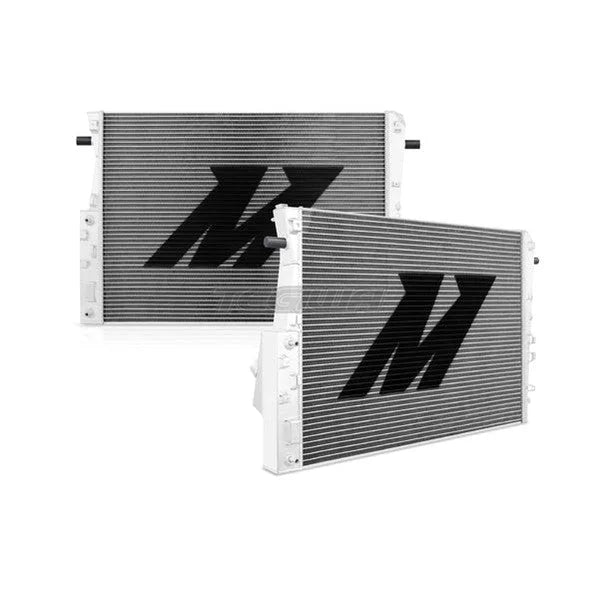

The 6.4L Ford Powerstroke is plagued with radiator and cooling issues, with no effective solution available. Upgrade your truck with the Mishimoto 6.4L Powerstroke aluminum radiator to put an end to puddles of coolant under your truck. Mishimoto radiators are constructed from high-quality aircraft-grade aluminum with a 100-percent brazed aluminum core. Our 6.4L radiator features strong TIG-welded aluminum end tanks for superior durability and longevity that will keep your Powerstroke on the road and out of the shop. The Mishimoto performance radiator retains factory fitment for an easy installation process and includes a magnetic drain plug to catch any debris in your cooling system. As with all our products, this radiator is protected by the Mishimoto lifetime warranty.
