TechSpec Overall Height (in): 34.7
TechSpec Overall Length (in): 29.9
TechSpec Overall Width (ins): 4.5
TechSpec Core Length (in): 29.06
TechSpec Core Height (in): 28.54
TechSpec Fluid Capacity (gal): 7.76
TechSpec Rows: 2
TechSpec Inlet (in): 1.77
TechSpec Outlet (in): 1.97
TechSpec Core Thickness (in): 1.88
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 2741
TechSpec Material: Aluminum
TechSpec Applications: 2003-2007 Ford F-250 w/ 6.0L Powerstroke--2003-2007 Ford F-350 w/ 6.0L Powerstroke--2003-2007 Ford F-450 w/ 6.0L Powerstroke
TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug w/ Dowty Oil Seal--Mishimoto Lifetime Warranty
Features:Direct fit for 2003-2007 Ford trucks equipped with the 6.0L Powerstroke
Full aluminum construction with durable, TIG-welded end tanks
Two-row, 1.88-in thick brazed aluminum core, providing ideal fluid temperatures
Increased fluid capacity and superior heat dissipation
Perfect upgrade to the factory plastic end tank radiator
Ideal for trucks transporting heavy loads, towing, and/or driving in extreme environments

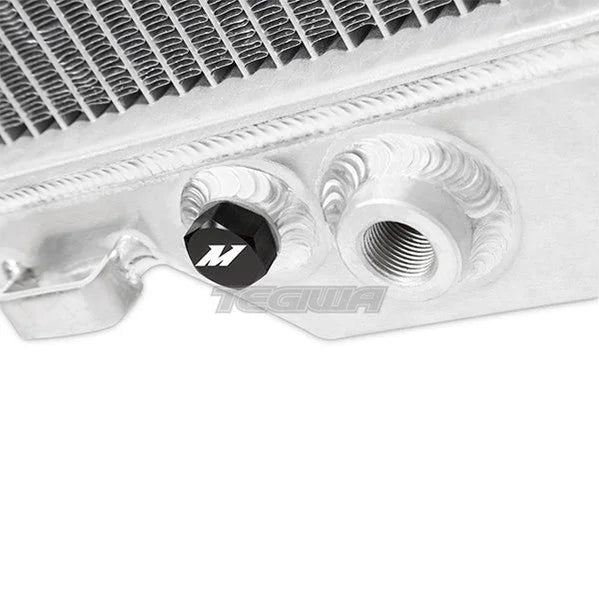

Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty
Install Difficulty: 3

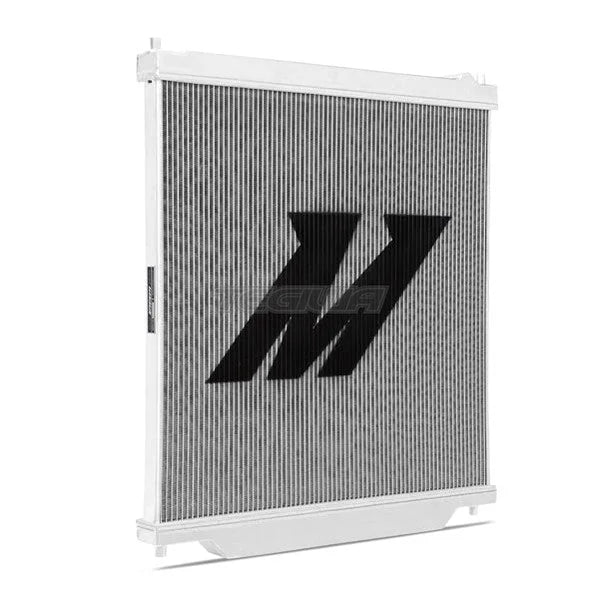

Mishimoto has released a direct-fit performance aluminum radiator for the 2003-2007 Ford 6.0L Powerstroke. The Mishimoto performance aluminum radiator for the Ford 6.0L is the ideal upgrade for the factory radiator. This radiator is designed and engineered to maximize cooling efficiency, boost engine functions, and protect your truck from overheating. Whether you use your truck for daily driving or as a powerhouse for hauling and towing, you don't want to overlook the importance of installing an upgraded radiator for your high-performance diesel. The Mishimoto 6.0L Powerstroke Radiator features a lightweight two-row core made of 100-percent brazed aluminum, and it features strong TIG-welded aluminum end tanks for superior durability and longevity. Every Mishimoto performance radiator is a direct factory fit, making installation effortless with no cutting or modification required. As with all our products, this radiator is protected by the Mishimoto Lifetime Warranty.
