TechSpec Overall Height (in): 35.5
TechSpec Overall Length (in): 30.5
TechSpec Overall Width (ins): 5.63
TechSpec Core Length (in): 27
TechSpec Core Height (in): 28.1
TechSpec Fluid Capacity (gal): 6.39
TechSpec Rows: 2
TechSpec Inlet (in): 2
TechSpec Outlet (in): 2
TechSpec Core Thickness (in): 1.34
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 2711
TechSpec Material: Aluminum
TechSpec Applications: Dodge Ram 2500 I6 (5.9L) 2003-2007--Dodge Ram 2500 I6 (6.7L) 2007-2009--Dodge Ram 3500 I6 (5.9L) 2003-2007--Dodge Ram 3500 I6 (6.7L) 2007-2009--Dodge Ram 4500 I6 (6.7L) 2008-2009--Dodge Ram 5500 I6 (6.7L) 2008-2009
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:Direct fit for the 2003-2009 Dodge 5.9L/6.7L Cummins
Full aluminum construction including durable, TIG-welded end tanks
Features a two-row, efficient brazed aluminum core
Increased fluid capacity and optimal heat dissipation
Provides efficient temperature reduction for towing, hauling, or during aggressive driving conditions
Efficient temperature regulation for both stock and modified trucks
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty
Install Difficulty: 3

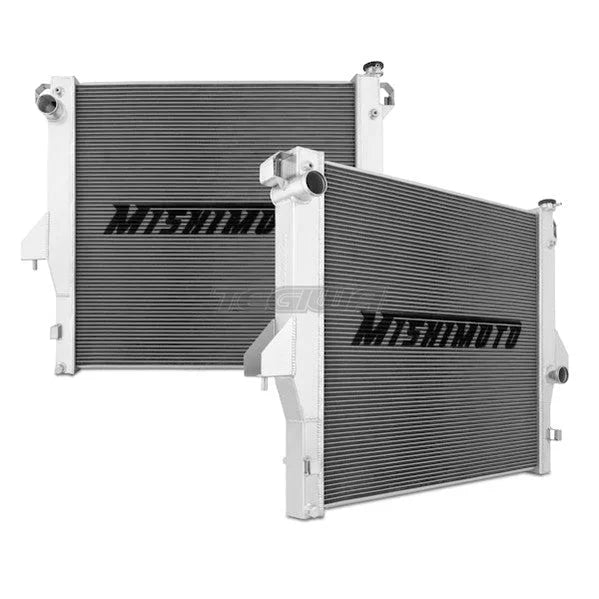

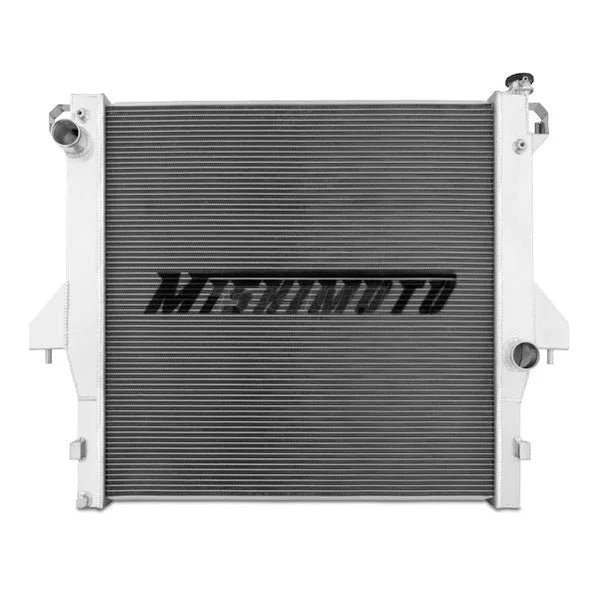

Mishimoto has developed a performance aluminum radiator for the Dodge 5.9L/6.7L Cummins Engine.The Mishimoto performance aluminum radiator for the Dodge Ram is the ideal upgrade for the factory radiator.It was designed and engineered to maximize cooling efficiency, boost engine functions, and protect your truck from overheating.Whether you use your Dodge Ram for daily driving or as a powerhouse for hauling and towing, you don't want to overlook the importance of installing an upgraded radiator for your engine.A factory radiator cannot handle the heat that comes along with immense power and torque.The Mishimoto Dodge Ram radiator features a lightweight two-row core made of 100-percent brazed aluminum, and it features strong TIG-welded aluminum end tanks for superior durability and longevity.Every Mishimoto performance radiator is a direct factory fit, making installation effortless with no cutting or modification required.Included with the Mishimoto Cummins aluminum radiator is our magnetic drain plug and signature lifetime warranty.
