TechSpec Overall Height (in): 24.8
TechSpec Overall Length (in): 45.1
TechSpec Overall Width (ins): 5.9
TechSpec Core Length (in): 33.86
TechSpec Core Height (in): 23.54
TechSpec Fluid Capacity (gal): 6.09
TechSpec Rows: 2
TechSpec Inlet (in): 1.81
TechSpec Core Thickness (in): 2.21
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 2857
TechSpec Material: Aluminum
TechSpec Applications: 2006-2010 Chevrolet Silverado 2500 HD w/ 6.6L Duramax LBZ/LMM--2006-2010 Chevrolet Silverado 3500 HD w/ 6.6L Duramax LBZ/LMM--2006-2010 GMC Sierra 2500 HD w/ 6.6L Duramax LBZ/LMM--2006-2010 GMC Sierra 3500 HD w/ 6.6L Duramax LBZ/LMM
Note: This radiator was designed to fit with the most updated lower hose from Chevrolet/GMC with a larger O-ring. 2006-2007 model-year owners will need to purchase the Mishimoto radiator hose kit or the 2008-2010 OEM lower hose (part #25841843) from Chevrolet/GMC.
TechSpec Includes: Mishimoto Radiator-- Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:Direct fit for 2006-2010 Chevrolet/GMC trucks equipped with the 6.6L Duramax
Full aluminum design with durable, TIG-welded construction
Features a two-row, 2.21-in thick brazed aluminum core, providing ideal fluid temperatures on the street or track

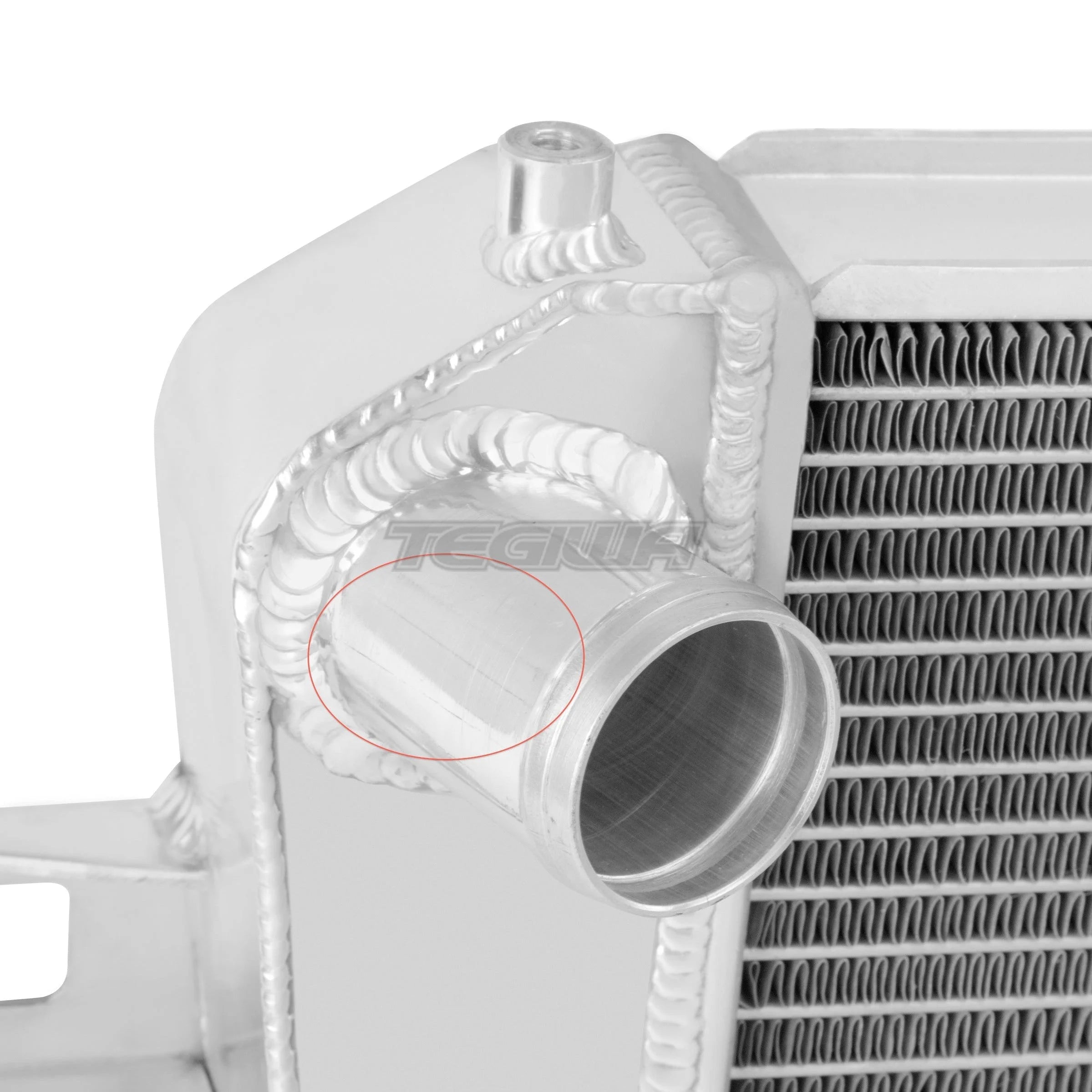

Features a CNC-machined quick disconnect outlet for use with the stock hose connection
Ideal replacement for an aged, clogged, or leaking stock radiator
Efficient fluid temperature reduction and superior heat dissipation makes this radiator ideal for use when hauling, towing, and/or in warm climates
Includes Magnetic Drain
Plug to capture any metallic debris/fragments in your cooling system

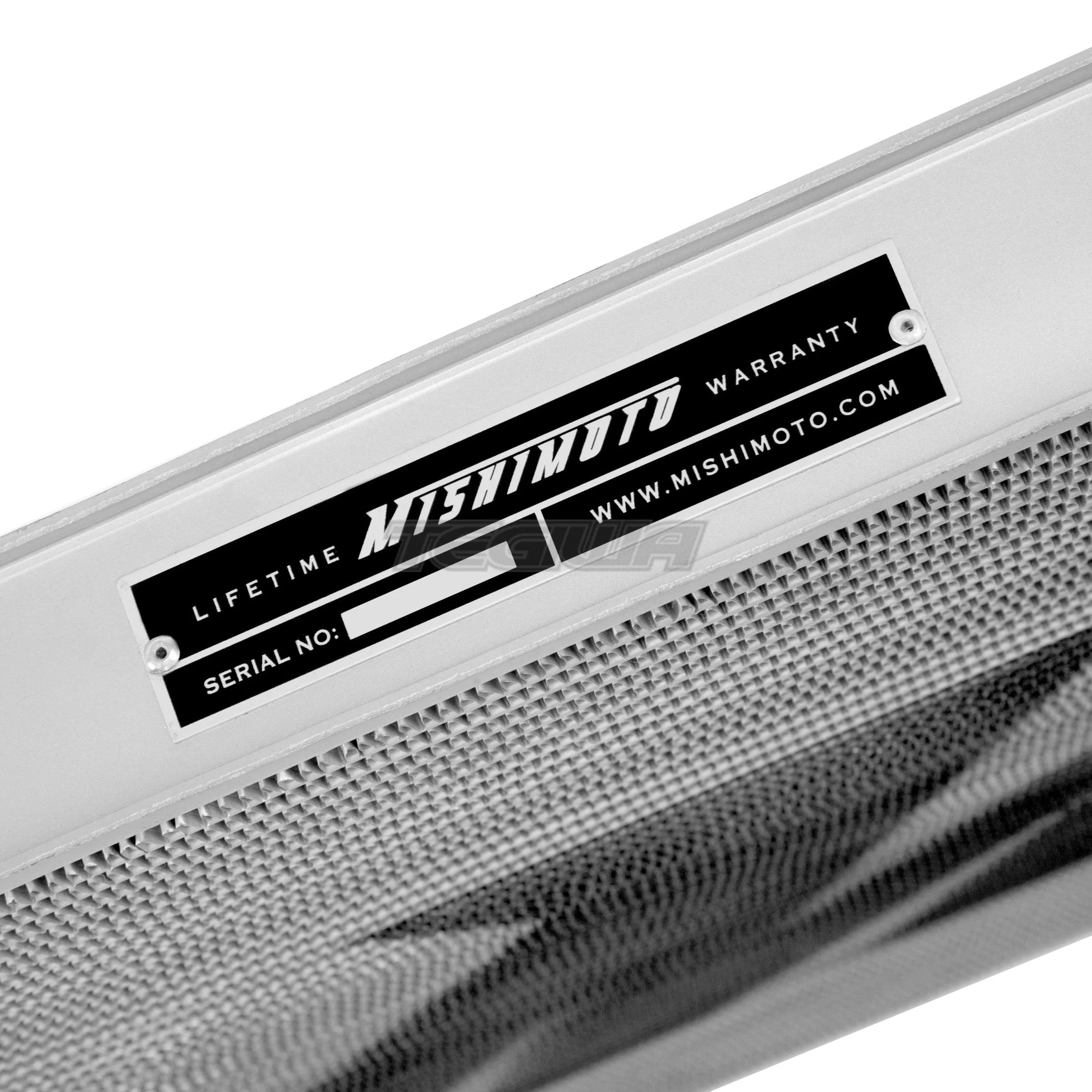

Mishimoto Lifetime Warranty
Install Difficulty: 5

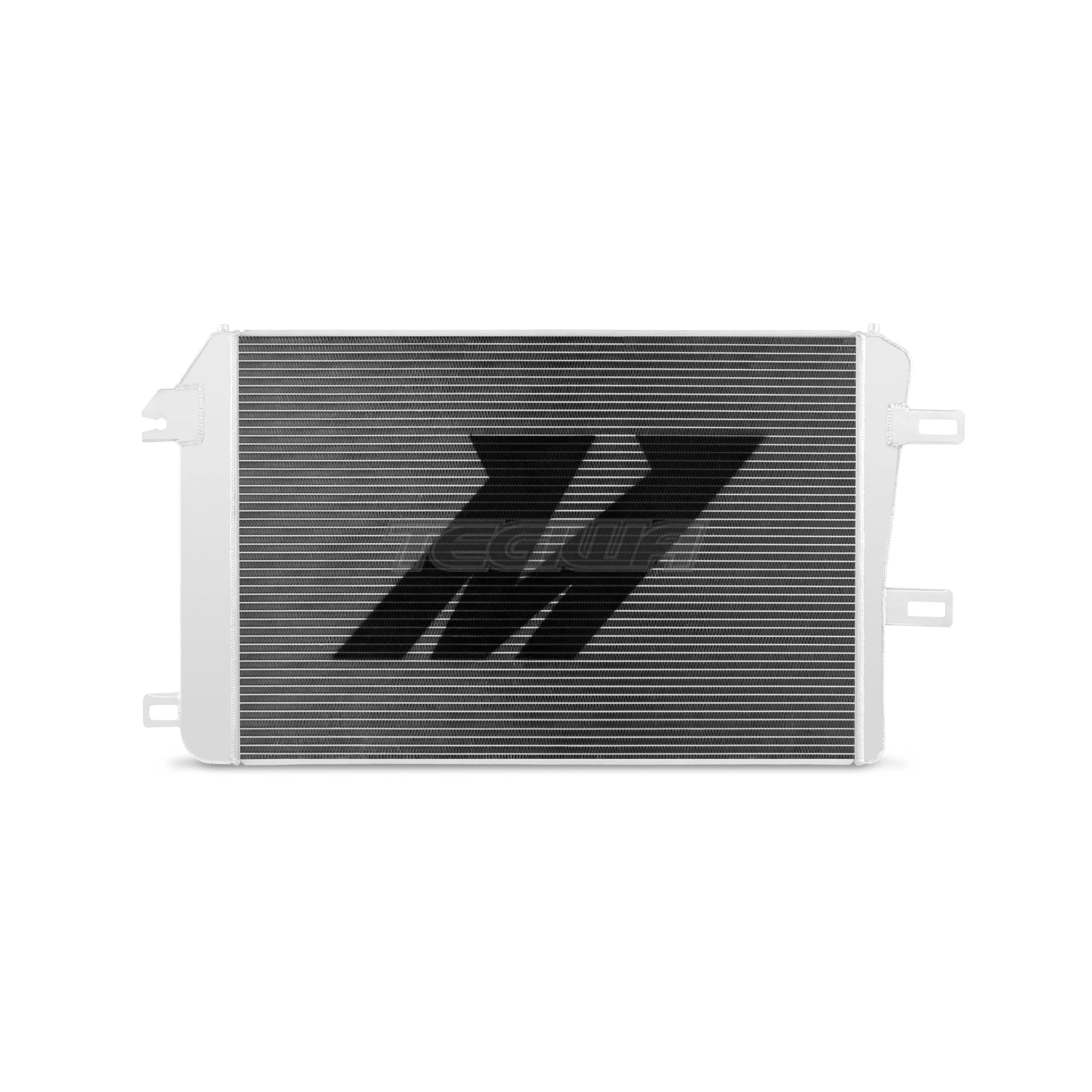

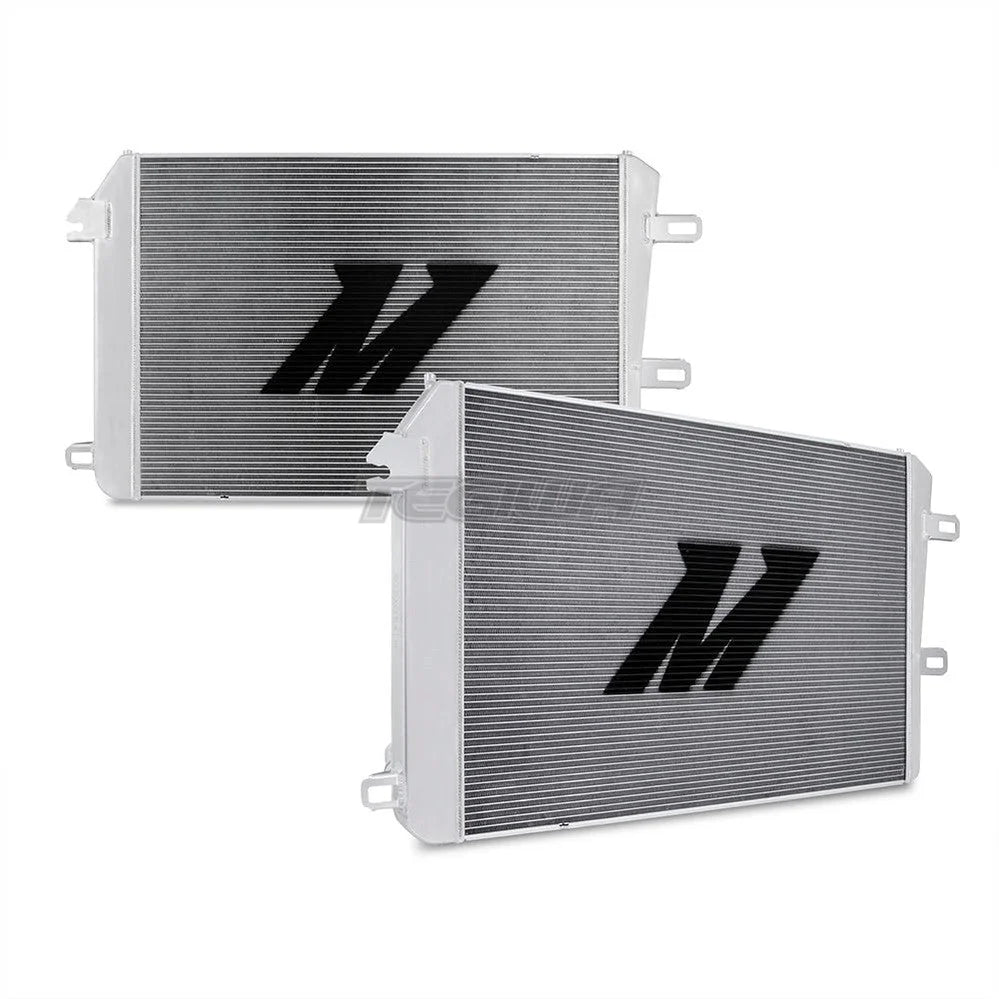

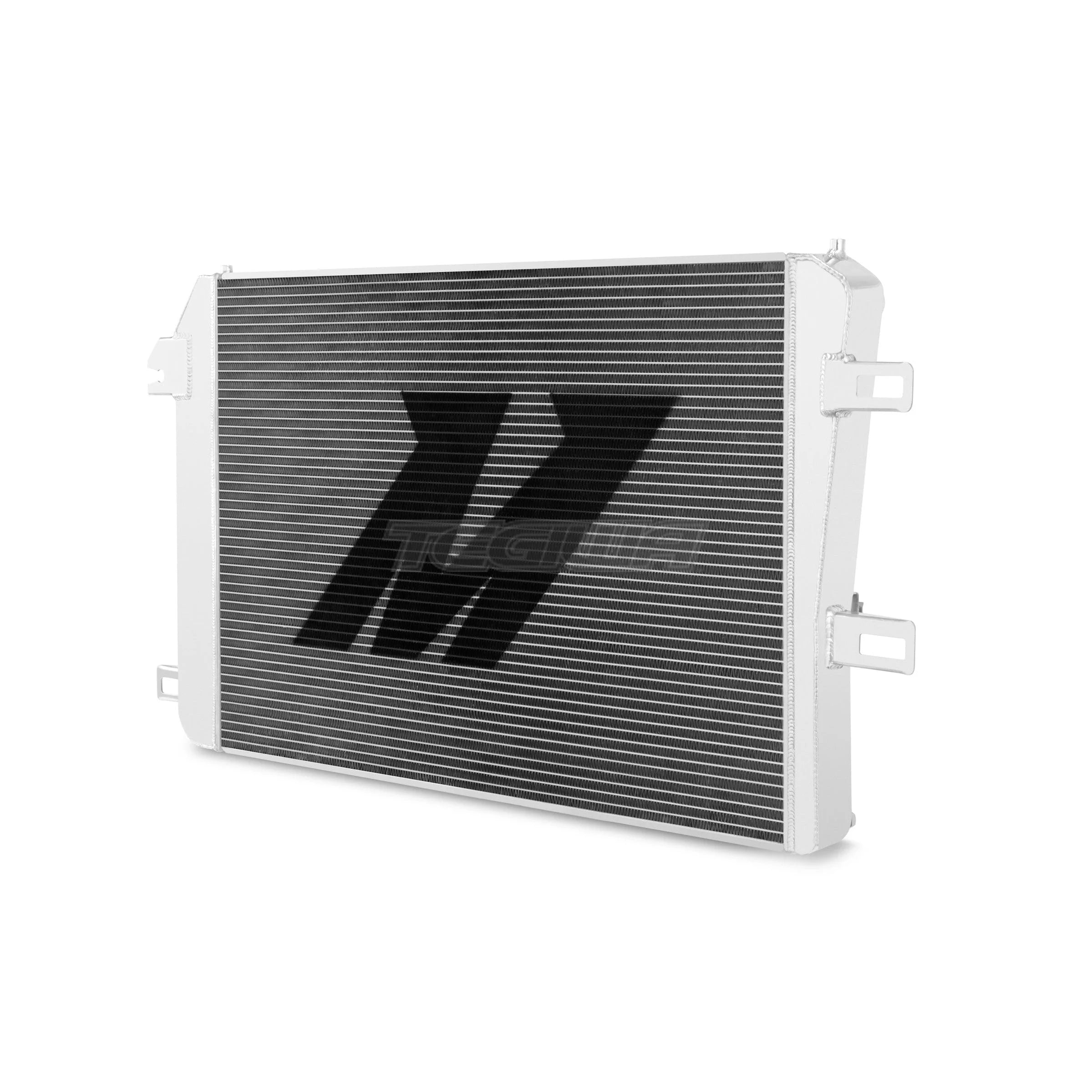

Mishimoto has released a direct-fit performance aluminum radiator for the 2006-2010 Chevrolet/GMC 6.6L Duramax.Mishimoto performance radiators are manufactured from high-quality aircraft-grade aluminum with a 100-percent brazed aluminum core and polished end tanks.The Mishimoto 6.6L Duramax performance radiator offers increased cooling efficiency, and the all-aluminum TIG-welded construction provides a rugged design that can take the abuse of any environment or terrain.Pair your Mishimoto 6.6L Duramax aluminum radiator with our silicone coolant hose kit for the ultimate in cooling performance and reliability.The Mishimoto 6.6L Duramax aluminum radiator retains factory fitment and requires no modification to your truck.Whether you use your Duramax for tearing up the drag strip or working at the job site, you can trust the Mishimoto performance radiator to keep your truck cool.As with all our products, this radiator is protected by the Mishimoto lifetime warranty.
