TechSpec Overall Height (in): 25.5
TechSpec Overall Length (in): 17.2
TechSpec Overall Width (ins): 3.9
TechSpec Core Length (in): 18.2
TechSpec Core Height (in): 17.5
TechSpec Rows: 3
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.8
TechSpec Core Thickness (in): 2
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Material: Aluminum
TechSpec Applications: 1987-2004 Jeep Wrangler with Chevrolet V8 Engine Swap
TechSpec Engine Codes: 350ci (5.7L) V8
Note: xThis radiator may not fit some vehicles equipped with power steering from the factory.----Transmission Cooler Thread Info:--On Radiator: Female M16 x 1.5--Sealing Face: 70--Hose Fitting: 22mm Hex, 8mm OD
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:All-aluminum construction with durable, TIG-welded end tanks
Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
3-row core
Increased coolant capacity and superior heat dissipation
Billet aluminum fill neck
Brazed aluminum core
Includes magnetic drain plug to capture metallic debris and fragments in cooling system
Mishimoto Lifetime Warranty

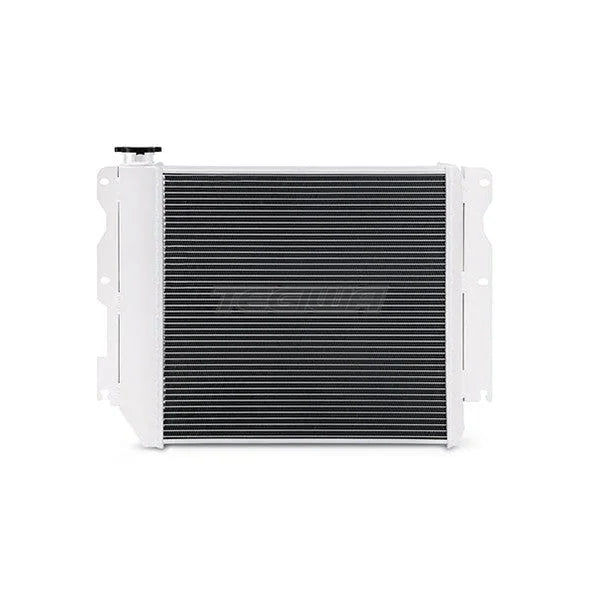

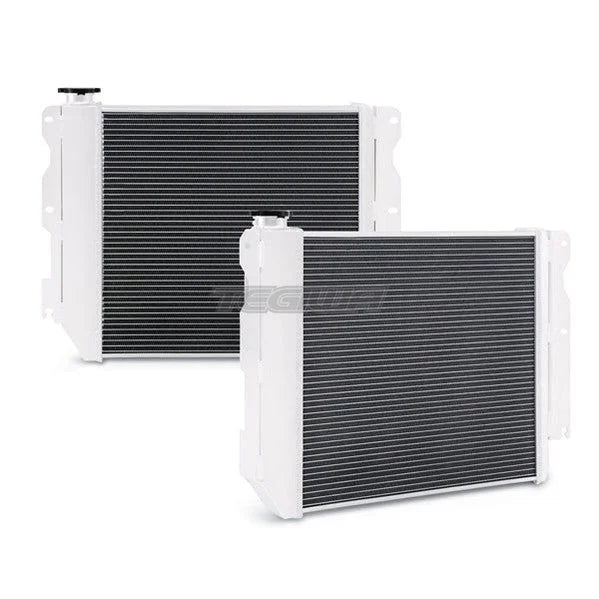

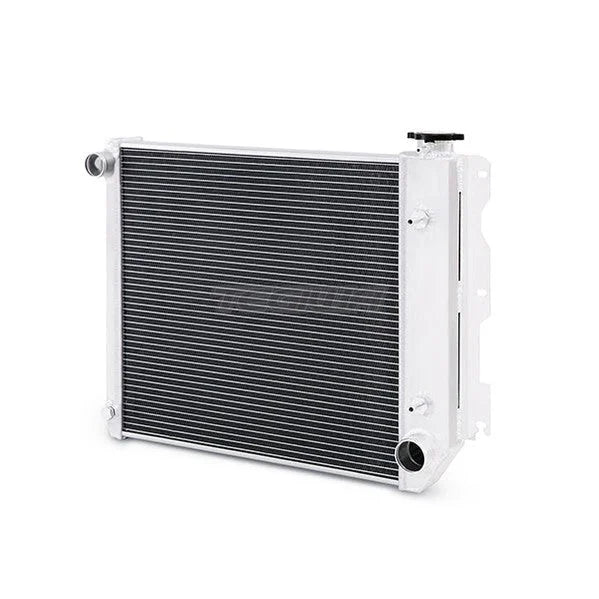

Performance Jeeps deserve Jeep performance parts. An ideal upgrade for your modified Jeep LS swap, this 1987--2004 Jeep Wrangler Performance Aluminum Radiator is designed to handle the additional cooling needs of your Jeep Wrangler V8 swap. Whether you use your Jeep LS swap for daily driving or hit the trail on the weekends, many people overlook the importance of installing an upgraded radiator in their engine. The Mishimoto Jeep Wrangler with a Chevy V8 Engine Swap X-Line Aluminum Radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This performance aluminum radiator also includes a Magnetic Drain Plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, this Jeep LS swap radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
