TechSpec Overall Height (in): 20
TechSpec Overall Length (in): 22.75
TechSpec Overall Width (ins): 5.1
TechSpec Core Length (in): 19.4
TechSpec Core Height (in): 17.1
TechSpec Fluid Capacity (gal): 4.99
TechSpec Rows: 3
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.5
TechSpec Core Thickness (in): 2
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 180
TechSpec Material: Aluminum
TechSpec Applications: 1958-1984 Toyota Land Cruiser FJ40 (3.9L V6, 4.2L V6)--1958-1980 Toyota Land Cruiser (3.9L V6, 4.2L V6)
TechSpec Engine Codes: (3.9L) V6--(4.2L) V6
Note: Transmission Cooler Thread Info:--On Radiator: Female 1/4-inch BSPP

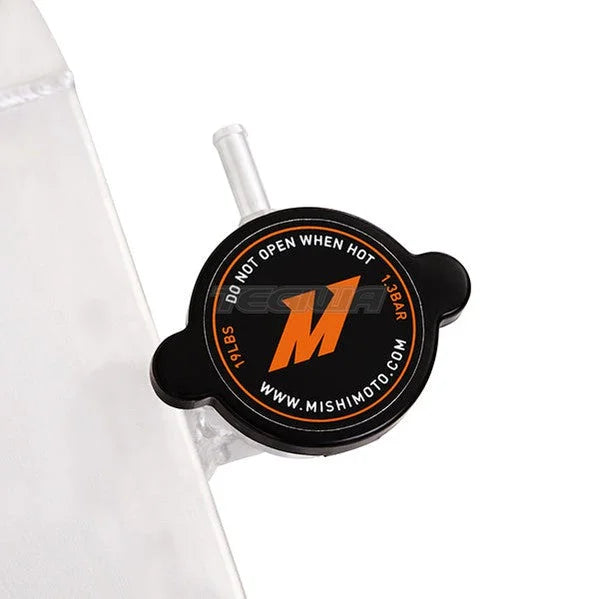

TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:All-aluminum construction with durable, TIG-welded end tanks
Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
3-row core
Increased coolant capacity and superior heat dissipation
Billet aluminum fill neck
Brazed aluminum core
Includes magnetic drain plug to capture metallic debris and fragments in cooling system
Mishimoto Lifetime Warranty

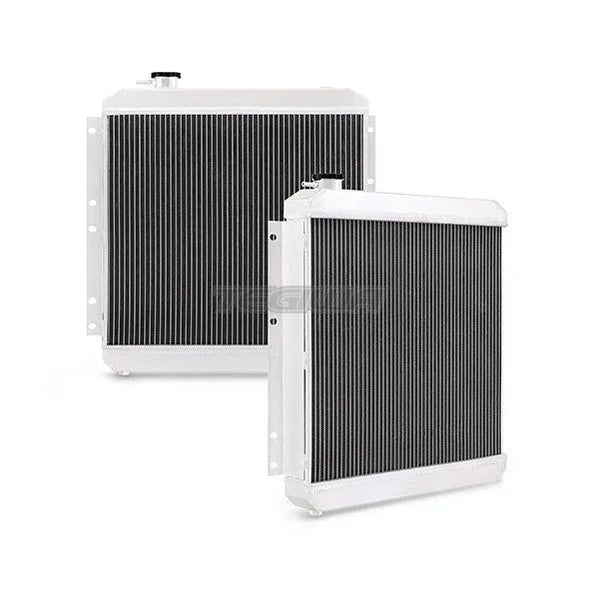

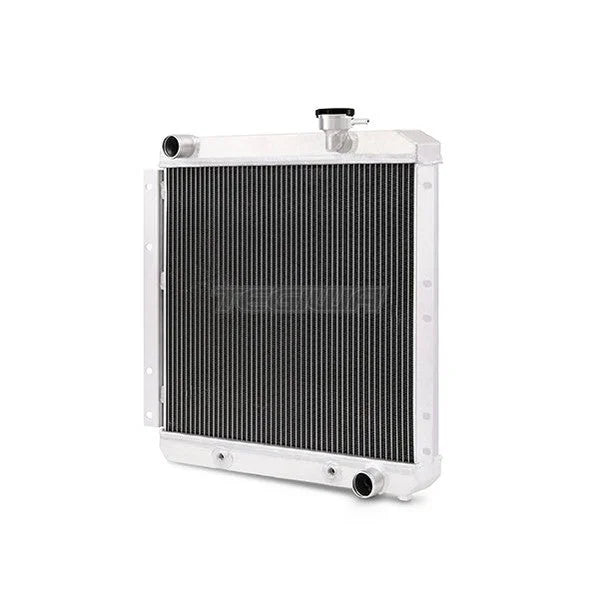

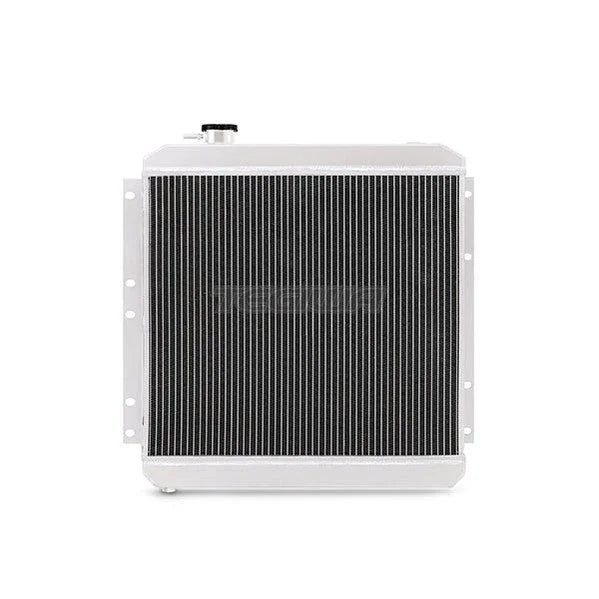

If you're looking to upgrade your Toyota FJ40 parts, look no further! The Mishimoto 1958--1984 Toyota Land Cruiser FJ40 radiator is an ideal upgrade for the brittle stock radiator, and provides your Cruiser with enhanced reliability and improved cooling efficiency. The Mishimoto FJ40 radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This Land Cruiser radiator also includes a Magnetic Drain Plug, which effectively removes metal fragments circulating in the cooling system. As with every Mishimoto aluminum radiator, this FJ40 radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
