TechSpec Overall Height (in): 25
TechSpec Overall Length (in): 26.2
TechSpec Overall Width (ins): 5.5
TechSpec Core Length (in): 22.8
TechSpec Core Height (in): 20.3
TechSpec Rows: 3
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.8
TechSpec Core Thickness (in): 2
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Material: Aluminum
TechSpec Applications: 1953-1956 Ford Truck (w/ Chevrolet V8 conversion)
Note: Transmission Cooler Thread Info:--On Radiator: Female 1/4-inch BSPP--Fitting: 19mm Hex, 9mm OD

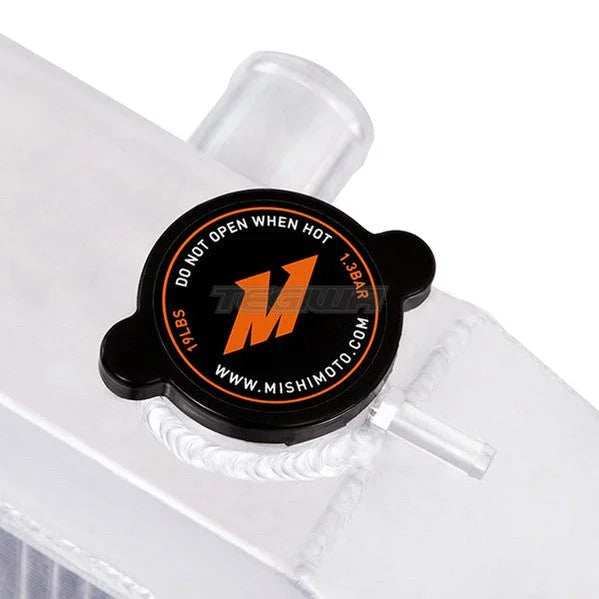

TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:All-aluminum construction with durable, TIG-welded end tanks
Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
3-row core
Increased coolant capacity and superior heat dissipation
Billet aluminum fill neck
Brazed aluminum core
Includes magnetic drain plug to capture metallic debris and fragments in cooling system
Mishimoto Lifetime Warranty

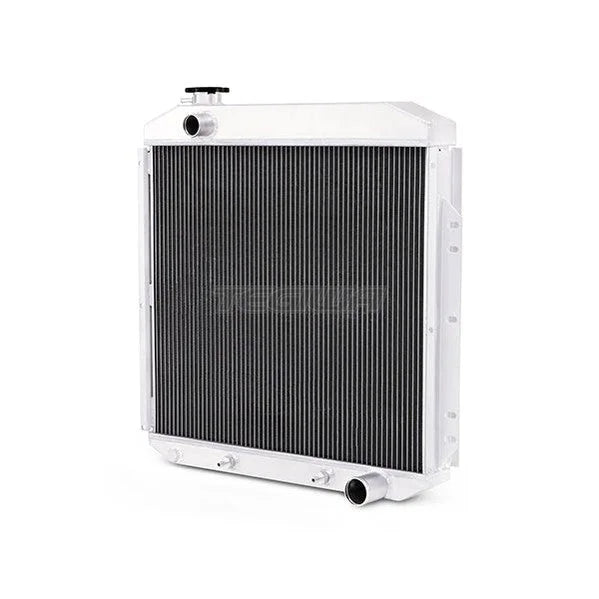

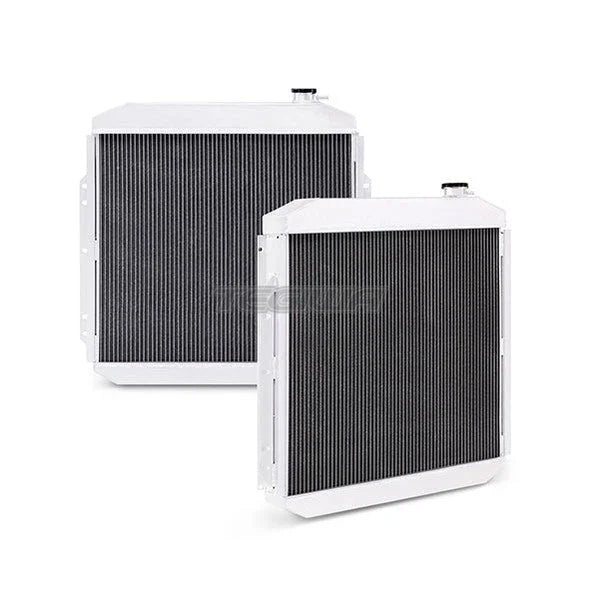

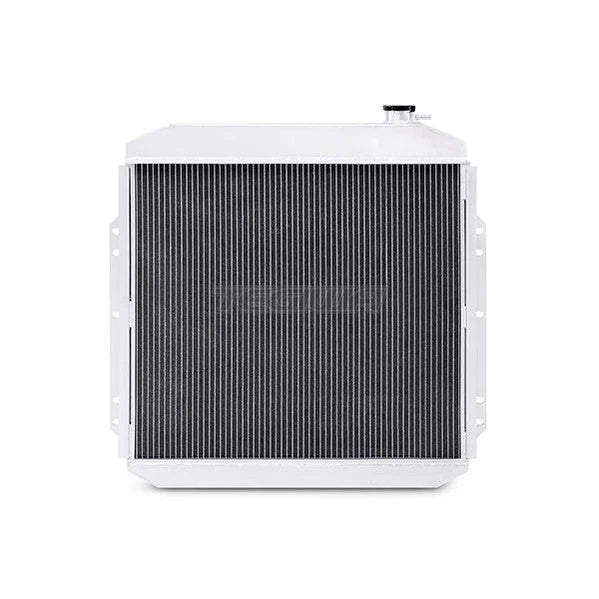

An ideal upgrade for your modified classic, this 1953--1956 Ford F-Series Performance Aluminum Radiator is designed to handle the additional cooling needs of your swapped Chevrolet V8. Whether you use your classic for daily driving or use it to cruise on the weekends, many people overlook the importance of installing an upgraded radiator in their engine. A stock radiator cannot handle the heat that comes along with having a great deal of horsepower. The Mishimoto Ford F-Series X-Line Aluminum Radiator is manufactured using durable aircraft-quality aluminum end tanks precision TIG-welded, to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This performance radiator also includes a Magnetic Drain Plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, this radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
