TechSpec Overall Height (in): 25.4
TechSpec Overall Length (in): 21.5
TechSpec Overall Width (ins): 5.1
TechSpec Core Length (in): 24
TechSpec Core Height (in): 16.4
TechSpec Fluid Capacity (gal): 5.67
TechSpec Rows: 3
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.75
TechSpec Core Thickness (in): 2.5
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 379
TechSpec Material: Aluminum
TechSpec Applications: 1968-1970 Ford Mustang--1968-70 Mercury Cougar
TechSpec Engine Codes: 390ci (6.4L) V8--428ci (7.0L) V8--429ci (7.0L) V8
Note: Transmission Cooler Thread Info:--On Radiator: Female 1/8-inch-27NPT
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:All-aluminum construction provides greater heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
3-row core
Increased coolant capacity directly results in better cooling efficiency and reduced engine temperatures
Includes an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
Billet aluminum fill neck
Brazed aluminum core with TIG-welded end tanks
Includes magnetic drain plug
Mishimoto Lifetime Warranty

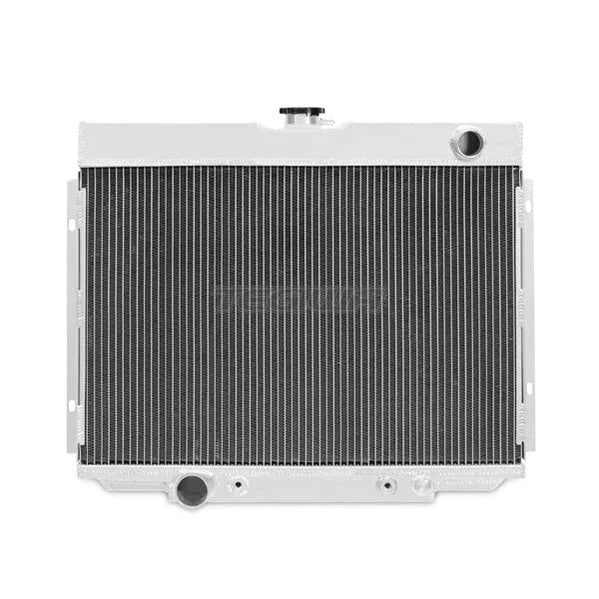

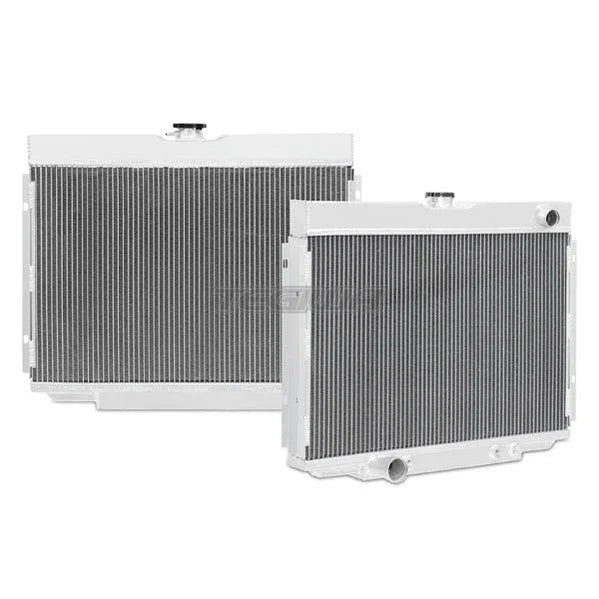

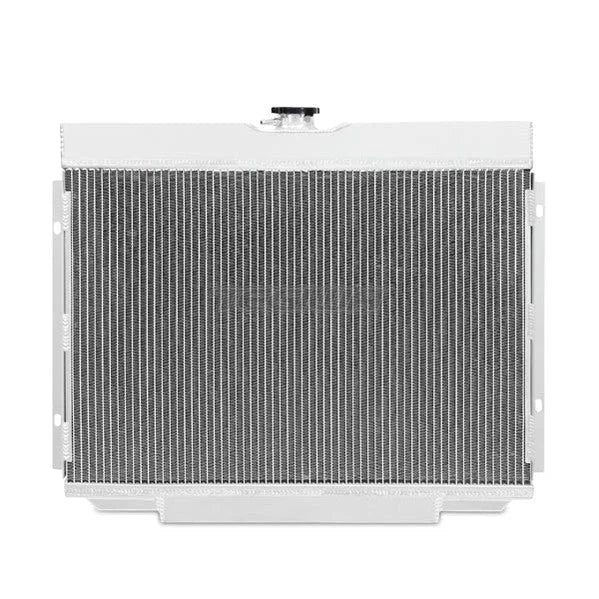

If you're looking to upgrade your classic Mustang parts, look no further. The Mishimoto 1968--1970 Ford Mustang Big Block X-Line Performance Aluminum Radiator provides your car with enhanced reliability, improved cooling efficiency, and is an ideal upgrade for the brittle stock radiator. Whether you use your classic for daily driving or take it to the track, many people overlook the importance of installing an upgraded radiator in their engine. A stock radiator cannot handle the heat that comes along with having a great deal of horsepower. The Mishimoto Ford Mustang Big Block X-Line Aluminum Radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This 1968--1970 Mustang performance radiator also includes a Magnetic Oil Drain Plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, this 1968--1970 Mustang radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
