TechSpec Overall Height (in): 22.5
TechSpec Overall Length (in): 21
TechSpec Overall Width (ins): 5.4
TechSpec Core Length (in): 16.06
TechSpec Core Height (in): 19.6
TechSpec Fluid Capacity (gal): 4.24
TechSpec Rows: 3
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.75
TechSpec Core Thickness (in): 2.45
TechSpec Drain Plug Thread Size: 1/4- 18 NPT
TechSpec DPI: 340
TechSpec Material: Aluminum
TechSpec Applications: 1967-1969 Ford Mustang 289ci (4.7L) V8, 302 ci (4.9L) V8, 351ci (5.8L) V8--1967-1969 Ford Mustang Shelby GT350 302 ci (4.9L) V8, 351ci (5.8L) V8--1969 Ford Mustang Boss 302 302ci (4.9L) V8--1967-1969 Mercury Cougar 289ci (4.7L) V8, 302 ci (5.0L) V8, 351ci (5.8L) V8
TechSpec Engine Codes: 289ci (4.7L) V8--302ci (4.9L) V8--351ci (5.8L) V8
Note: Transmission cooler port thread pitch: 1/8-inch-27 NPT----The standard length water pump may cause fitment issues when installing this radiator with the MMFS-MUS-67 fan shroud combination. Mishimoto recommends installing a short neck water pump and pulley to avoid any clearance issues
TechSpec Includes: Mishimoto Radiator-- Mishimoto Radiator Cap-- Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:All-aluminum construction provides increased heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
3-row brazed aluminum core

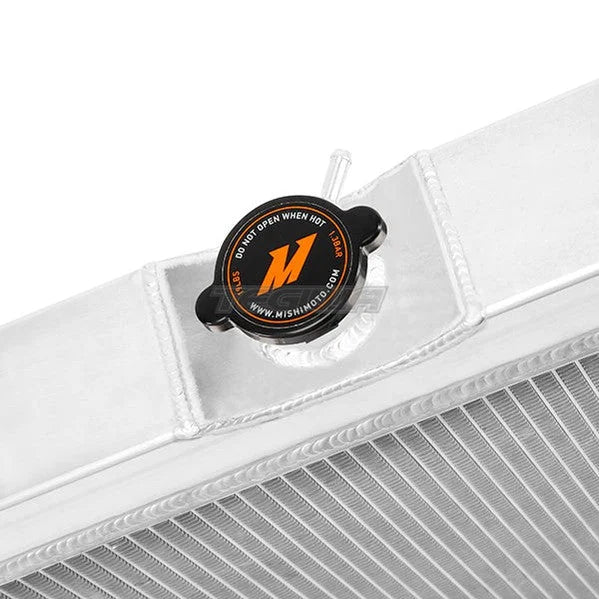

Billet aluminum fill neck
Increased coolant capacity directly results in better cooling efficiency and reduced engine temperatures
Includes an internal transmission cooler to ensure optimal fluid temperatures for automatic transmissions
Includes magnetic drain plug
Mishimoto Lifetime Warranty

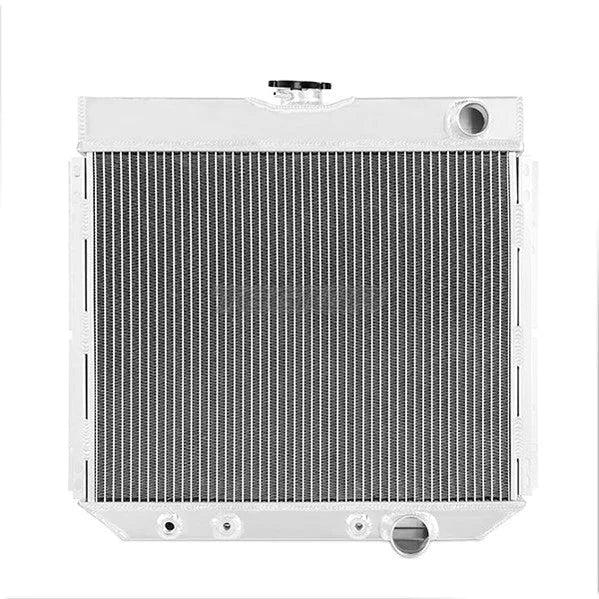

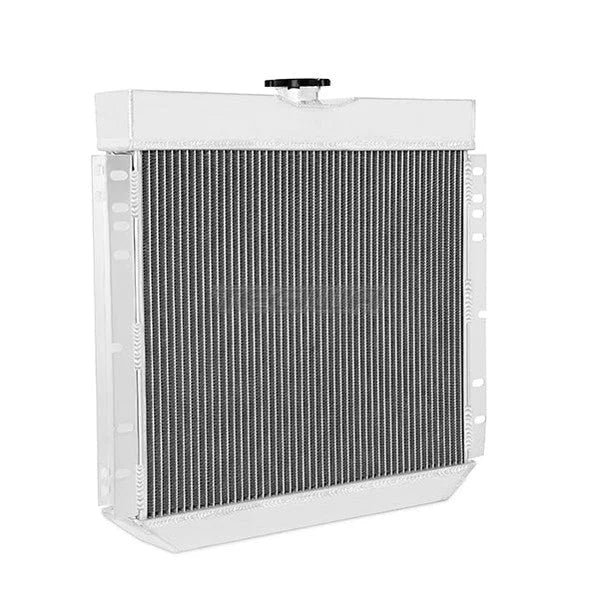

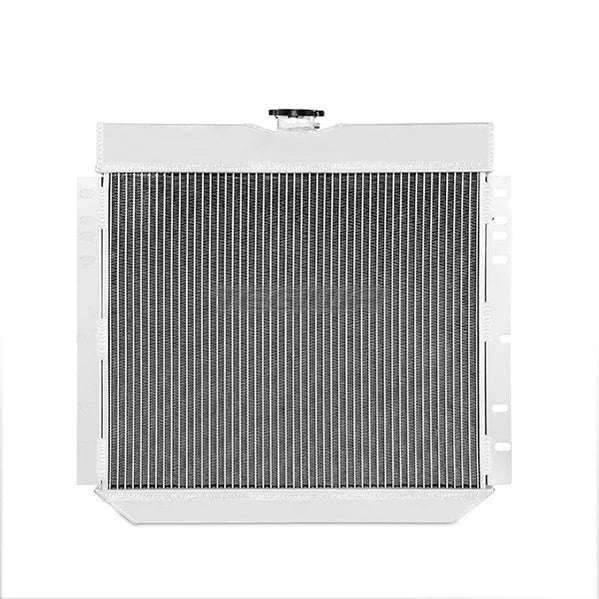

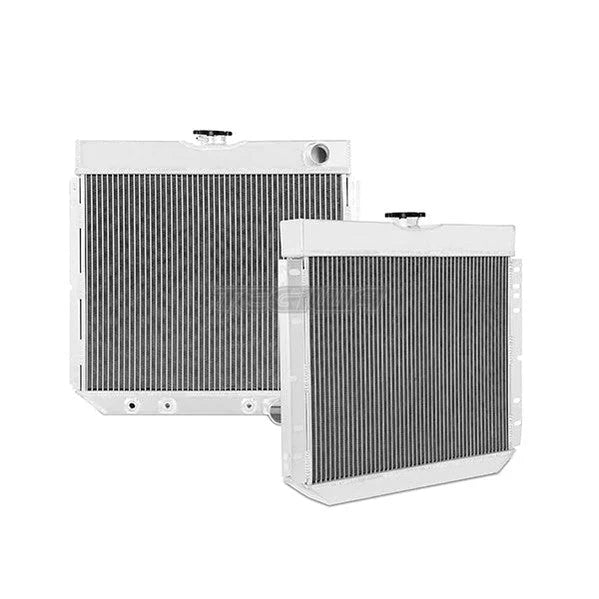

An ideal upgrade for the brittle stock radiator, the Mishimoto 1967--1969 Ford Mustang X-Line Performance Aluminum Radiator provides your car with enhanced reliability and improved cooling efficiency. Whether you want an all-aluminum 1968 Mustang radiator for daily driving or the extra cooling power from a 3-row 1968 Mustang radiator to take to the track, don't overlook the importance of installing an upgraded radiator in your engine. A stock classic Mustang radiator cannot handle the heat that comes along with impressive horsepower. This classic Mustang radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. Each classic car radiator also includes a magnetic oil drain plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, every classic car radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
