TechSpec Overall Height (in): 29.5
TechSpec Overall Length (in): 24
TechSpec Overall Width (ins): 5.4
TechSpec Core Length (in): 25.9
TechSpec Core Height (in): 18.9
TechSpec Fluid Capacity (gal): 5.07
TechSpec Rows: 3
TechSpec Inlet (in): 1.75
TechSpec Outlet (in): 2
TechSpec Core Thickness (in): 2.5
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 433
TechSpec Material: Aluminum
TechSpec Applications: 1970-1979 Ford F-100 300ci (5.0L) V8, 352ci (5.8L) V8, 360ci (5.9L) V8, 390ci (6.4L) V8, 400ci (6.6L) V8--1978-1979 Ford Bronco 351ci (5.8L) V8, 400ci (6.6L) V8
TechSpec Engine Codes: 300ci (5.0L) V8--351ci (5.8L) V8--352ci (5.8L) V8--360ci (5.9L) V8--390ci (6.4L) V8--400ci (6.6L) V8
Note: Transmission Cooler Thread Info:--On Radiator: Female 1/4-inch-18NPT

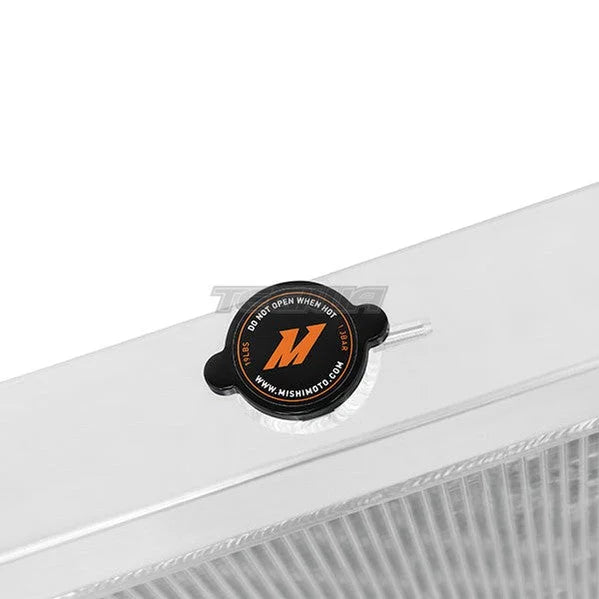

TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:All-aluminum construction featuring high-quality, durable TIG-welding
3-row core
Features an internal transmission cooler to ensure optimal fluid temperatures for automatic transmissions
Increased coolant capacity and optimal heat dissipation
Billet aluminum fill neck
Brazed aluminum core
Includes magnetic drain plug to capture metallic debris and fragments in cooling system
Mishimoto Lifetime Warranty

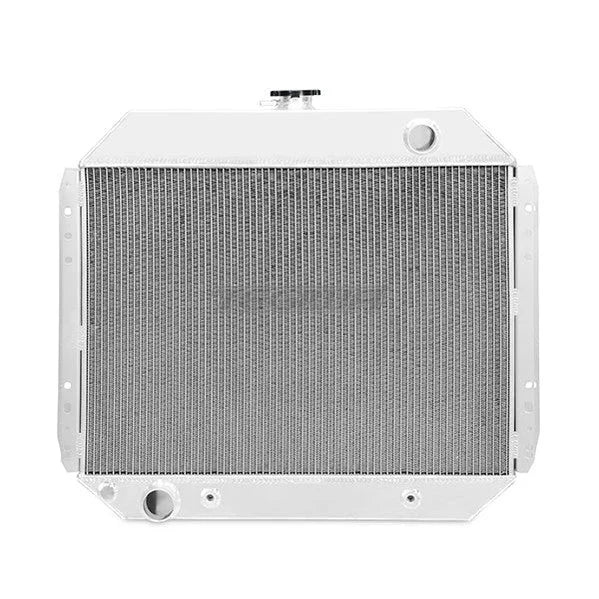

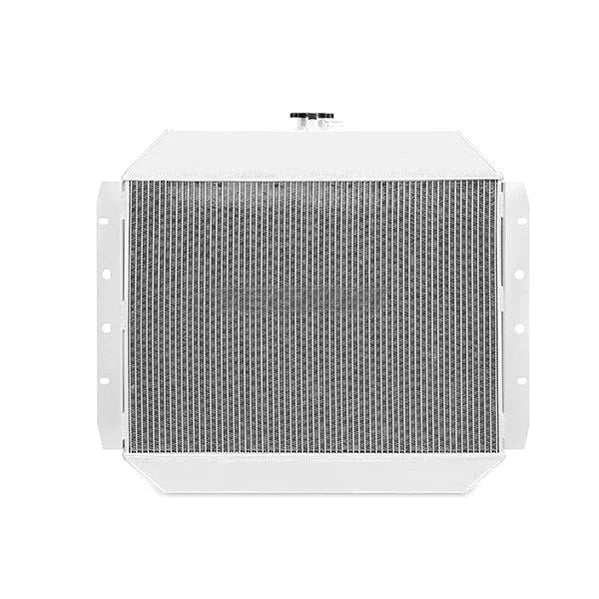

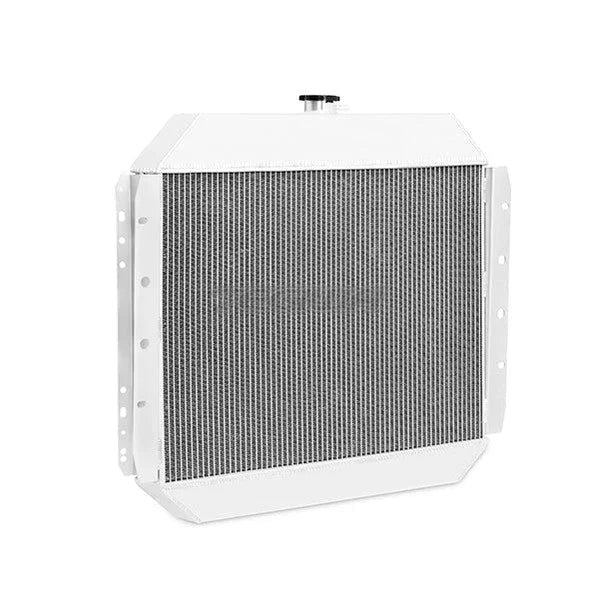

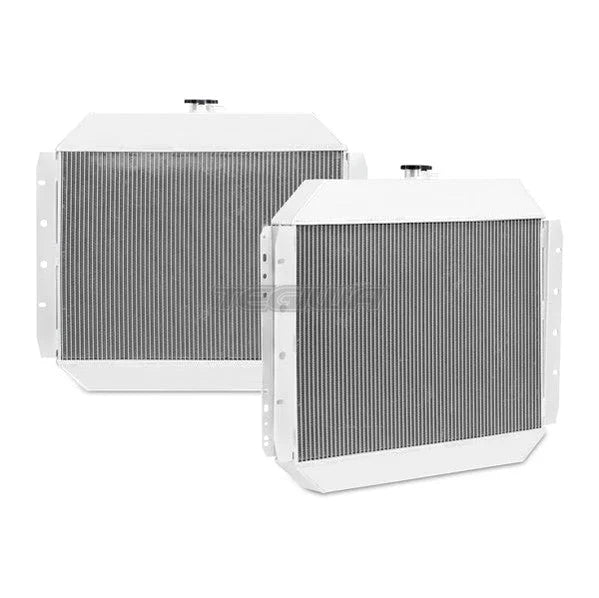

If you're looking to upgrade your Ford F-100 parts, look no further! The 1970--1979 Ford F-Series C/K X-Line Performance Aluminum Radiator provides your truck with enhanced reliability, improved cooling efficiency, and is an ideal upgrade for the brittle stock radiator. Whether you use your classic for daily driving or take it to the track, many people overlook the importance of installing an upgraded radiator in their engine. A stock radiator cannot handle the heat that comes along with having a great deal of horsepower. The Mishimoto Ford F-Series X-Line Aluminum Radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This Ford F-100 performance radiator also includes a Magnetic Oil Drain Plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, this Ford F-100 radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
