TechSpec Overall Height (in): 34.1
TechSpec Overall Length (in): 19.3
TechSpec Overall Width (ins): 6.5
TechSpec Core Length (in): 28.3
TechSpec Core Height (in): 16.1
TechSpec Fluid Capacity (gal): 4.87
TechSpec Rows: 3
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.75
TechSpec Core Thickness (in): 2.5
TechSpec Drain Plug Thread Size: 1/4-18 NPT
TechSpec DPI: 369
TechSpec Material: Aluminum
TechSpec Applications: 1967-1972 GM C/K Pickup 250 ci (4.1L) L6, 283ci (4.6L) V8, 292ci (4.8L) L6, 307ci (5.0L) V8, 327ci (5.4L) V8, 350ci (5.7L) V8, 396ci (6.5L) V8, 402ci (6.6L) V8--1969-1972 Chevy Blazer/GMC Jimmy 250ci (4.1L) L6, 292 (4.8L) L6, 307ci (5.0L) V8, 350ci (5.7L) V81967-1971 GM G Series Van 250 ci (4.1L) L6, 292ci (4.8L) L6, 307ci (5.0L) V8, 350ci (5.7L) V8--1968-1979 GM P Series Van 250 ci (4.1L) L6, 292ci (4.8L) L6, 307ci (5.0L) V8, 350ci (5.7L) V8, 402ci (6.6L) V8
TechSpec Engine Codes: 250ci (4.1L) L6--292ci (4.8L) L6--283ci (4.6L) V8--307ci (5.0L) V8--327ci (5.4L) V8--350ci (5.7L) V8--402ci (6.6L) V8
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:All-aluminum construction provides greater heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
3-row brazed aluminum core with TIG-welded end tanks
Increased coolant capacity and optimal heat dissipation
Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions

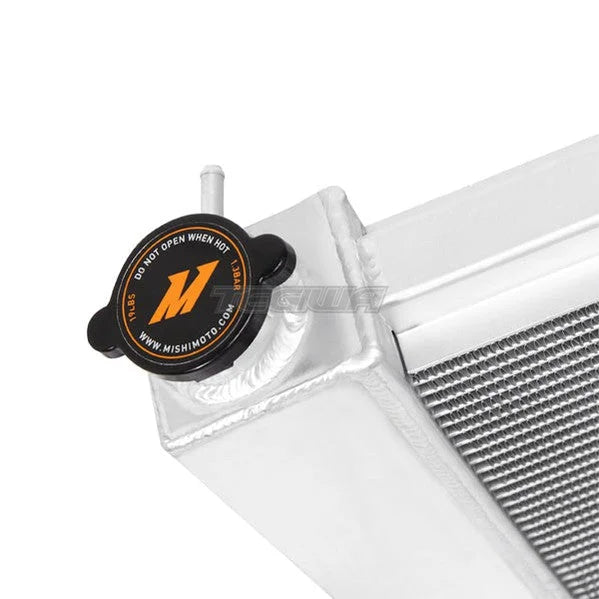

Billet aluminum fill neck
Includes magnetic drain plug to capture metallic debris and fragments in your cooling system
Mishimoto Lifetime Warranty

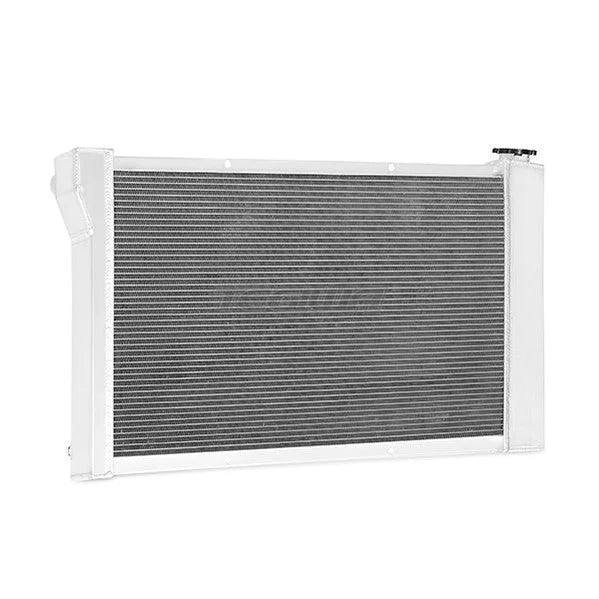

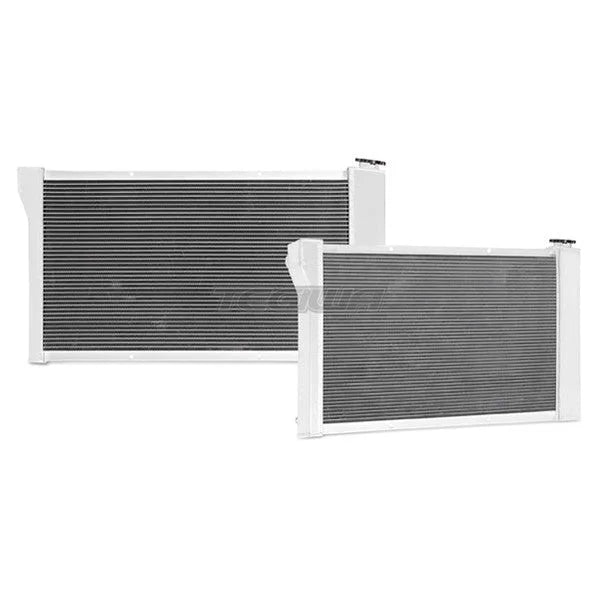

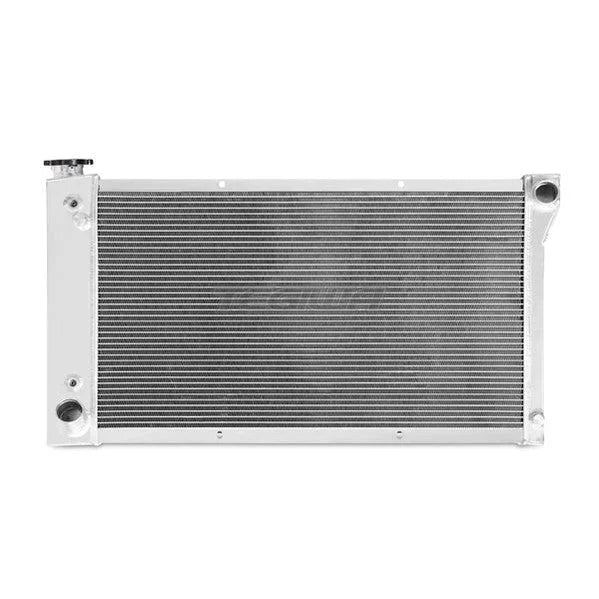

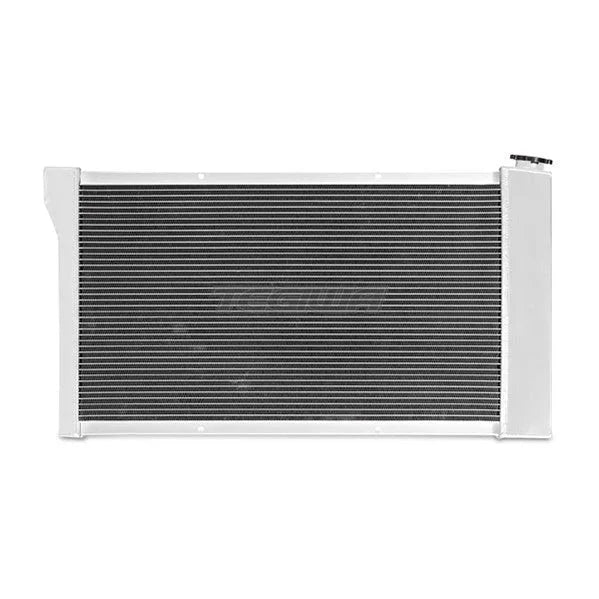

An ideal upgrade for the brittle stock radiator, the Mishimoto 1967--1972 GM C/K Truck X-Line Performance Aluminum Radiator provides your truck with enhanced reliability and improved cooling efficiency. Whether you use your classic for daily driving or take it to the track, don't overlook the importance of installing an upgraded classic truck radiator in your engine. A stock radiator cannot handle the heat that comes along with having a great deal of horsepower. This GM C/K truck radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This classic car radiator also includes a magnetic oil drain plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, every GM C/K truck radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
