TechSpec Overall Height (in): 23
TechSpec Overall Length (in): 25.2
TechSpec Overall Width (ins): 4.5
TechSpec Core Length (in): 17.4
TechSpec Core Height (in): 22.8
TechSpec Fluid Capacity (gal): 4.81
TechSpec Rows: 3
TechSpec Inlet (in): 1.75
TechSpec Outlet (in): 1.75
TechSpec Core Thickness (in): 2
TechSpec Drain Plug Thread Size: 1/4-18 NPT
TechSpec DPI: 284
TechSpec Material: Aluminum
TechSpec Applications: 1963-1966 GM C/K Pickup 220ci (3.8L) L6, 250ci (4.1L) L6, 283ci (4.6L) V8, 292ci (4.8L) L6--1963-1966 GM C/K Suburban 220ci (3.8L) L6, 250ci (4.1L) L6, 283ci (4.6L) V8, 292ci (4.8L) L6, 327ci (5.3L) V8, 350ci (5.7L) V8--1961-1964 Pontiac Bonneville 389ci (6.4L) V8, 421ci (6.9L) V8--1961-1964 Pontiac Catalina 389ci (6.4L) V8, 421ci (6.9L) V8--1962-1966 Pontiac Grand Prix 389ci (6.4L) V8, 421ci (6.9L) V8--1961-1964 Pontiac Star Chief 389ci (6.4L) V8, 421ci (6.9L) V8
TechSpec Engine Codes: 220ci (3.8L) L6--250ci (4.1L) L6--283ci (4.6L) V8--292ci (4.8L) L6--327ci (5.3L) V8--350ci (5.7L) V8--389ci (6.4L) V8--421ci (6.9L) V8
Note: Transmission Cooler Thread Info:--On Radiator: Female 1/4-inch BSPP
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:100-percent aluminum construction featuring high-quality, durable TIG-welding
3-row brazed aluminum core
Features an internal transmission cooler to ensure optimal fluid temperatures for automatic transmissions
Increased coolant capacity and optimal heat dissipation

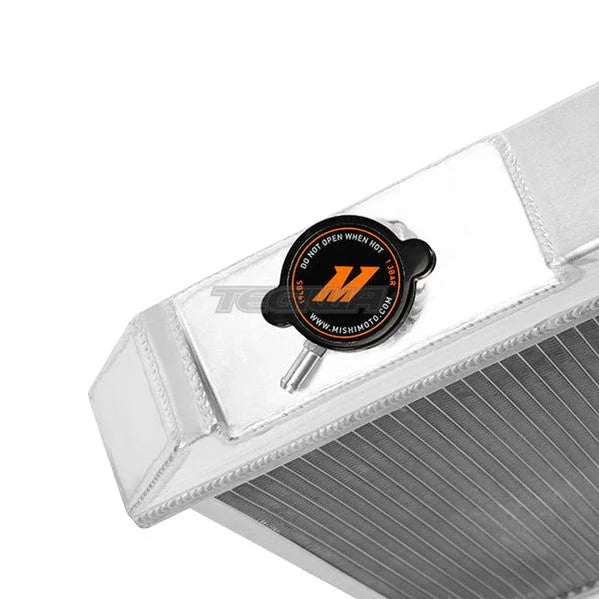

Billet aluminum fill neck
Includes magnetic drain plug to capture metallic debris and fragments in cooling system
Mishimoto Lifetime Warranty

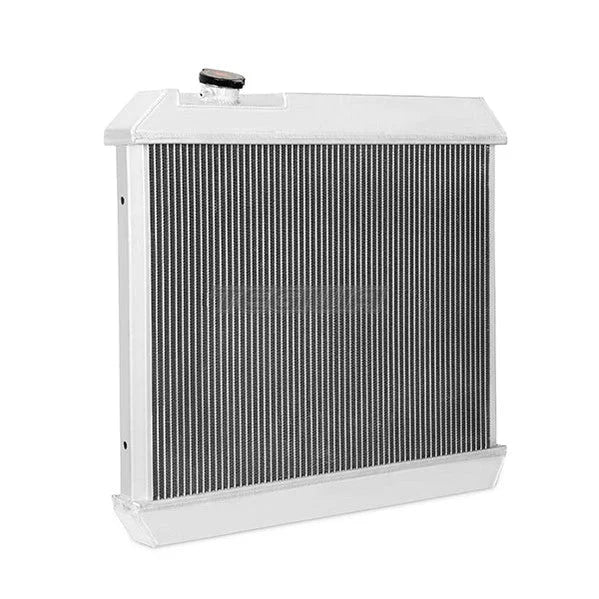

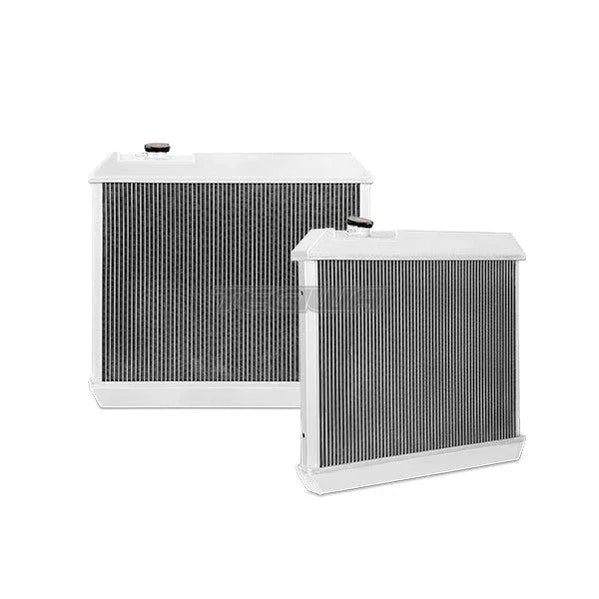

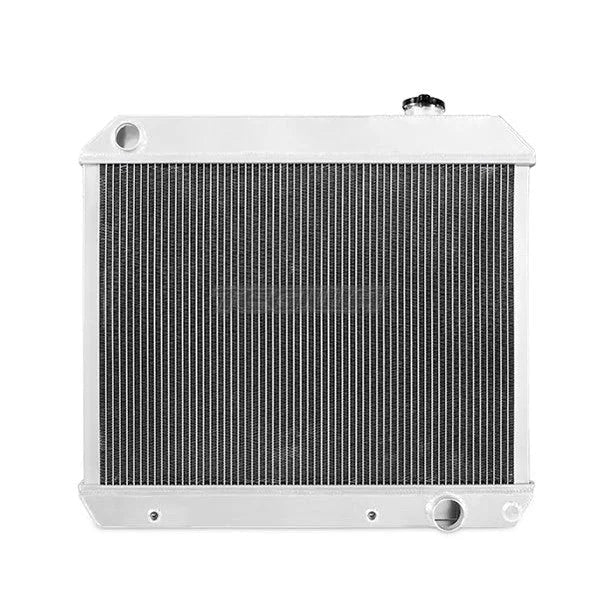

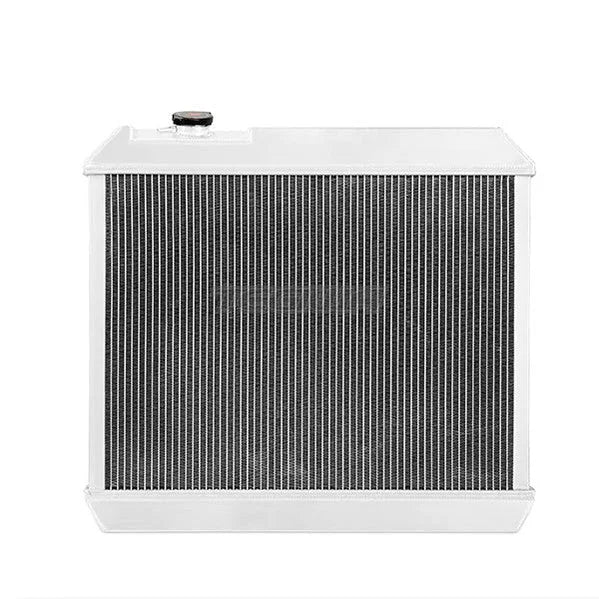

An ideal upgrade for the brittle stock radiator, the Mishimoto 1963--1966 GM C/K Truck X-Line Performance Aluminum Radiator provides your truck with enhanced reliability and improved cooling efficiency. Whether you use your classic for daily driving or take it to the track, don't overlook the importance of installing an upgraded classic truck radiator in your engine. A stock radiator cannot handle the heat that comes along with having a great deal of horsepower. This GM C/K truck radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This classic car radiator also includes a magnetic oil drain plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, every GM C/K truck radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
