TechSpec Overall Height (in): 27
TechSpec Overall Length (in): 26.2
TechSpec Overall Width (ins): 5.6
TechSpec Core Length (in): 21.7
TechSpec Core Height (in): 19.4
TechSpec Fluid Capacity (gal): 4.96
TechSpec Rows: 3
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.75
TechSpec Core Thickness (in): 2
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 5559
TechSpec Material: Aluminum
TechSpec Applications: 1955-1959 GM 3100 Series Truck
TechSpec Engine Codes: 235ci (3.9L) I6--265ci (4.3L) V8--283ci (4.6L) V8
Note: Transmission Cooler Thread Info:--On Radiator: Female 1/4-inch BSPP--Sealing Face: 70

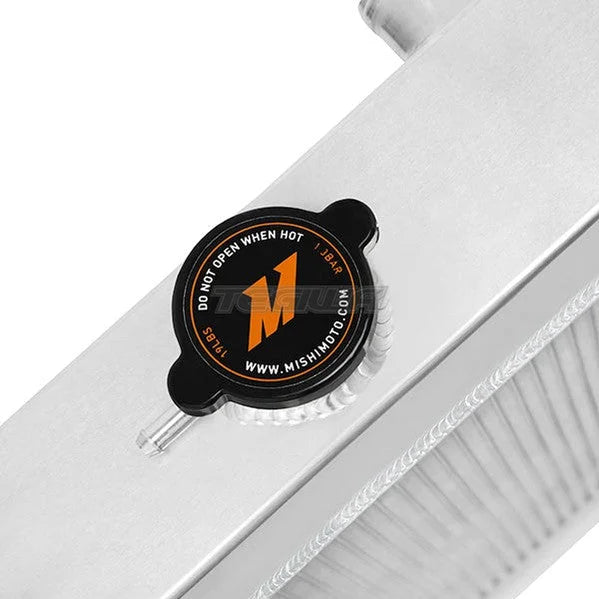

TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:100-percent aluminum construction provides greater heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
3-row core
Increased coolant capacity directly results in better cooling efficiency and reduced engine temperatures
Includes an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
Billet aluminum fill neck
Brazed aluminum core with TIG-welded end tanks
Includes magnetic drain plug
Mishimoto Lifetime Warranty

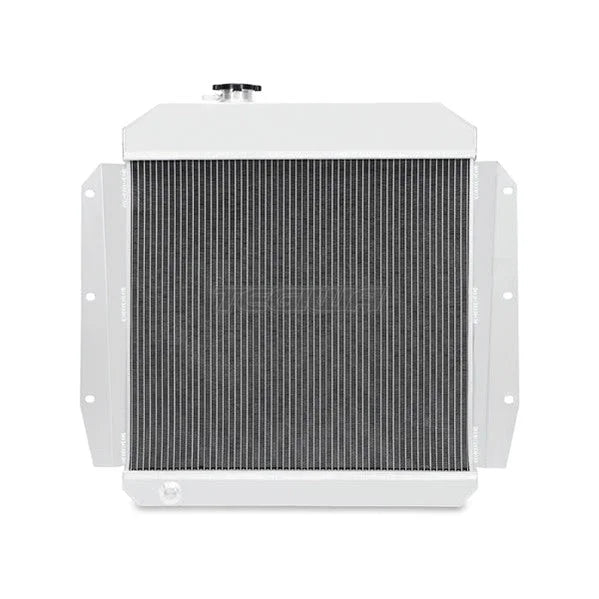

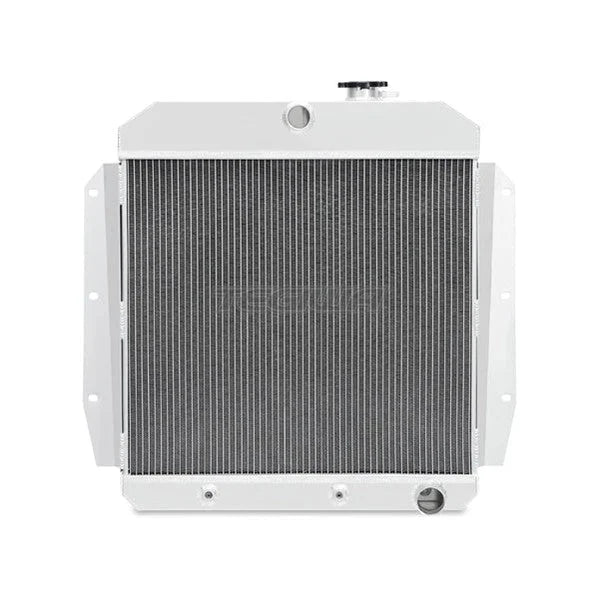

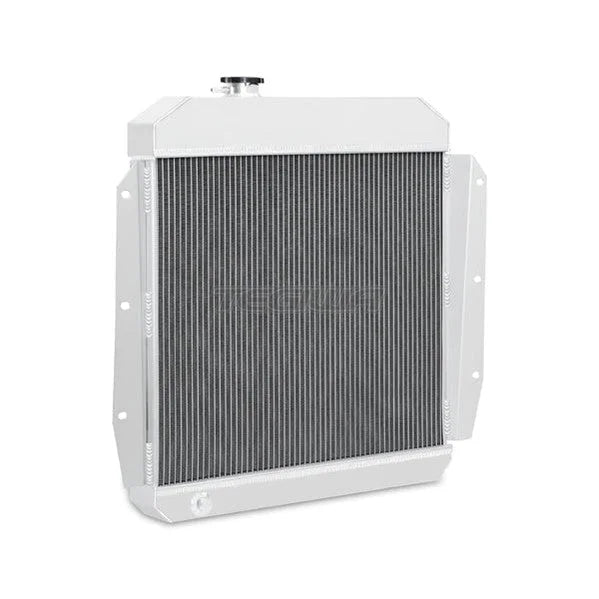

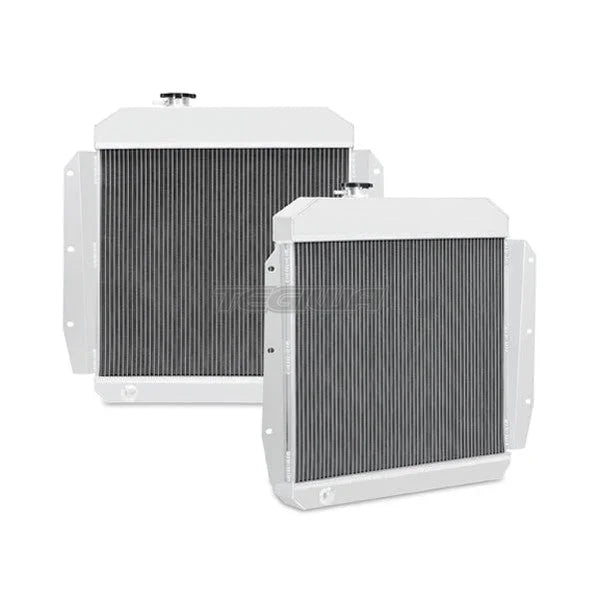

If you're looking to upgrade your GM 3100 Series parts, look no further! The Mishimoto 1955--1959 GM 3100 Series Truck X-Line Performance Aluminum Radiator provides your car with enhanced reliability, improved cooling efficiency, and is an ideal upgrade for the brittle stock radiator. Whether you use your classic for daily driving or take it to the track, many people overlook the importance of installing an upgraded radiator in their engine. A stock radiator cannot handle the heat that comes along with having a great deal of horsepower. The Mishimoto GM 3100 Series Truck X-Line Aluminum Radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This GM 3100 Series performance radiator also includes a Magnetic Oil Drain Plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, this GM 3100 Series radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
