TechSpec Overall Height (in): 31.9
TechSpec Overall Length (in): 19.3
TechSpec Overall Width (ins): 6.1
TechSpec Core Length (in): 26.3
TechSpec Core Height (in): 16.5
TechSpec Fluid Capacity (gal): 5.94
TechSpec Rows: 3
TechSpec Inlet (in): 1.4
TechSpec Outlet (in): 1.6
TechSpec Core Thickness (in): 2.4
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 718
TechSpec Material: Aluminum
TechSpec Applications: 1977-1983 Chevrolet Corvette (350 V8)
Note: Transmission Cooler Thread Info:--On Radiator: Female 1/4-inch BSPP
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:All-aluminum construction with durable, TIG-welded end tanks
Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
3-row core
Increased coolant capacity and superior heat dissipation
Billet aluminum fill neck
Brazed aluminum core
Includes magnetic drain plug to capture metallic debris and fragments in cooling system
Mishimoto Lifetime Warranty

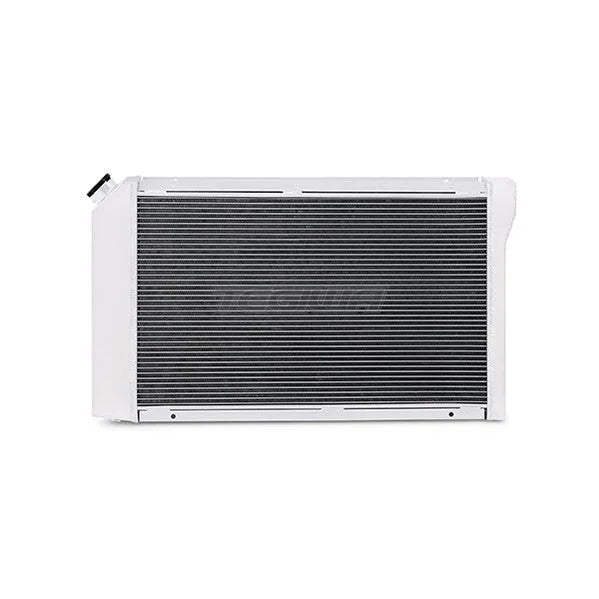

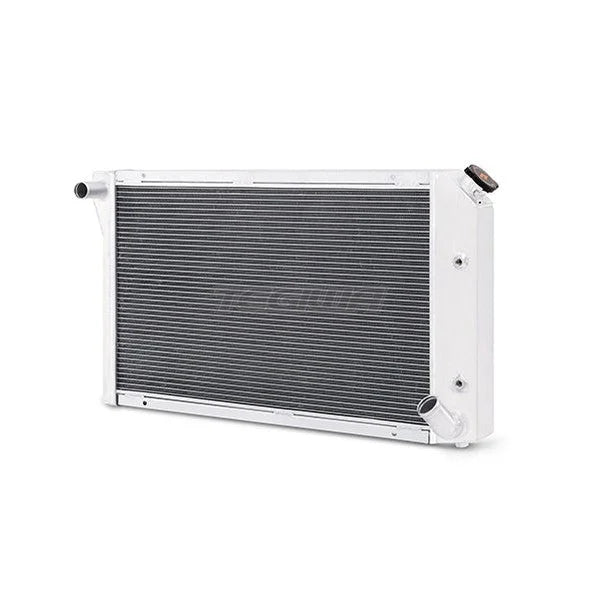

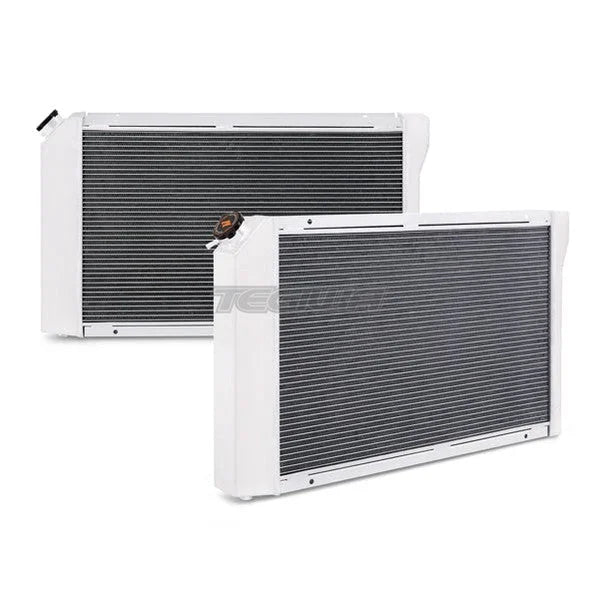

Are you looking to upgrade your Corvette parts? Look no further! The Mishimoto 1977--1983 Chevrolet Corvette X-Line Performance Aluminum Radiator is an ideal upgrade for the brittle stock Corvette radiator, and provides your Corvette C3 with enhanced reliability and improved cooling efficiency. Whether you use your 1980 Corvette as a daily driver or take your 1978 Corvette down to the track on the weekends, many people overlook the importance of installing an upgraded radiator in their engine. A stock Corvette radiator cannot handle the heat that comes along with having a great deal of horsepower. The Mishimoto Chevrolet Corvette X-Line Aluminum Radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This performance aluminum radiator also includes a Magnetic Drain Plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, this Corvette radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
