TechSpec Overall Height (in): 21.7
TechSpec Overall Length (in): 27.7
TechSpec Overall Width (ins): 4.5
TechSpec Core Length (in): 16
TechSpec Core Height (in): 24.7
TechSpec Fluid Capacity (gal): 4.81
TechSpec Rows: 3
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.5
TechSpec Core Thickness (in): 2.5
TechSpec Drain Plug Thread Size: 1/4-18 NPT
TechSpec DPI: 289
TechSpec Material: Aluminum
TechSpec Applications: 1965-1967 Chevrolet Chevelle 250ci (4.1L) L6, 283ci (4.6L) V8, 327ci (5.4L) V8, 396ci (6.5L) V8--1966-1968 Chevrolet Impala 250ci (4.1L) I6, 283ci (4.6L) V8, 307ci (5.0L) V8, 327ci (5.4L) V8, 396ci (6.5L) V8--1966-1968 Chevrolet Caprice 250ci (4.1L) I6, 283ci (4.6L) V8, 307ci (5.0L) V8, 327ci (5.4L) V8, 396ci (6.5L) V8--1966-1968 Chevrolet Bel Air 250ci (4.1L) I6, 283ci (4.6L) V8, 307ci (5.0L) V8, 327ci (5.4L) V8, 396ci (6.5L) V8--1966-1968 Chevrolet Biscayne 250ci (4.1L) I6, 283ci (4.6L) V8, 307ci (5.0L) V8, 327ci (5.4L) V8, 396ci (6.5L) V8--1966-1967 Chevrolet El Camino 230ci (3.8L) L6, 250ci (4.1L) I6, 283ci (4.6L) V8, 327ci (5.4L) V8, 396ci (6.5L) V8--1966 Chevrolet Malibu 283ci (4.6L) V8, 327ci (5.4L) V8, 396ci (6.5L) V8
TechSpec Engine Codes: 230ci (3.8L) L6--250ci (4.1L) I6--283ci (4.6L) V8--307ci (5.0L) V8--327ci (5.4L) V8--396ci (6.5L) V8
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:All-aluminum construction provides increased heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity

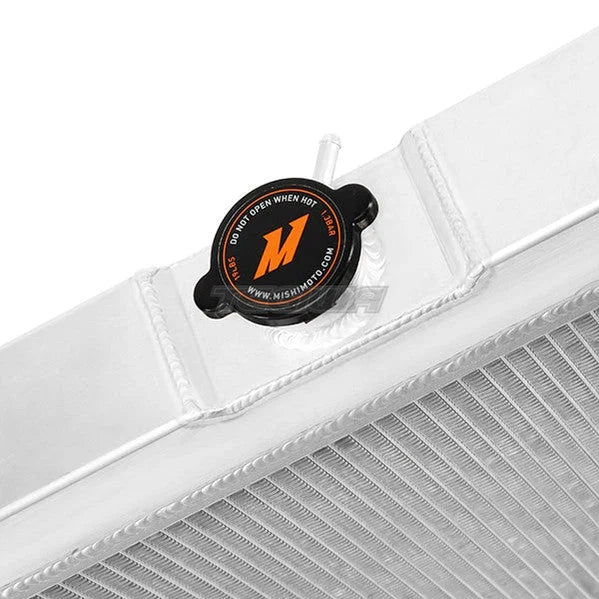

Billet aluminum fill neck
3-row brazed aluminum core
Manufactured with internal transmission cooler to ensure optimal fluid temperatures for automatic transmissions
Increased coolant capacity directly results in better cooling efficiency and reduced engine temperatures
Includes magnetic drain plug
Mishimoto Lifetime Warranty

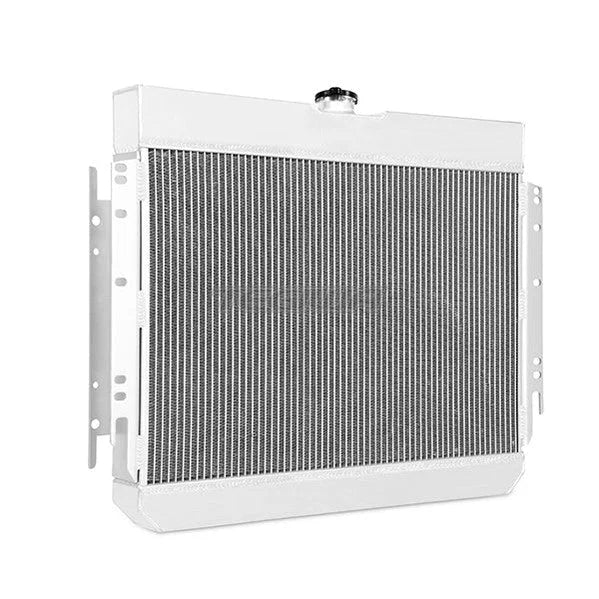

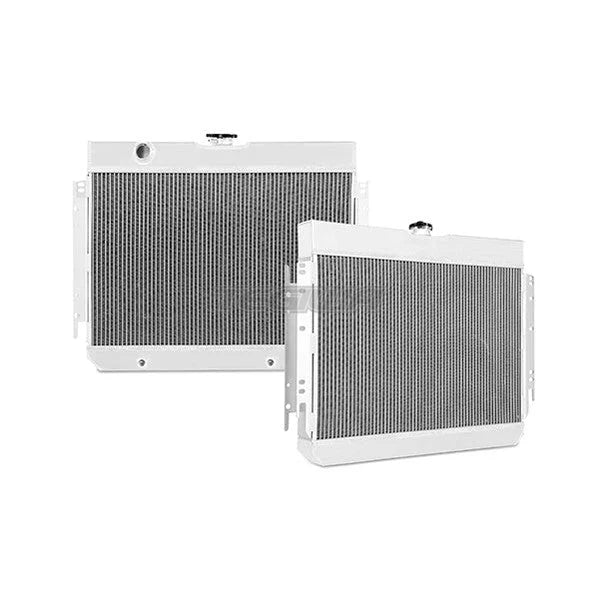

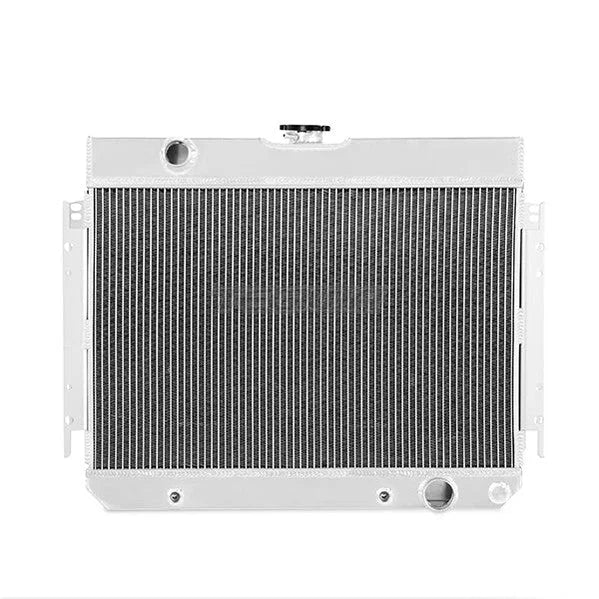

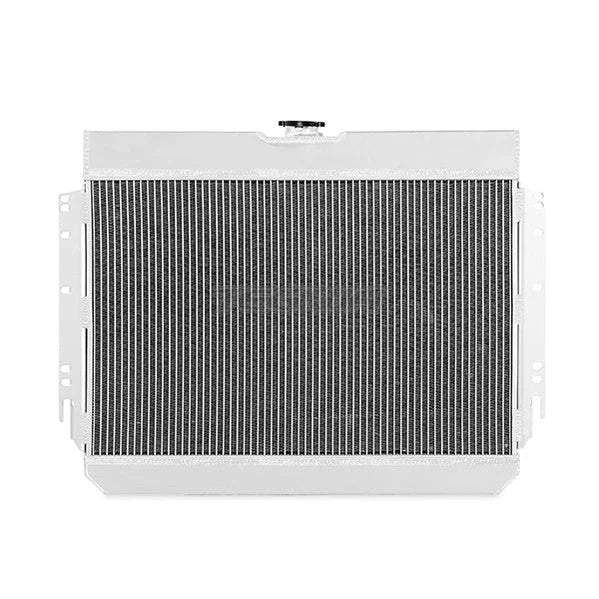

An ideal upgrade for the brittle stock radiator, the Mishimoto 1965-67 Chevrolet Chevelle X-Line Performance Aluminum Radiator provides your car with enhanced reliability and improved cooling efficiency. Whether you use your classic for daily driving or take it to the track, many people overlook the importance of installing an upgraded radiator in their engine. A stock radiator cannot handle the heat that comes along with having a great deal of horsepower. The Mishimoto Chevrolet Chevelle X-Line Aluminum Radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This performance radiator also includes a Magnetic Oil Drain Plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, this radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
