TechSpec Overall Height (in): 30.2
TechSpec Overall Length (in): 19.3
TechSpec Overall Width (ins): 5
TechSpec Core Length (in): 22.8
TechSpec Core Height (in): 16.9
TechSpec Fluid Capacity (gal): 6.51
TechSpec Rows: 3
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.75
TechSpec Core Thickness (in): 2.5
TechSpec Drain Plug Thread Size: 1/4-18 NPT
TechSpec DPI: 370
TechSpec Material: Aluminum
TechSpec Applications: 1967-1969 Pontiac Firebird 326ci (5.3L) V8, 350ci (5.7L) V8, 400ci (6.6L) V8
TechSpec Engine Codes: 326ci (5.3L) V8--350ci (5.7L) V8--400ci (6.6L) V8
Note: Transmission Cooler Thread Info:--On Radiator: Female 1/4-inch BSPP
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:All-aluminum construction provides increased heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
3-row core
Billet aluminum fill neck
Increased coolant capacity directly results in better cooling efficiency and reduced engine temperatures
Brazed aluminum core
Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
Includes magnetic drain plug
Mishimoto Lifetime Warranty

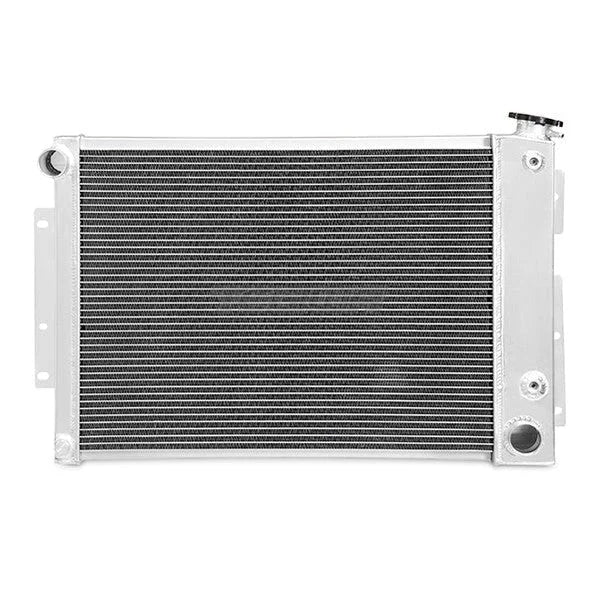

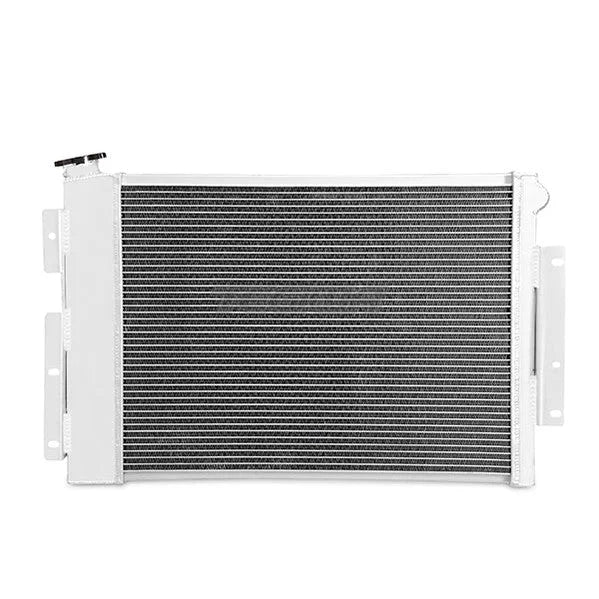

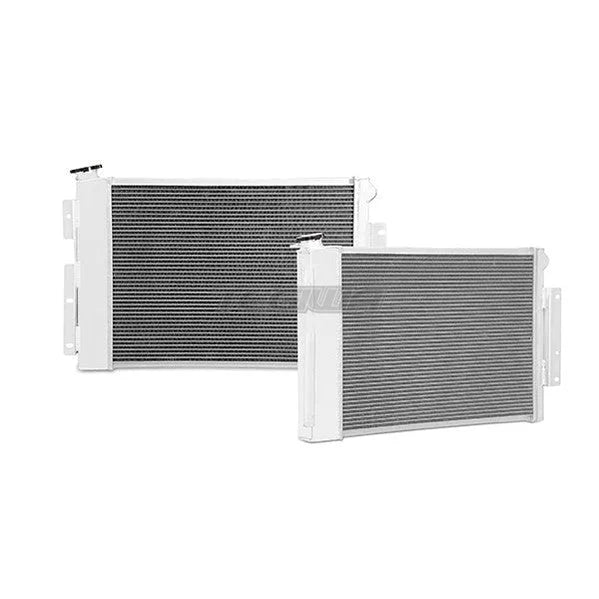

An ideal upgrade for the brittle stock radiator, the Mishimoto 1967--1969 Pontiac Firebird X-Line Performance Aluminum Radiator provides your car with enhanced reliability and improved cooling efficiency. Whether you want an all-aluminum 1968 Firebird radiator for daily driving or the extra cooling power from a 3-row 1969 Firebird radiator to take to the track, don't overlook the importance of installing an upgraded radiator in your engine. A stock classic car radiator cannot handle the heat that comes along with impressive horsepower. This Firebird radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. Each Firebird radiator also includes a magnetic oil drain plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, every classic car radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
