TechSpec Overall Height (in): 25.2
TechSpec Overall Length (in): 23.4
TechSpec Overall Width (ins): 5
TechSpec Core Length (in): 21.6
TechSpec Core Height (in): 17.1
TechSpec Fluid Capacity (gal): 5.13
TechSpec Rows: 3
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.75
TechSpec Core Thickness (in): 2.5
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 4954
TechSpec Material: Aluminum
TechSpec Applications: 1950-1954 Chevrolet Bel-Air--1953-1954 Chevrolet Corvette--1953-1954 Chevrolet 150--1953-1954 Chevrolet 210
TechSpec Engine Codes: 216ci (3.5L) I6--236ci (3.9L) I6
Note: Transmission Cooler Thread Info:--On Radiator: Female 1/4-inch BSPP

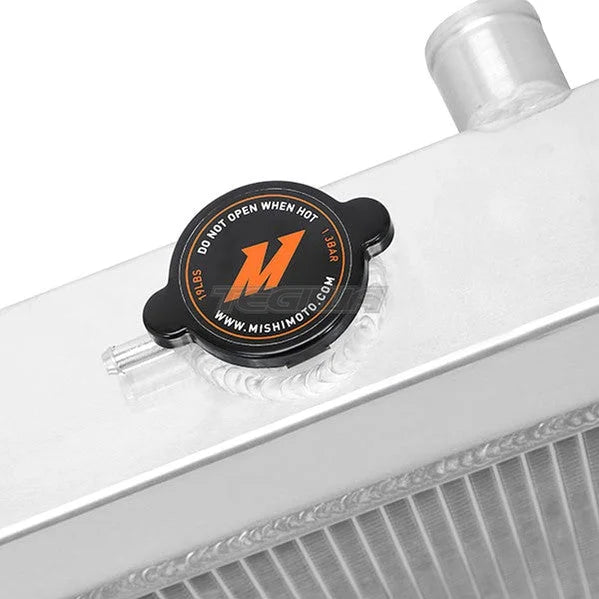

TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:All-aluminum construction provides increased heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
Billet aluminum fill neck
Manufactured with internal transmission cooler to ensure optimal fluid temperatures for automatic transmissions
3-row core
Increased coolant capacity directly results in better cooling efficiency and reduced engine temperatures
Brazed aluminum core
Includes magnetic drain plug
Mishimoto Lifetime Warranty

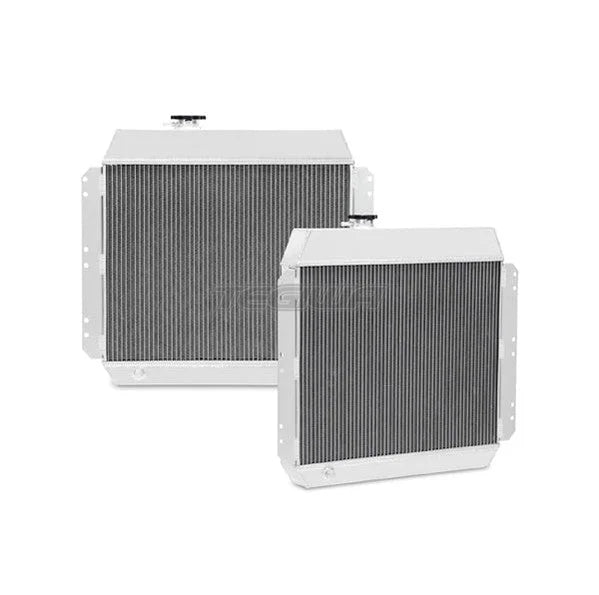

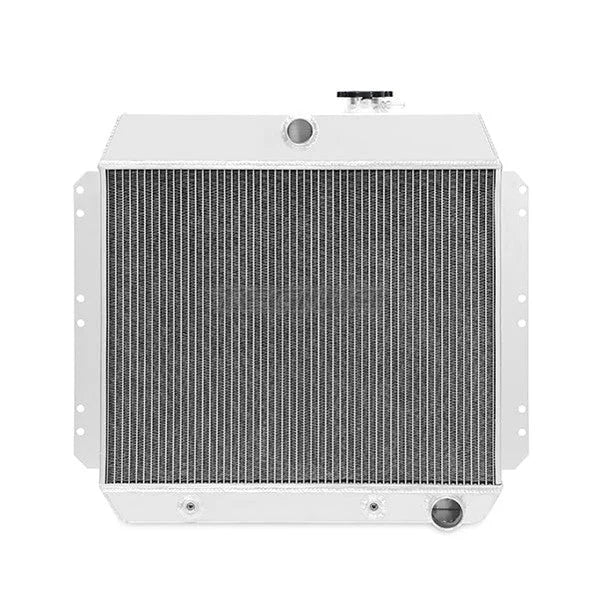

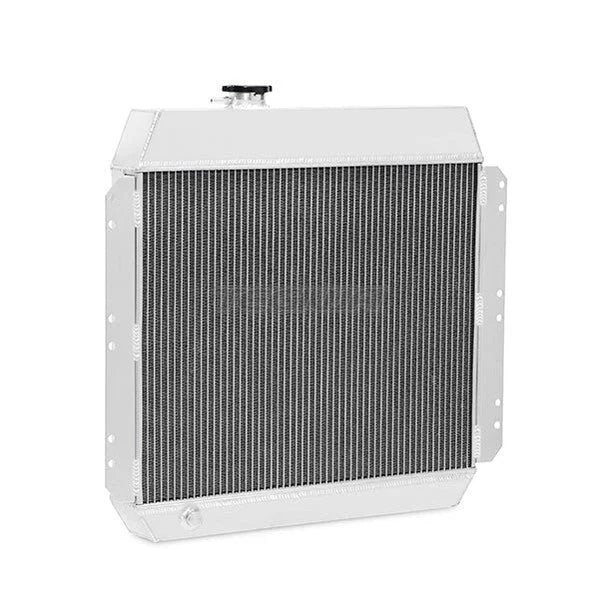

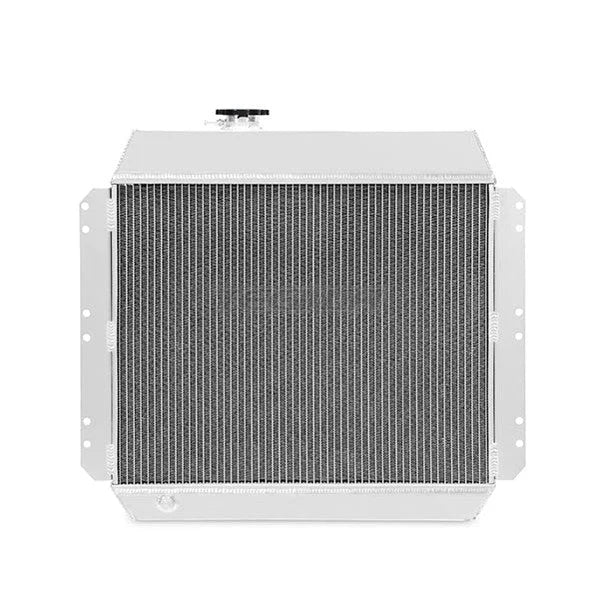

If you're looking to upgrade your Chevy Bel-air parts, look no further. The Mishimoto 1950--1954 Chevrolet Bel-Air Inline 6 X-Line Performance Aluminum Radiator provides your car with enhanced reliability, improved cooling efficiency, and is an ideal upgrade for the brittle stock radiator. Whether you use your classic for daily driving or take it to the track, many people overlook the importance of installing an upgraded radiator in their engine. A stock radiator cannot handle the heat that comes along with having a great deal of horsepower. The Mishimoto Chevrolet Bel-Air Inline 6 X-Line Aluminum Radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This Chevy Bel-air performance radiator also includes a Magnetic Oil Drain Plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, this 1953--1954 Chevy Bel-air radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
