TechSpec Overall Height (in): 19.2
TechSpec Overall Length (in): 29.25
TechSpec Overall Width (ins): 2.55
TechSpec Core Length (in): 24.4
TechSpec Core Height (in): 16.85
TechSpec Fluid Capacity (gal): 3.97
TechSpec Rows: 2
TechSpec Inlet (in): 1.25
TechSpec Outlet (in): 1.5
TechSpec Core Thickness (in): 2.125
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 138/556
TechSpec Material: Aluminum
TechSpec Applications: 1980-1988 Ford Thunderbird--1980-1983 Ford Fairmont--1981-1982 Ford Granada--1983-1986 Ford LTD--1978-1983 Mercury Zephyr--1980-1986 Mercury Capri--1980-1988 Mercury Cougar
TechSpec Engine Codes: 302ci (5.0L)
Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:Full aluminum construction provides increased heat and pressure tolerance, improved heat dissipation, increased durability, and improved cooling efficiency
Manufactured with stamped end tanks for improved structural rigidity and improved durability
100-percent brazed aluminum core for maximum reliability
Increased coolant capacity directly results in improved cooling efficiency and engine temperature reduction
Included 1.3 bar radiator cap raises the boiling point of engine coolant to provide a safer and more efficient system
Designed to original equipment specifications for the 1979-1993 Ford Mustang
Lifetime Warranty ensures product quality and craftsmanship
Install Difficulty: 3

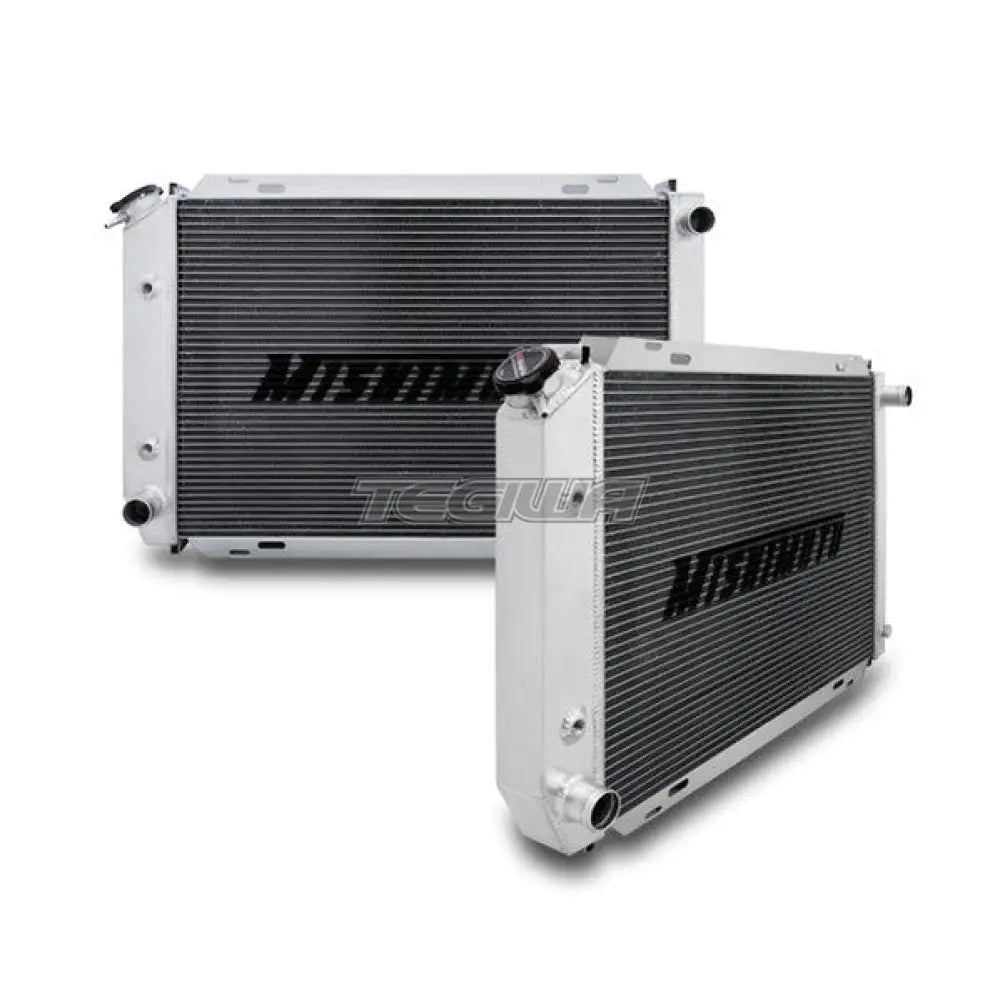

The Fox-Body Mustang is an ideal candidate for both daily driving and tearing up the drag strip. With such a large aftermarket, increasing horsepower is easy and inexpensive. More power commonly results in higher temperatures, necessitating an effective and reliable cooling system. Ditch your aged and inefficient stock radiator for the Mishimoto Ford Mustang all aluminum radiator. This radiator features a 100-percent brazed aluminum two-row core with precision stamped end tanks for structural rigidity and improved durability. This performance radiator includes a high-pressure 1.3 bar radiator cap that effectively raises the boiling point of coolant to create a safer and more efficient system, perfect for your cammed or blown small block. The Mishimoto Ford Mustang Performance Aluminum Radiator features a core thickness of 2.125 inches and a substantial increase in coolant capacity. For further protection, this radiator includes a Mishimoto magnetic drain plug to collect metal fragments circulating in the cooling system. This drain plug utilizes a robust dowty seal for exceptional protection against seepage or leaks. Thanks to a brushed finish, the Mishimoto performance aluminum radiator is an ideal upgrade not only in performance, but also in style. The Mishimoto Fox-Body aluminum radiator is a direct-fit unit, simplifying installation and guaranteeing perfect fitment for 1979-1993 models. Keep your Mustang on the road and out of the garage with the Mishimoto performance aluminum radiator. As with all our products, this radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
