TechSpec Overall Height (in): 27.3
TechSpec Overall Length (in): 19.16
TechSpec Overall Width (ins): 6.2
TechSpec Core Length (in): 23.15
TechSpec Core Height (in): 13.58
TechSpec Fluid Capacity (gal): 2.39
TechSpec Rows: 2
TechSpec Inlet (in): 1.38
TechSpec Outlet (in): 1.38
TechSpec Core Thickness (in): 1.65
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 110
TechSpec Material: Aluminum
TechSpec Applications: 1970-1973 Datsun 240Z--1974-1975 Datsun 260Z
TechSpec Engine Codes: L24--L26
TechSpec Chassis Codes: S30
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Features:Direct fit for the 1970-1973 Datsun 240Z and 1974-1975 Datsun 260Z
Full aluminum design with durable, TIG-welded construction
Features a two-row, 1.65-in thick brazed aluminum core, providing ideal fluid temperatures on the street or track
Ideal replacement for an aged, clogged, or leaking stock radiator

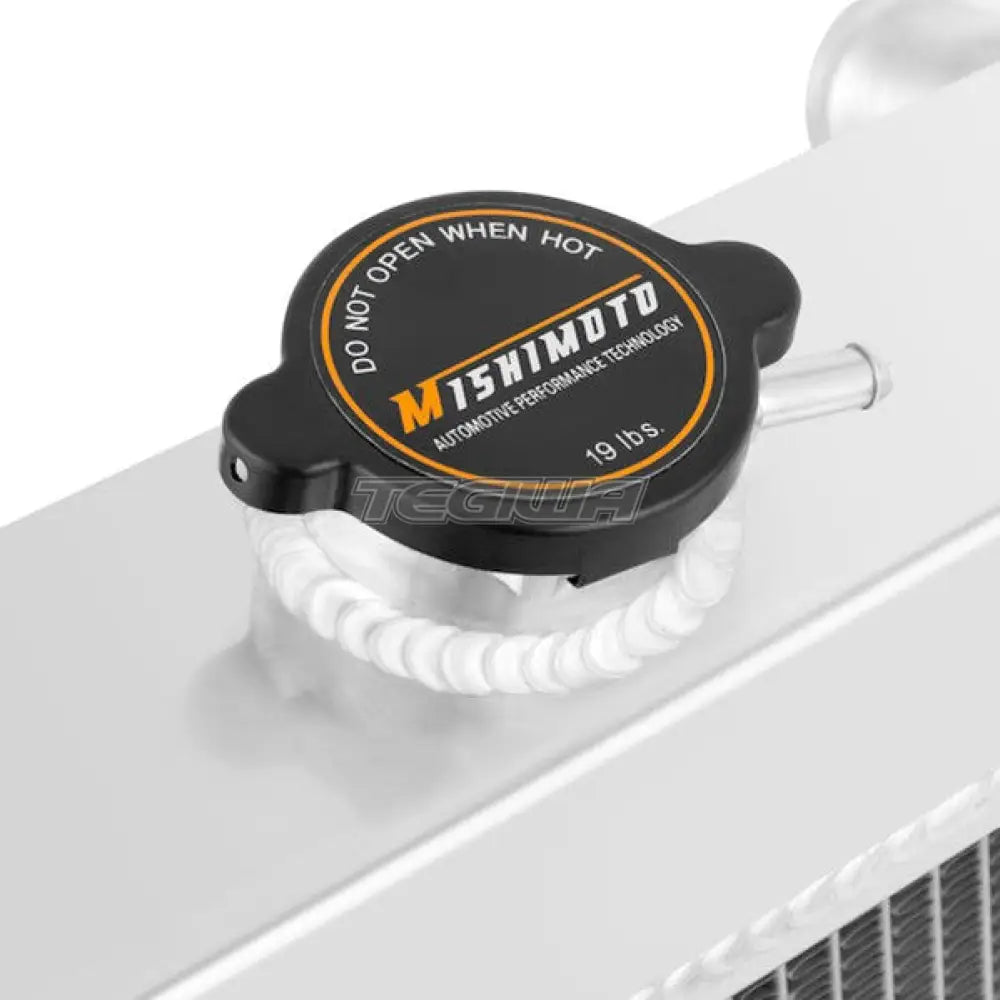

Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Includes Magnetic Drain
Plug to capture any metallic debris/fragments in your cooling system

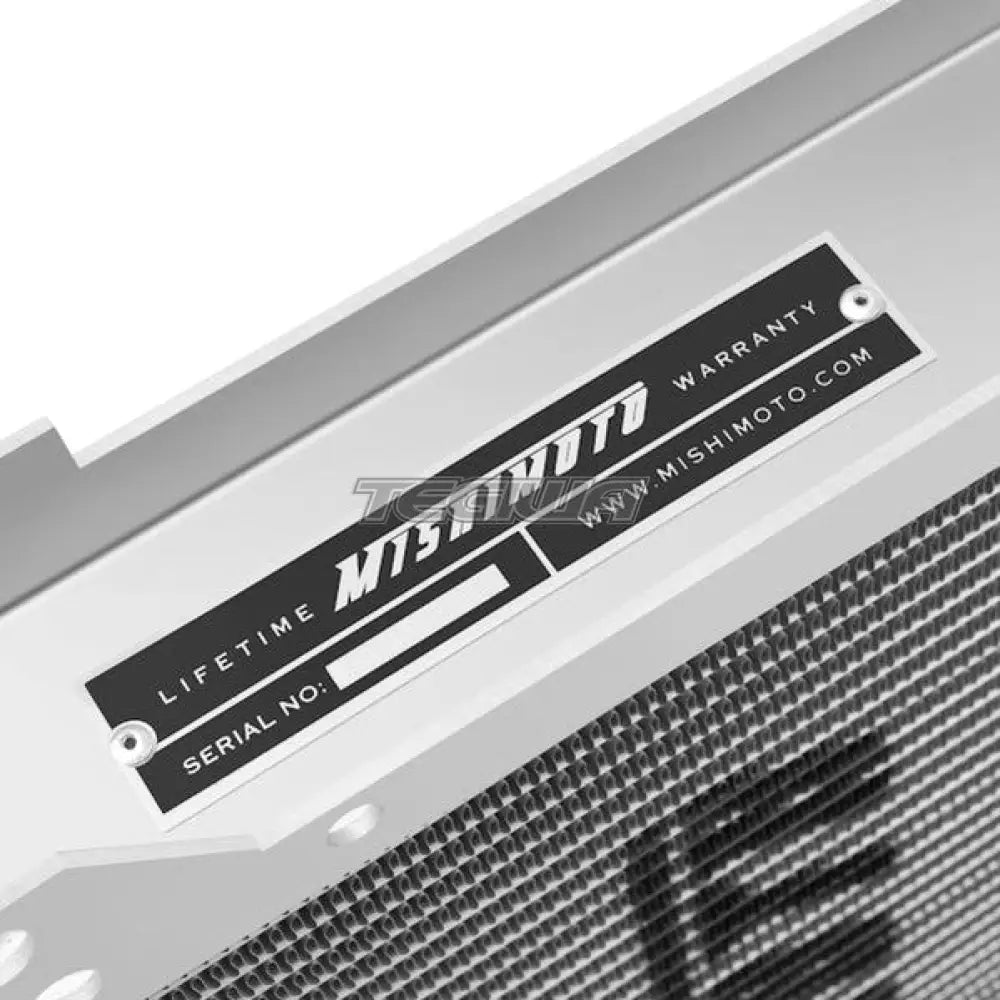

Mishimoto Lifetime Warranty
Install Difficulty: 3

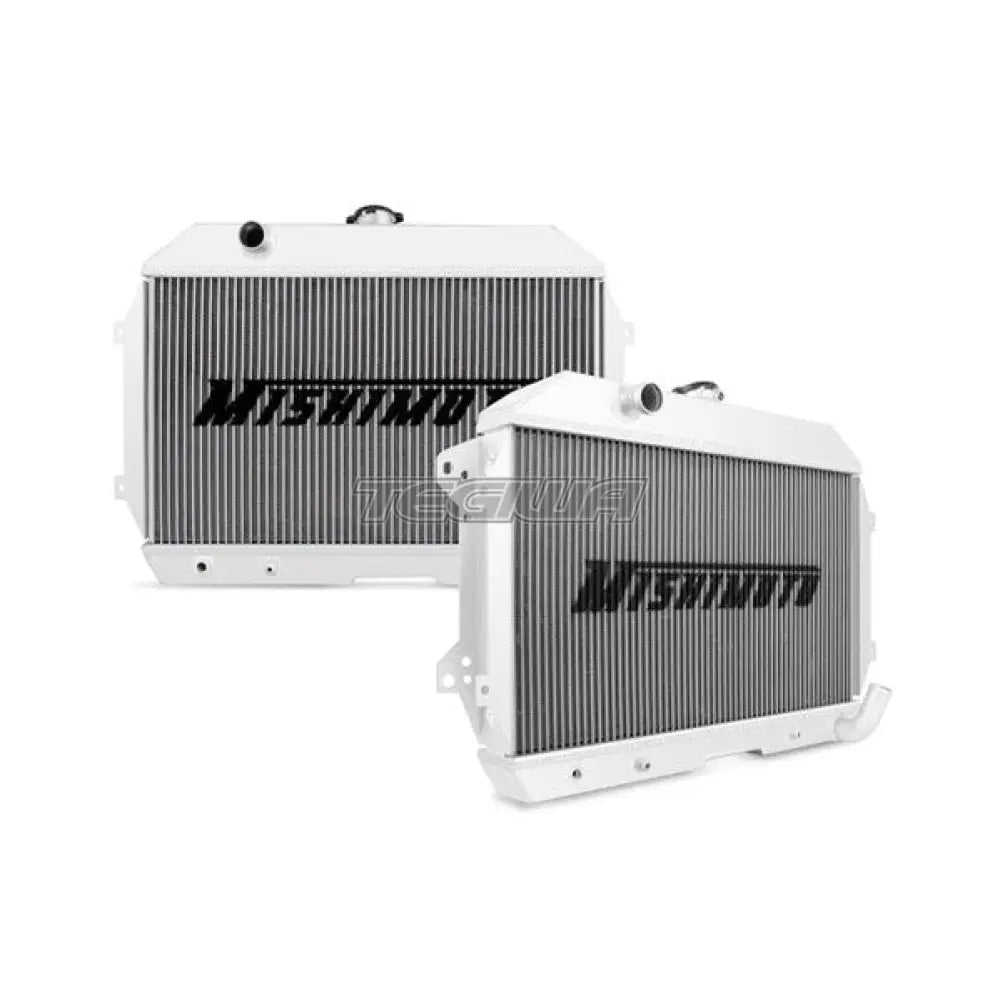

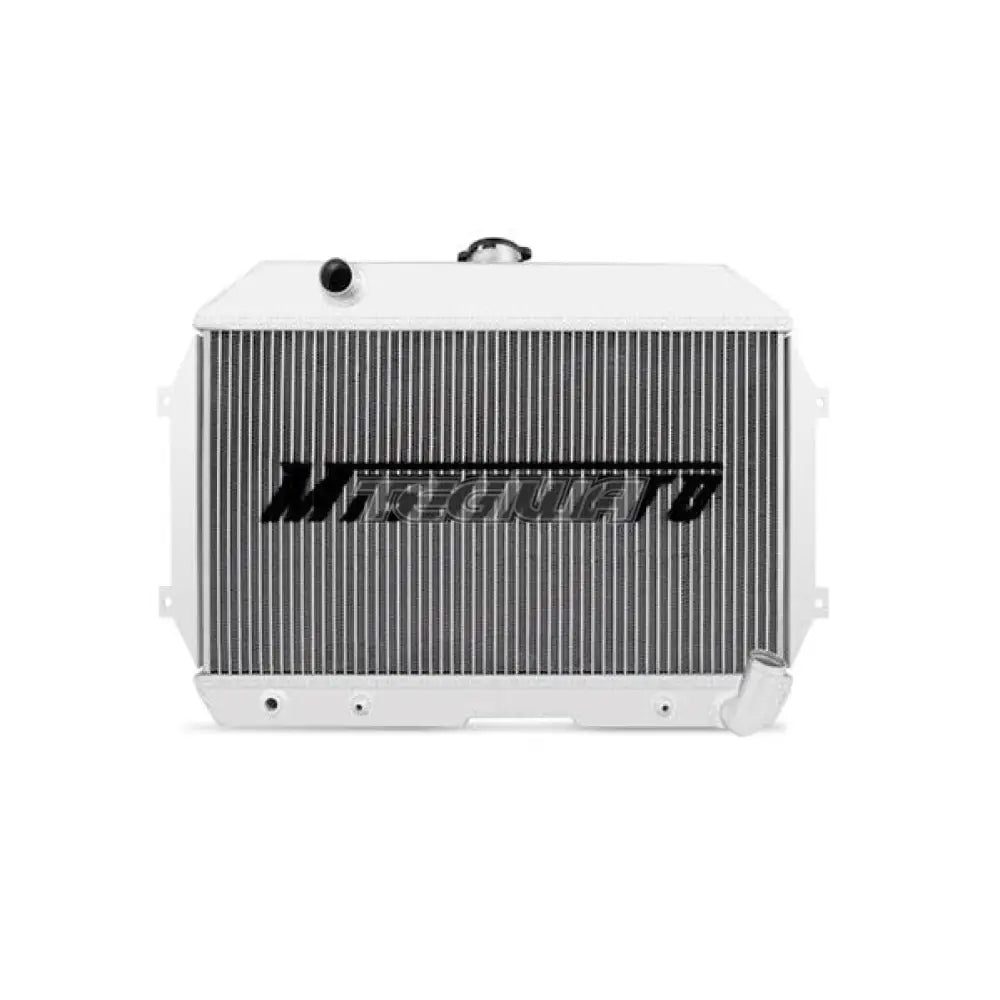

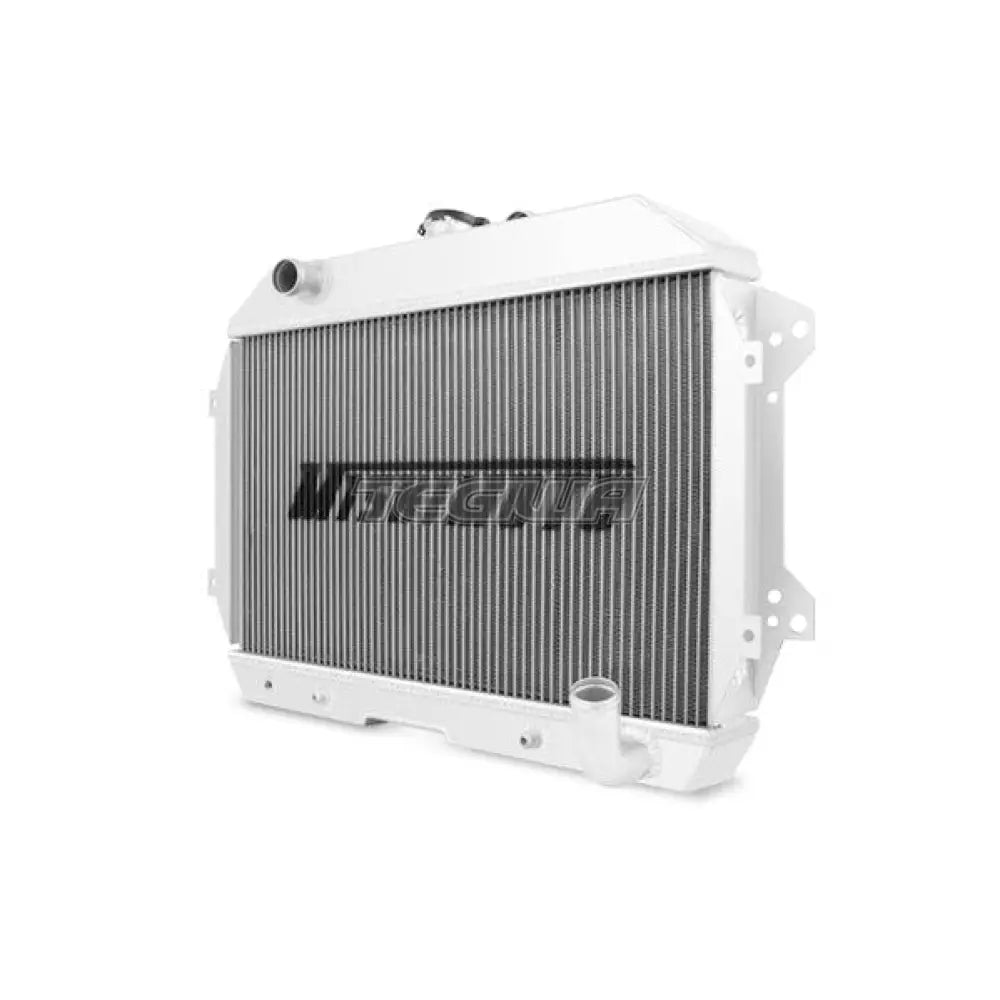

The Mishimoto performance aluminum radiator for the Datsun 240Z is the ideal update to the stock Datsun radiator.The last thing you want is to be limited by an old, worn out radiator during a hot day at the strip or when you're stuck in traffic.Our engineers know that, and our design reflects this by utilizing all-aluminum construction and added fluid capacity to increase cooling efficiency.With polished end tanks and a signature Mishimoto radiator cap, the Mishimoto Datsun 240Z radiator looks as good as it performs!
