TechSpec Overall Height (in): 31.5
TechSpec Overall Length (in): 19.5
TechSpec Overall Width (ins): 4.5
TechSpec Core Length (in): 26.2
TechSpec Core Height (in): 16.5
TechSpec Fluid Capacity (gal): 4.63
TechSpec Rows: 2
TechSpec Inlet (in): 1.37
TechSpec Outlet (in): 1.57
TechSpec Core Thickness (in): 1.96
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 951
TechSpec Material: Aluminum
TechSpec Applications: 1982-1992 Chevrolet Camaro L6 & V8--1982-1992 Pontiac Firebird Trans Am
TechSpec Engine Codes: V6--V8
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug w/ Dowty Oil Seal-- 1/8-inch NPT Plug-- 1/4-inch NPT Plugs--Mishimoto Lifetime Warranty
Features:Full aluminum radiator featuring robust TIG-welded construction
Two-row brazed aluminum core provides efficient fluid temperature reduction on the street or strip
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Polished aluminum end tanks enhance engine bay aesthetics
Includes Mishimoto M12 x 1.25-in Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty
Install Difficulty: 3

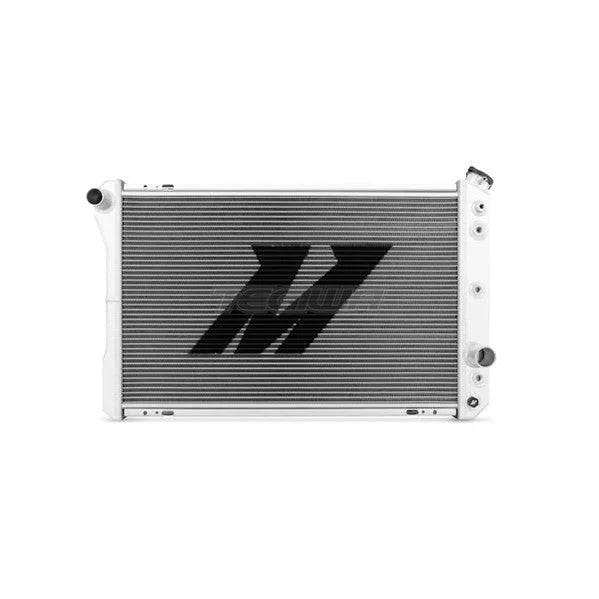

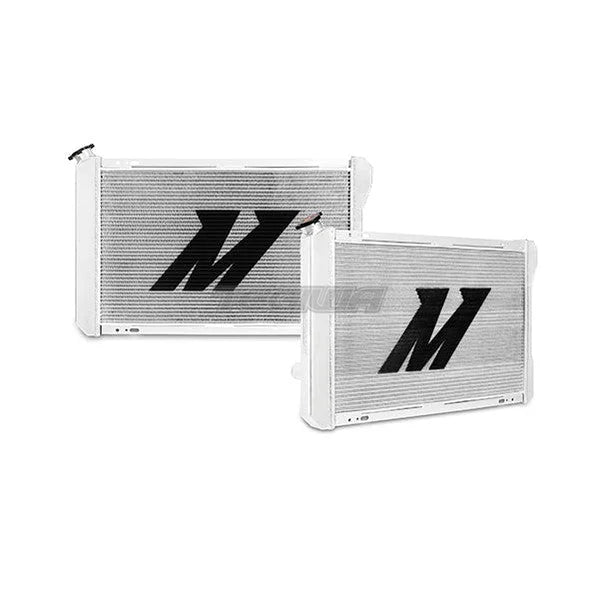

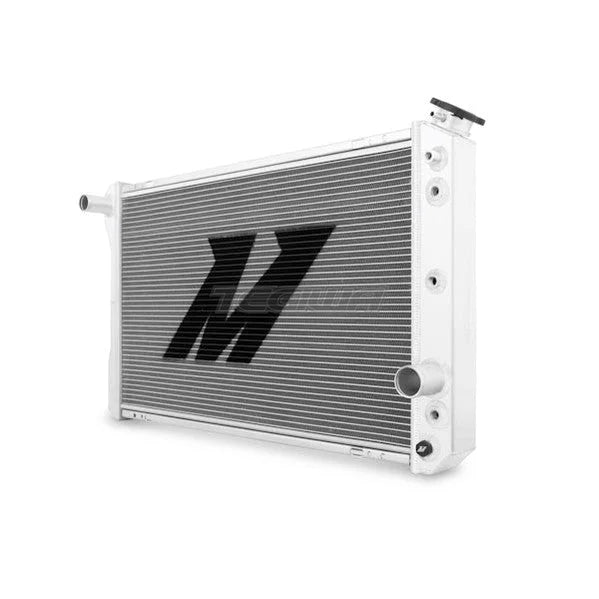

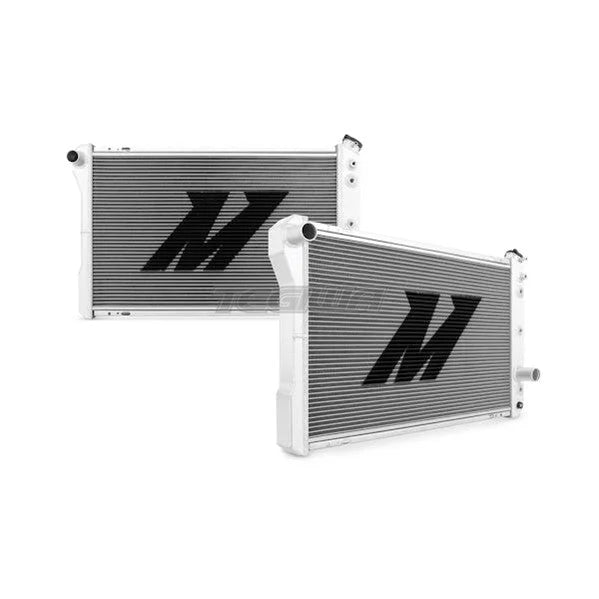

A street or track muscle car demands a reliable cooling system. Outfit your Chevrolet Camaro or Pontiac Firebird with the best upgrade in cooling efficiency that fits in your tight budget. The Mishimoto Aluminum Radiator utilizes a 2 row core with precision TIG welded aluminum end tanks for increased reliability and cooling efficiency. Not only will the Mishimoto radiator keep coolant temperatures at bay but the built in transmission cooler will improve the performance and extend the life of your transmission. The Mishimoto Aluminum Radiator is a direct fit product that requires no cutting or trimming and is protected by our lifetime warranty.
