TechSpec Overall Height (in): 31
TechSpec Overall Length (in): 18.75
TechSpec Overall Width (ins): 4.2
TechSpec Core Length (in): 26.2
TechSpec Core Height (in): 16.5
TechSpec Fluid Capacity (gal): 4.87
TechSpec Rows: 2
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.57
TechSpec Core Thickness (in): 1.41
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 162
TechSpec Material: Aluminum
TechSpec Applications: 1970-1981 Chevrolet Camaro--1970-1981 Chevrolet Camaro
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug w/ Dowty Oil Seal--(2) 1/8-inch NPT Plugs--Mishimoto Lifetime Warranty
Features:Direct fit for the 1970-1981 Chevrolet Camaro w/ L6 and V8 engines
Full aluminum radiator featuring robust TIG-welded construction
Two-row brazed aluminum core provides efficient fluid temperature reduction on the street or strip

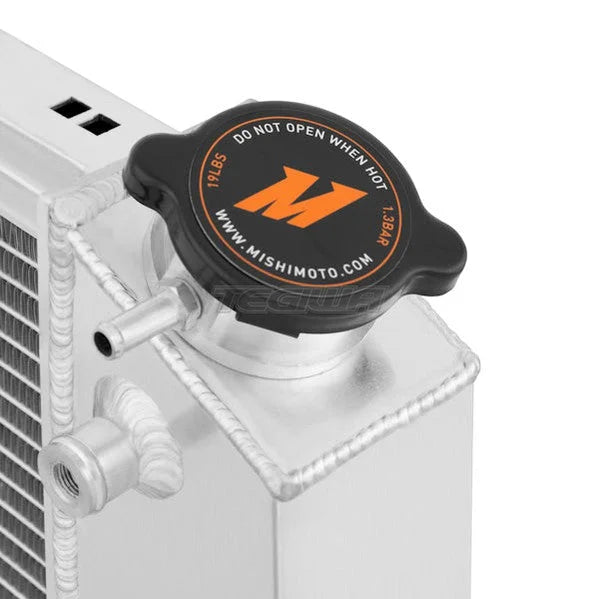

Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Polished aluminum end tanks enhance engine bay aesthetics
Includes Mishimoto M12 x 1.25-in Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
Mishimoto Lifetime Warranty
Install Difficulty: 3

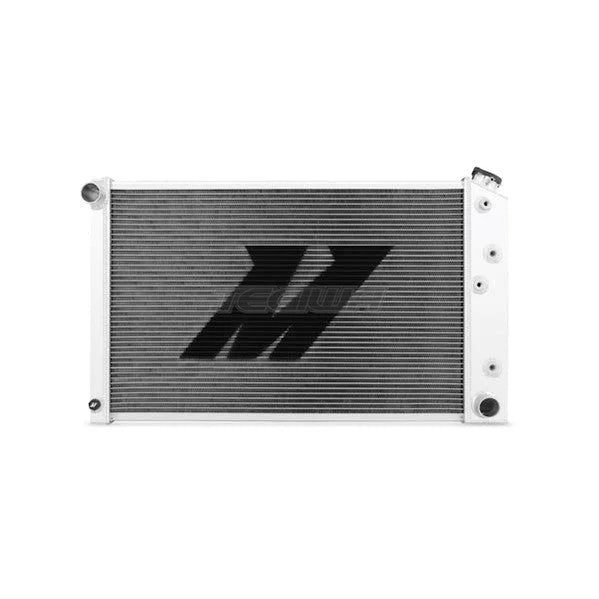

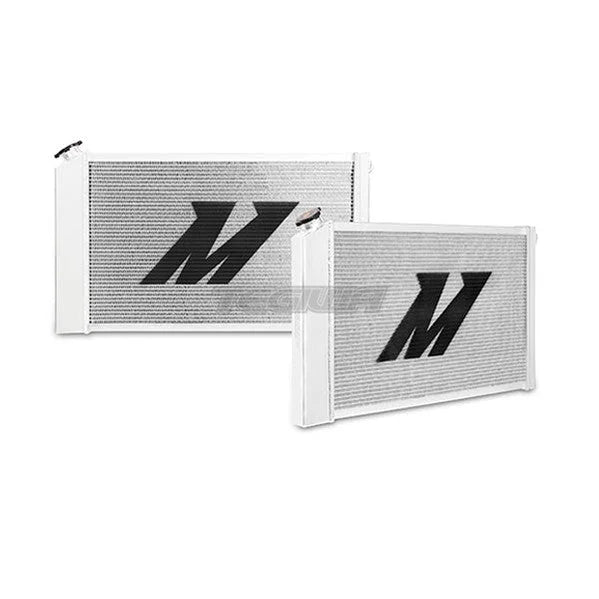

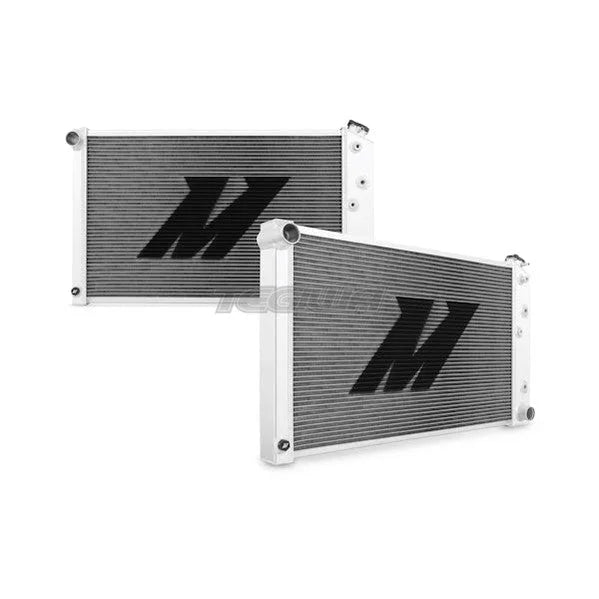

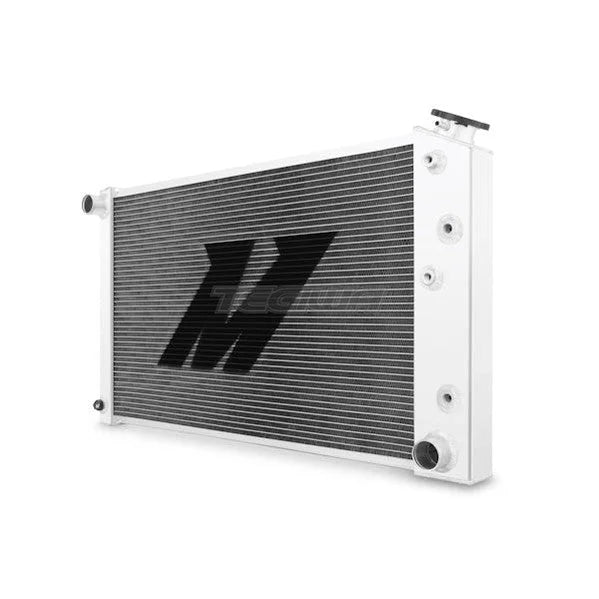

The Mishimoto performance aluminum radiator for the Chevrolet Camaro / Pontiac Firebird is an ideal upgrade to the OEM radiator. Whether you are cruising to a car show or slinging rubber at the strip an efficient cooling system is a must. The Mishimoto Chevrolet Camaro aluminum radiator features a 2 row core and high pressure radiator cap to keep your stock or modified small block temperatures in check. Not only will this radiator improve engine cooling but the incorporated transmission cooler will provide significant reductions in fluid temperatures. The Mishimoto Chevrolet Camaro radiator is crafted from high quality TIG welded aluminum with polished end tanks. This aluminum radiator is a direct fit unit and will not require any trimming or cutting and is backed by the Mishimoto lifetime warranty.
