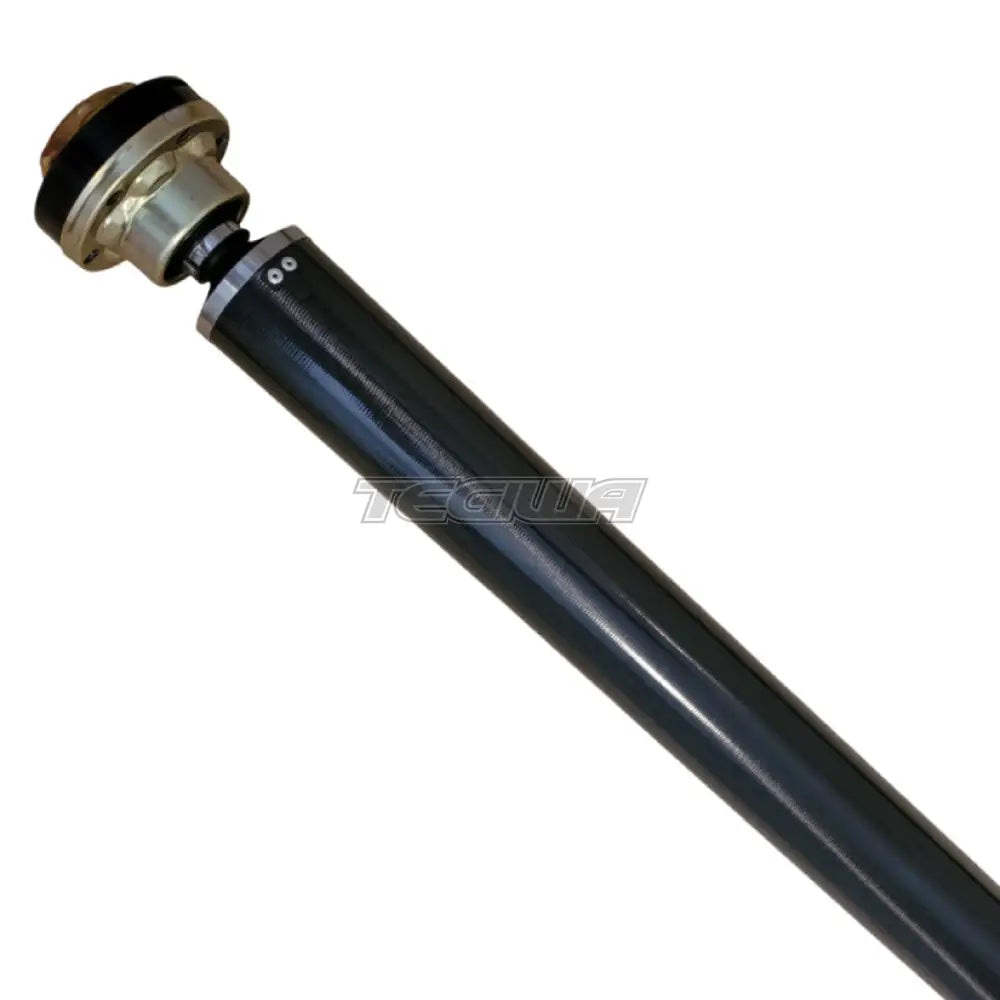

MFactory are proud to offer our 100% Dry Carbon Fibre 1pc Driveshafts (Propshafts). Over 6 years in development, we are confident that our driveshafts are the #1 performance carbon driveshaft on the market today!
Spun entirely from Dry Carbon Fibre with Forged 6061 Aluminum Ends, our driveshaft conversion is significantly lighter (most fitments weigh only 6kg!) than the oem steel driveshaft, offering smoother power transfer to the rear differential.
Each driveshaft is individually crafted, spun to over 12000rpm and tested on our torsional stress machine to over 5500nm without a hint of snapping!
Specifications
- Made from 100% Dry Carbon Fibre imported from Toray Japan
- Our driveshaft uses a UD (Uni-directional) carbon structure which consists of around 20 layers of carbon fabric (versus the traditional monofilament weave our competitors use). The reason for choosing UD is because it is both structurally stronger and more impact resistant; it does not explode in the same way as a traditional monofilament weave does when the carbon shears. Put simply, it is far superior in both quality AND safety
- Precision balanced to 12,000rpm
- Precision flanges/joints machined to within 0.02mm of oem tolerances
- Stress tested to withstand over 5500nm of torque
MFACTORY BMW FITMENT GUIDE
-
E36/E39/E46 All Fitments - THE LSD IS A DIRECT BOLT ON REPLACEMENT
-
E8X/E9X/E60 non 35-i - THE LSD IS A DIRECT BOLT ON REPLACEMENT
-
E8X/E9X/E60 35i AT - THE LSD IS A DIRECT BOLT ON REPLACEMENT
-
E8X/E9X/E60 35i MT < 03/2007 (inc. 335d) - THE LSD IS A DIRECT BOLT ON REPLACEMENT
-
E8X/E9X/E60 35i MT > 03/2007 (inc. 335d) - THE LSD REQUIRES EITHER THE OE CROWN WHEEL TO BE WELDED TO IT OR A NEW MFACTORY FINAL DRIVE FITTED (MF-TRS-02E25, MF-TRS-02E28, MF-TRS-02E31)
-
E8X/E9X/E60 35i DCT - THE LSD REQUIRES EITHER THE OE CROWN WHEEL TO BE WELDED TO IT OR A NEW MFACTORY FINAL DRIVE FITTED (MF-TRS-02E25, MF-TRS-02E28, MF-TRS-02E31)
-
F20/F30 All Fitments - THE LSD REQUIRES EITHER THE OE CROWN WHEEL TO BE WELDED TO IT OR A NEW MFACTORY FINAL DRIVE FITTED (MF-TRS-02E25, MF-TRS-02E28, MF-TRS-02E31)
