Applications:
- Custom setups - Race Applications
We stepped into the wiring market for a reason. To release what we feel is the highest quality and easiest to install conversion harness available. We €™ve used several of our competitor €™s harnesses and in short, we felt the need to make several improvements based on the flaws we encountered. Just like every other K-Tuned product, they don €™t leave our hands unless we feel that it is a top quality part that we would use on our own personal cars.

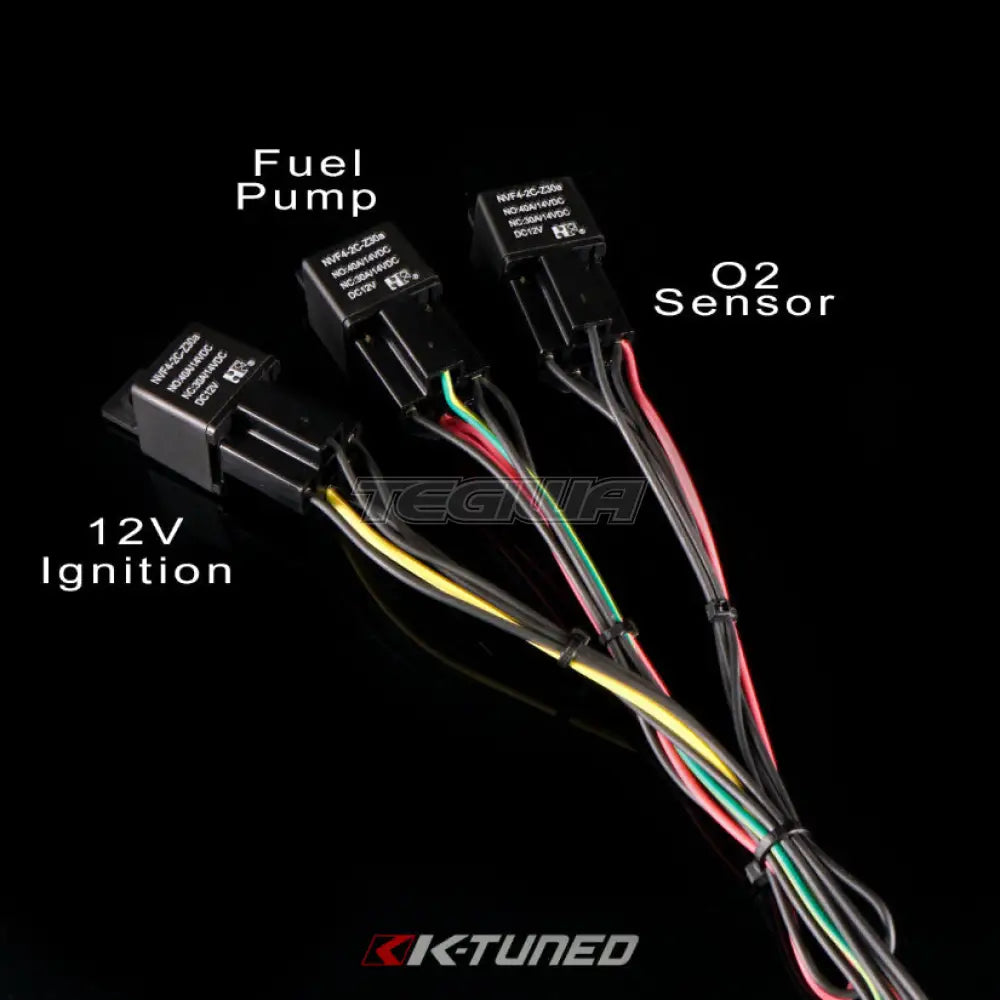

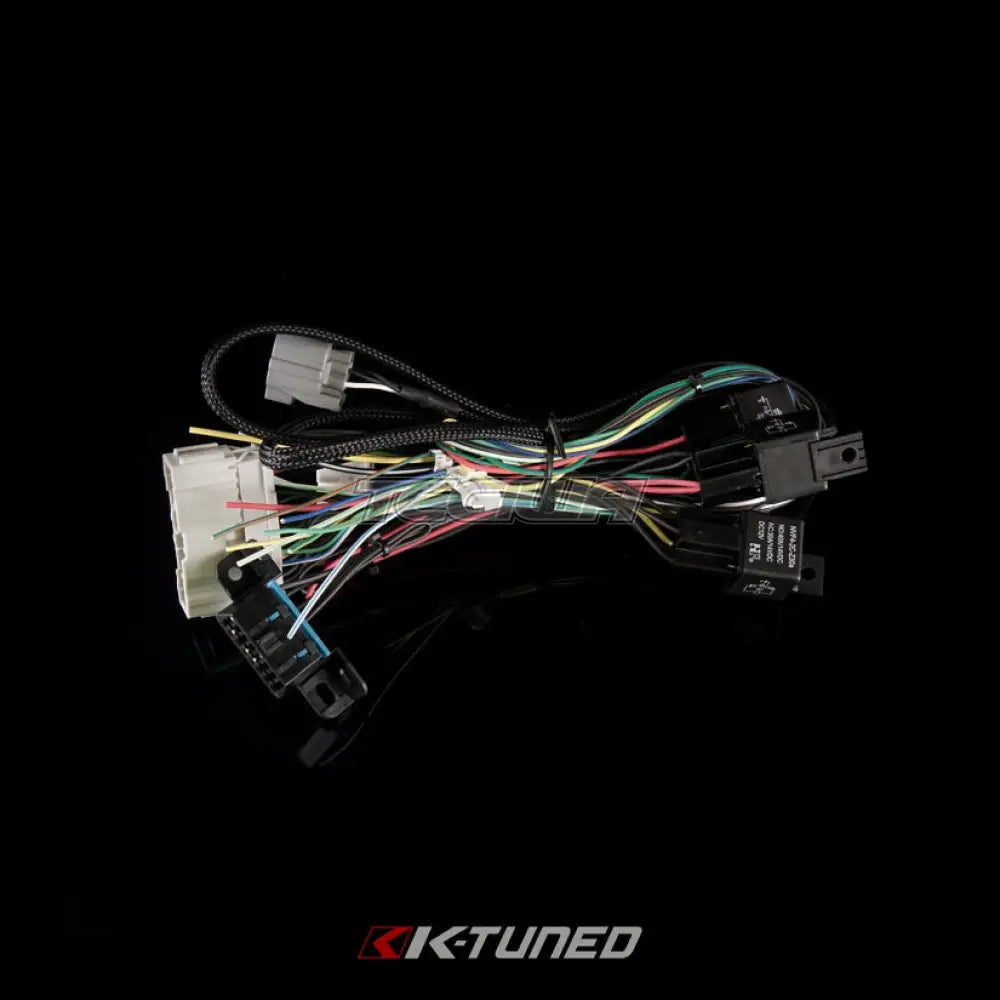

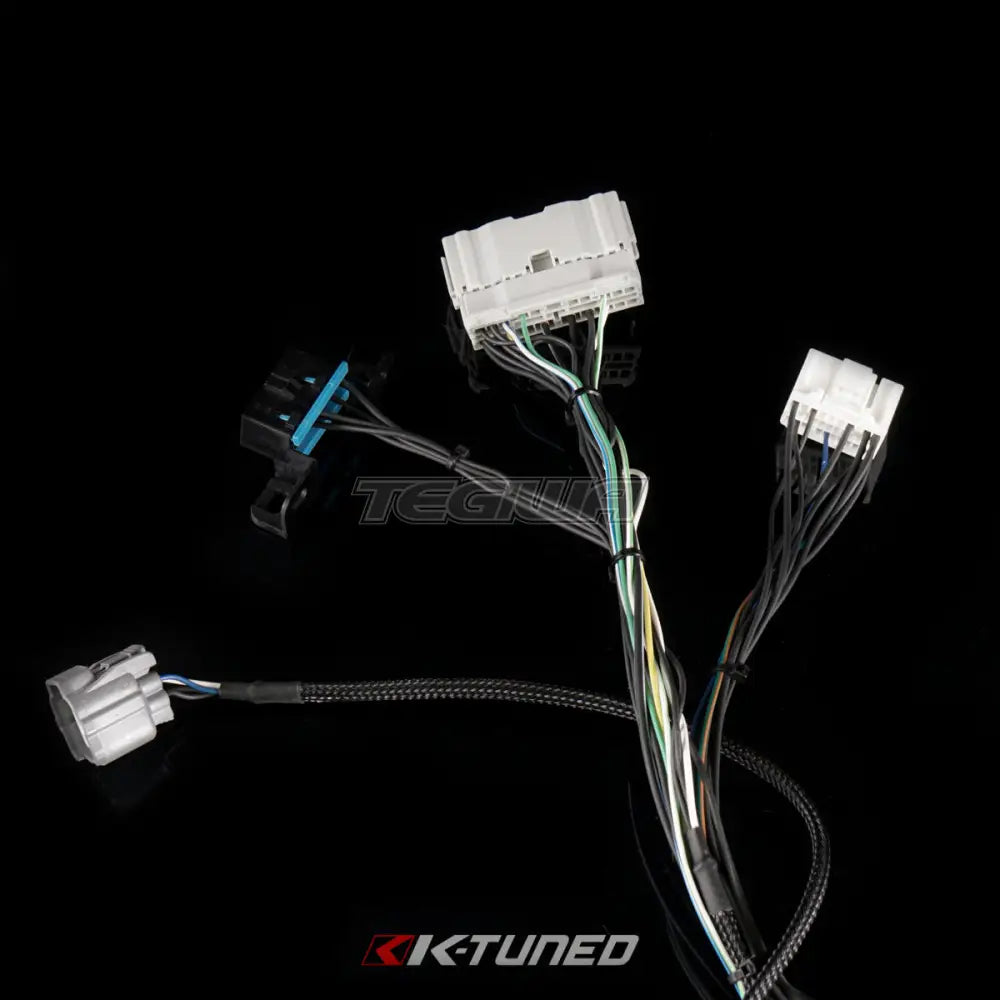

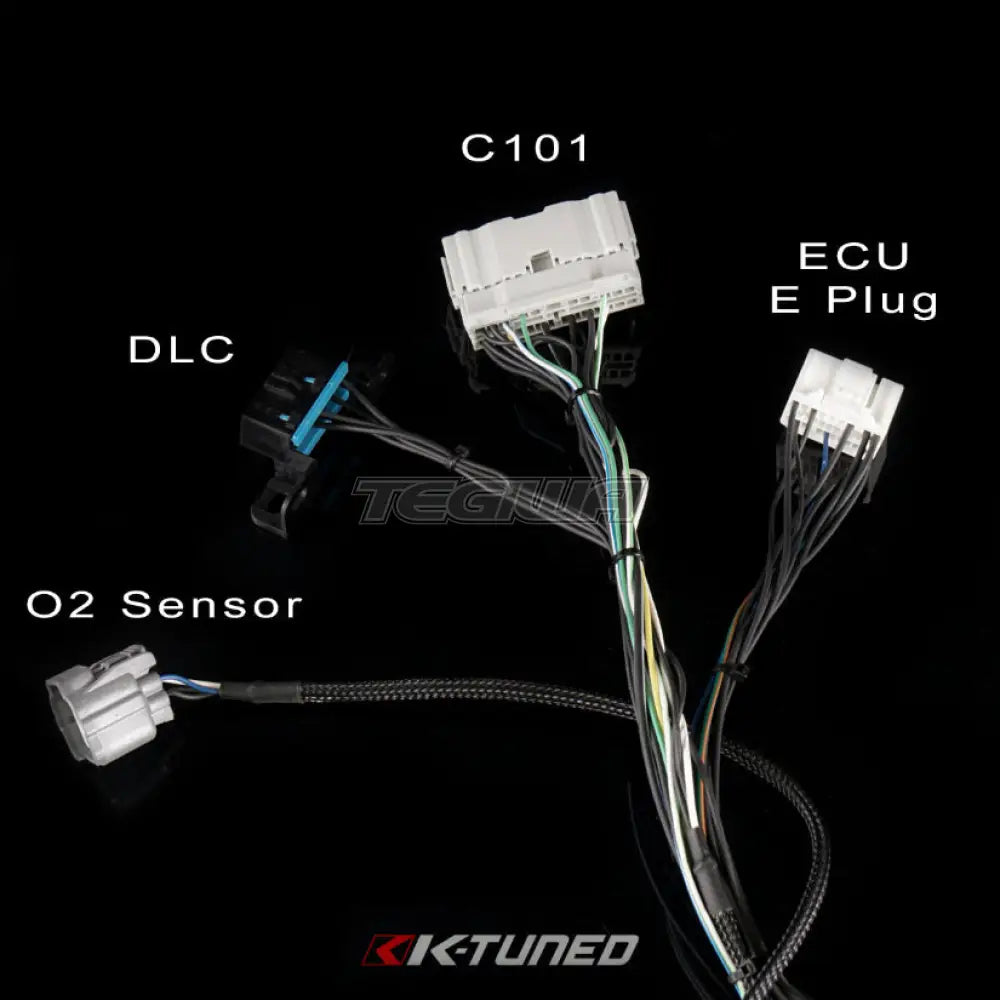

A K-swap conversion harness is a must-have part for any K-series engine swap. The harness is designed for custom applications. The harness includes plugs needed to connect to the engine harness, necessary relays, and labeled flying leads. This saves a lot of time sourcing plugs and figuring out wiring.
Loose wires
Universal K-Swap applications with custom in car wiring.
12V Constant Power Input - (Fused) - Red
12V Ignition Input - Key-On Power - Yellow
Starter Relay - Power Output / Momentary Switch - Black/White
Speedometer - Signal Output - White/Green
Tachometer - Signal Output - Blue
Check Engine Light - Ground Output - Green/Brown
Charge Light - Ground Output - White/Blue
Oil Pressure Light - Ground Output - Yellow/Red
Fan Control - Ground Output - Green
Fuel Pump - Ground Output - Green/Yellow
