Applications:
92-95 Civic EG
96-00 Civic EK
94-01 Integra DC2,
Car MUST be equipped with EKK2 Mounts and have K20A, K20A2, K20A3 or K20Z1 cylinder head.
Note:
* Does NOT fit K20Z3 / K24 style head (Coolant port on the side of the head)
* Using EKK1 may have fitment issues
Dimensions:
Radiator Core Dimension: 12' x 13' x 1.75'

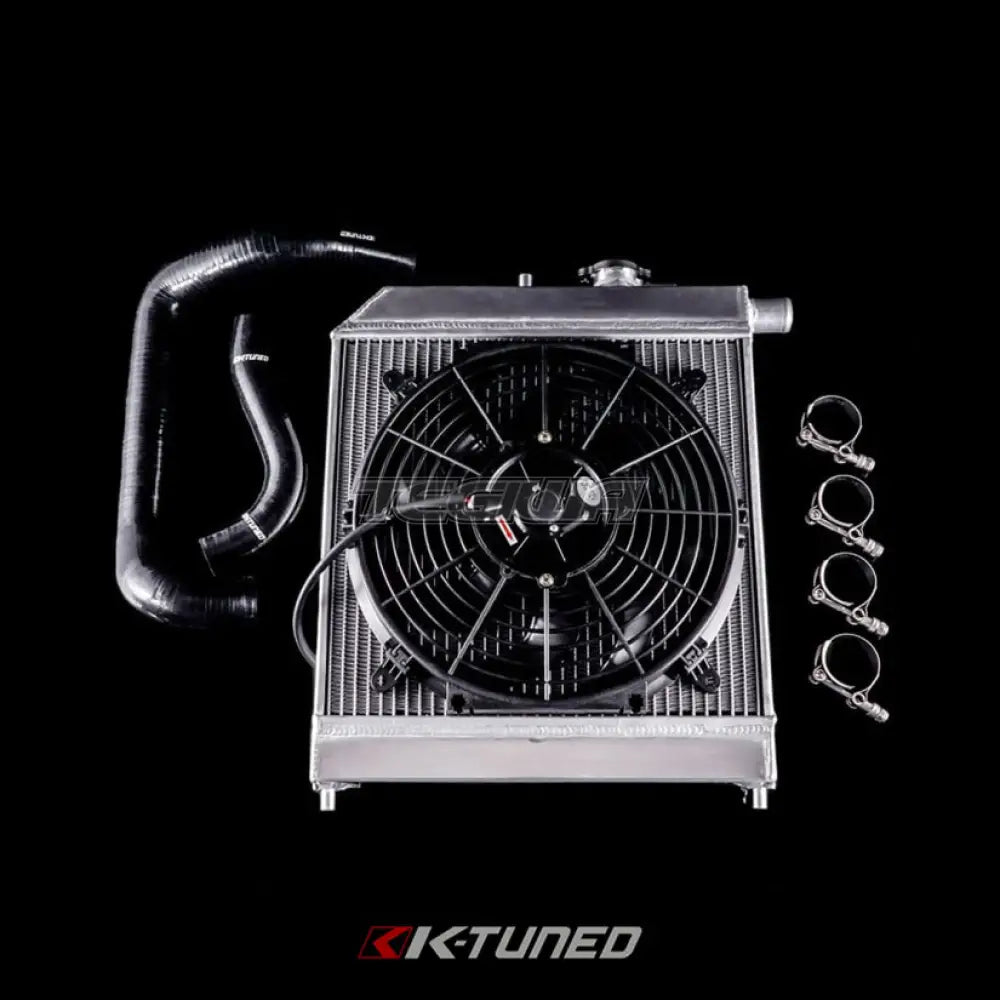

It took a couple years for us to design what we feel is the best K-series swap radiator available. Looking at current & past designs and their flaws, we finally came up with a rad design that meets our high standards. Our K-swap experience showed us that rad installs have usually required relocated rad brackets or modification to the rad itself. Not anymore! The K-Tuned Passenger radiator drops right into the oem passenger side location and requires zero modifications to make it fit. The kit includes our high quality aluminum rad, a set of our custom fitted hoses, SS T-bolt clamps, and a slim design rad fan with mounting ties.
K-Tuned K-Swap Passenger Side Rad Kit - with Fan/Hoses/Clamps
