J's Racing Wide Body S2000 Kit
J'S RACING has developed a wide body kit in order to realize the evolution of the Honda FR pure sports S2000 to the ultimate GT machines.
This wide body kit is not just a body for accommodating the enlarged suspension. In order to aim for the fastest S2000, we have generously put in the aerodynamic data we have cultivated in actual races and other competitions. Pursuing airflow from the front to the side and underbody, we have minimized the drag that has increased in the wide body. Furthermore, by increasing the downforce of the entire body, we have achieved a sense of stability on the circuit that has never existed before.
Uses a long nose bumper to reduce air resistance. The down wing is created by the under wing integrated front wing and the negative pressure generated by the aerodynamic treatment to the front steer fin. Not only that, the fins also exhaust the turbulence created in the fender and the hot air in the engine compartment.
The spartan rear fender adopts an outlet duct to discharge the turbulence generated in the fender. The diffuser shape on the rear bumper creates a downforce that sticks to the road surface throughout the body. Raise the cornering limit.
For the ultimate in materials, we have adopted a cross matte finish .
Normally, a non-woven FRP mat is used on the back side, but using a cloth material on the back side improves strength. Than the normal material lightweight, high rigidity and was realized. You can also expect the effect of not disturbing the air flow passing through the back side.
Cooling performance is also improved by installing the optional air intake and brake duct . Along with the dedicated GT wing and single canard, it is an indispensable item for circuit driving.
The aura floating in the exterior is just as powerful as the title of ""Satan"". Designed for the fastest, this wide-body kit is the ultimate for the S2000.
[Enlarged width: F: Each side +60mm R: Each side +75mm]
â—ŽKit contents
Front bumper, under panel, front wide fender, side step, front fin, rear wide fender, rear steer fin, rear board fin, rear bumper, rear bumper wing, fuel cover
J's Racing has developed a pure sports wide-body conversion kit for the ultimate evolution in S2000 aero parts, which has been designed to bear a semblance to that of a Formula GT racing machine.
The wide-body carbon aero kit was produced with aerodynamic data including hands-on track statistics.With the wide-body design and undercarriage panels, an ordinary S2000 will be transformed into the ultimate track car.This aero kit minimizes the drag while creating whole body downforce; thus achieving unprecedented stability on the race circuit.
The extended frontend have been incorporated into the design to reduce air resistance and create downforce by the negative pressure from the top combined with the undercarriage panels below.In conjunction with the front bumper canards nose spoiler, rear wing and backside diffuser: the ideal downforce will Be created throughout strategical key points of the vehicle.Air intakes and brake ducts also increase cooling performance. Collectively, this formulates for faster corner and better stability at high speeds.
[+75 mm width expansion and +60 mm to the total length]
Rim Size(Camber -4.30 Degrees)
F: 18 Inches / 9.5J / +15 Offset
R: 18 Inches / 10.5J / +13 Offset
The Full Kit Includes:
- Air Intake and Brake Ducts (optional)
- Front Bumper, Canards (optional) and Lower Lip
- Wide Front Fenders
- Undercarriage Paneling
- Side Step Skirts
- Rear Wide Fenders
- Rear Fin
- Rear GT Wing (optional)
- Rear bumper
- Fuel Lid Cover
- Replacement Exhaust System (optional)
Please note: the original body panels need to be modified in order to accommodate this wide-body aero kit and the original exhaust layout must be changed.
[Reference value]
Wheel size mounted on the vehicle in the image
F: 9.5J×18 +15
R: 10.5J×18 +13
*The camber value of the vehicle in the image is -4.30°. If the camber value is different, the above wheels may not fit.
Warning/Caution
For mounting, body processing such as fender is required.
All fittings are for the current car. Please install at a professional shop with know-how. Please do not wear it in DIY.

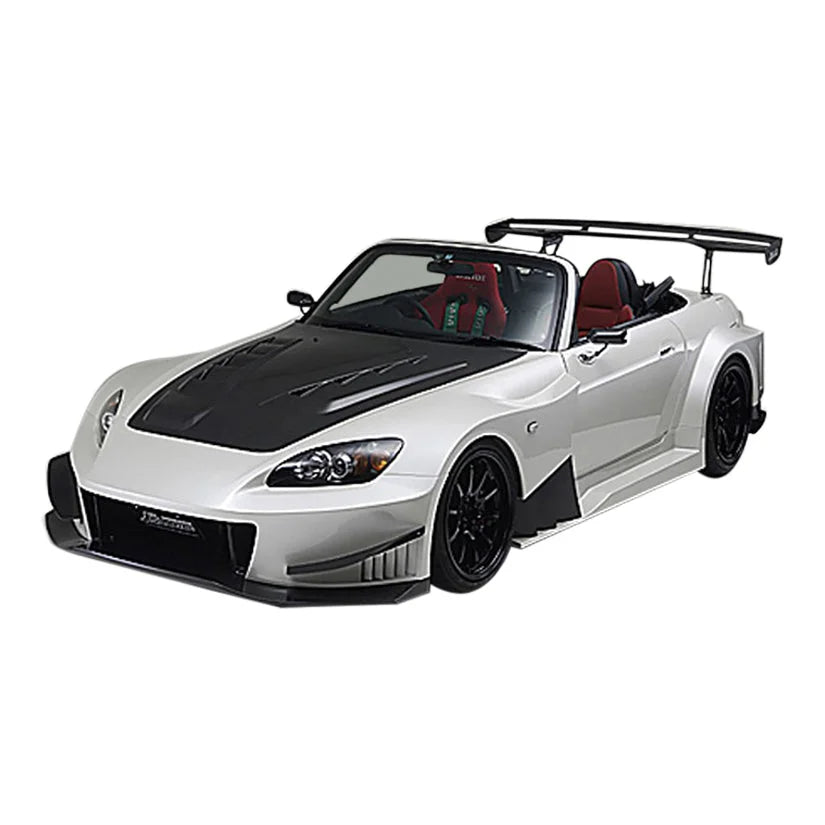

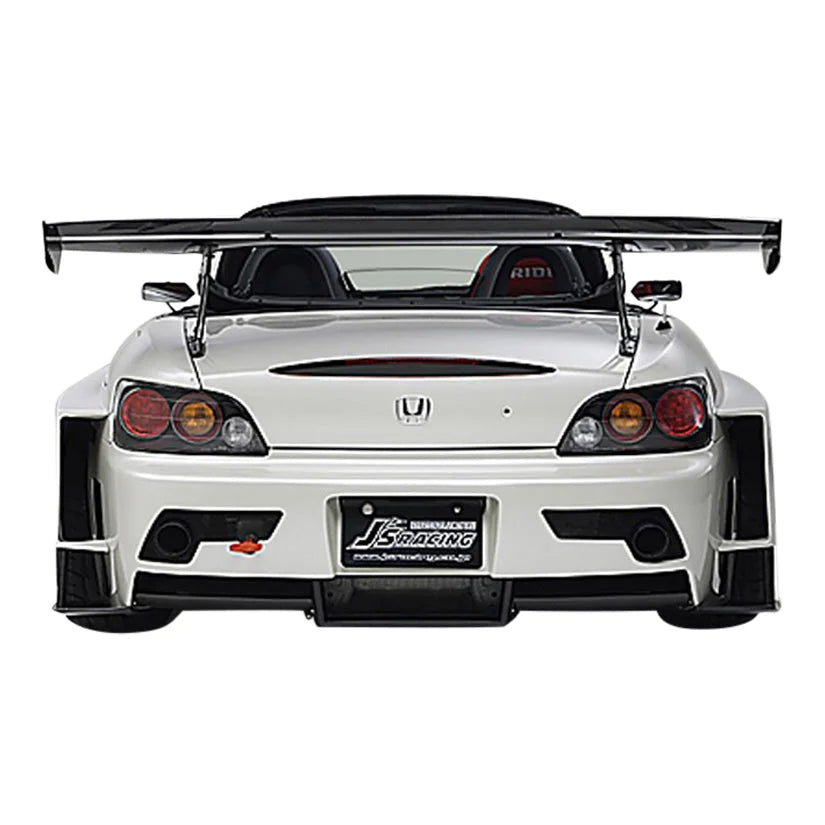

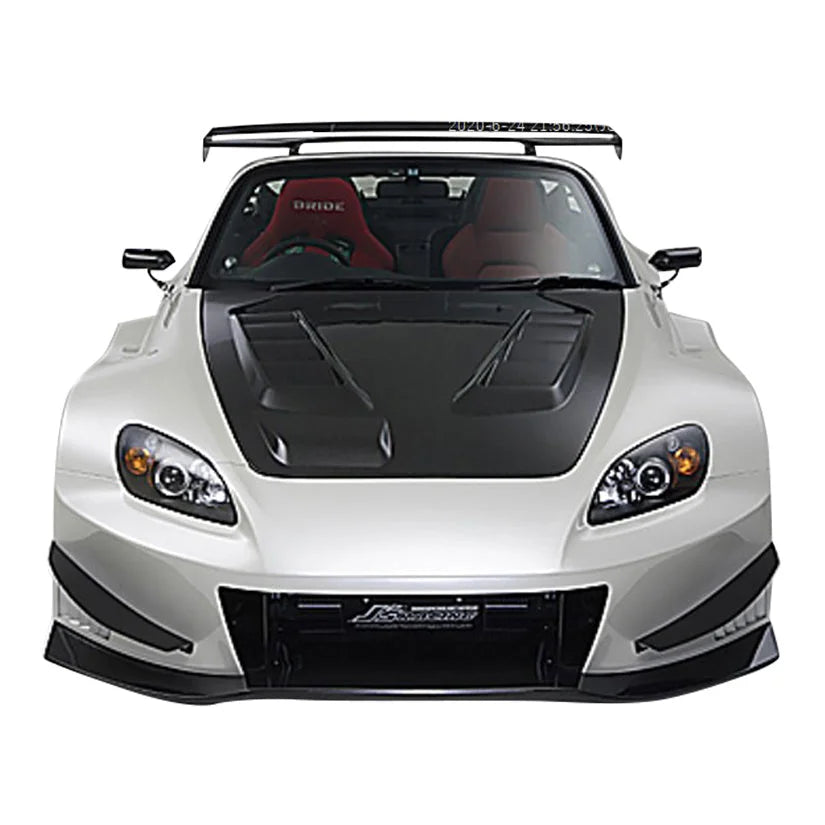

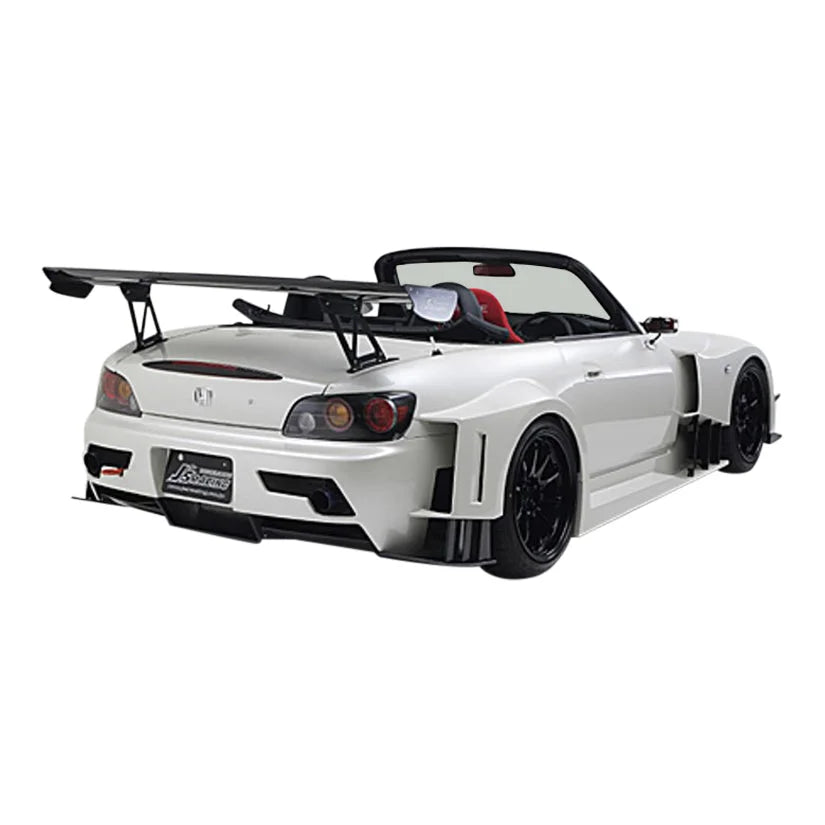

Installed in the vehicle in the image:
- Bonnet
- Trunk
- Dedicated GT wing
- Aero mirror
- Air intake
- Brake duct
- Single canard
- Wheel
- Tow hook
- Special muffler
- Rear bumper net is not included in the kit.
*Exclusive muffler required. Normal shaped muffler cannot be used.
*A structural change notification is required for use on public roads. (Cannot be used on public roads with a single canard attached)
* When driving at high speed or on a circuit, please make sure to take measures to prevent the front under panel from falling off during construction. If an unexpected impact is applied due to contact with the road surface, etc., it may be damaged during driving.
