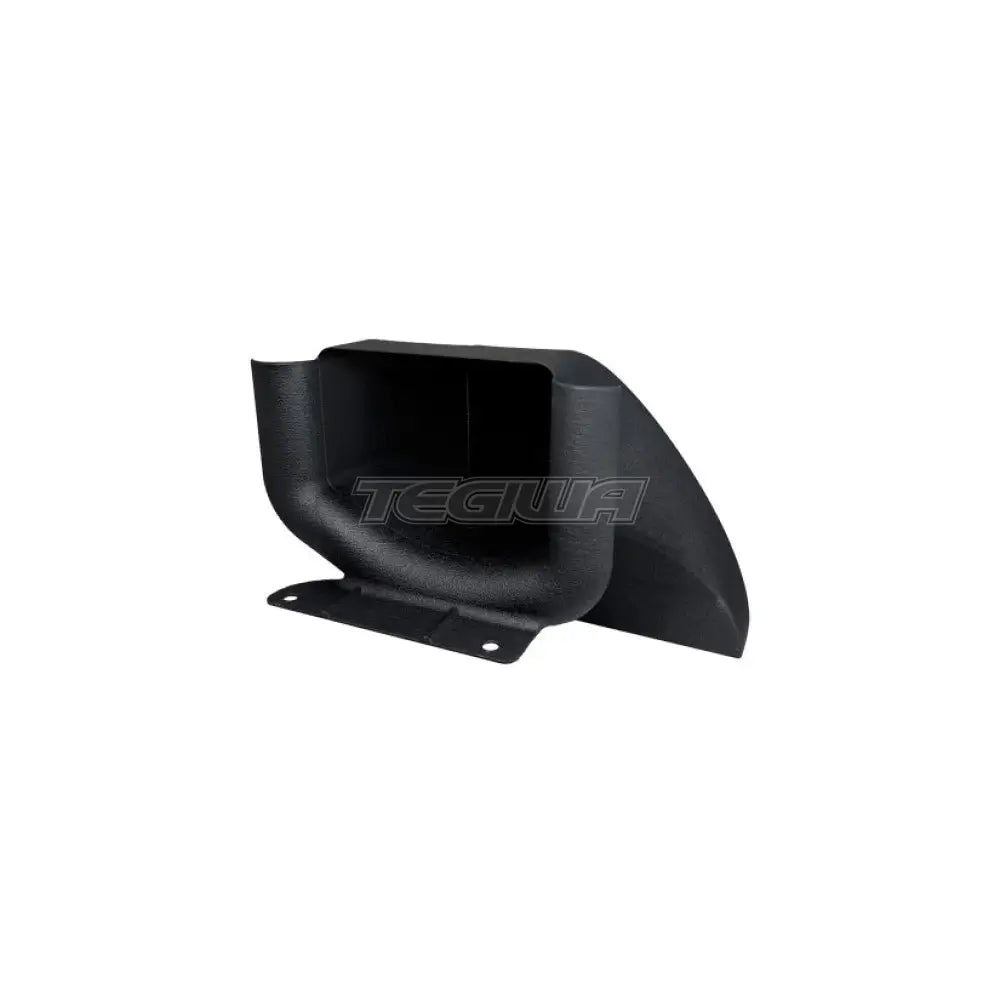

Our 3D Printed Yaris GR cold air intake scoop, is manufactured using a high quality SLS Polypropylene material.
Designed to be a direct replacement for the restrictive standard cold air feed, the ITG scoop upgrade fits directly into the original mounting locations and lower airbox aperture for an easy upgrade. The secondary feed channels large volumes of additional cold air to the vacuum operated solenoid flap, resulting in lower intake temperatures & increased turbo efficiency.
The stock airbox works well collecting air from two separate locations. The first being a small, but effective direct air feed from the slam panel, the second from a solenoid operated flap underneath, which opens at approximately 3000 rpm. Testing both on the road and dyno, we quickly understood the air intake temps on the stock setup can be quite high. We took the decision to laser scan the area in question, which enabled us to generate a CAD model of a much larger ‘bell mouth’ shaped front scoop. The scoop also has a secondary air feed, designed to push a volume of air towards the airbox flap. This provides a steady feed of cooler air in this void, ready for when the flap opens, to be immediately taken in. The results have been excellent! This small easy to fit modification has reduced air intake temps by 5 to 7 degrees!
