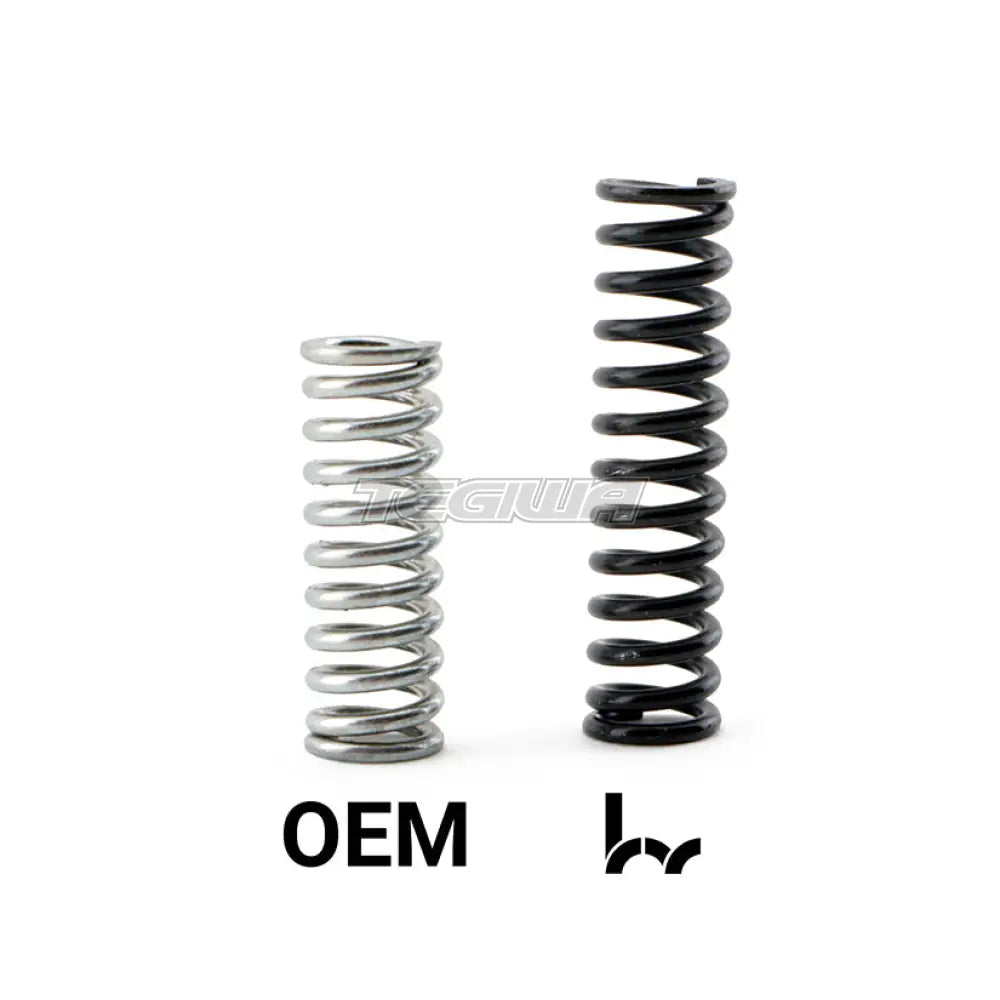

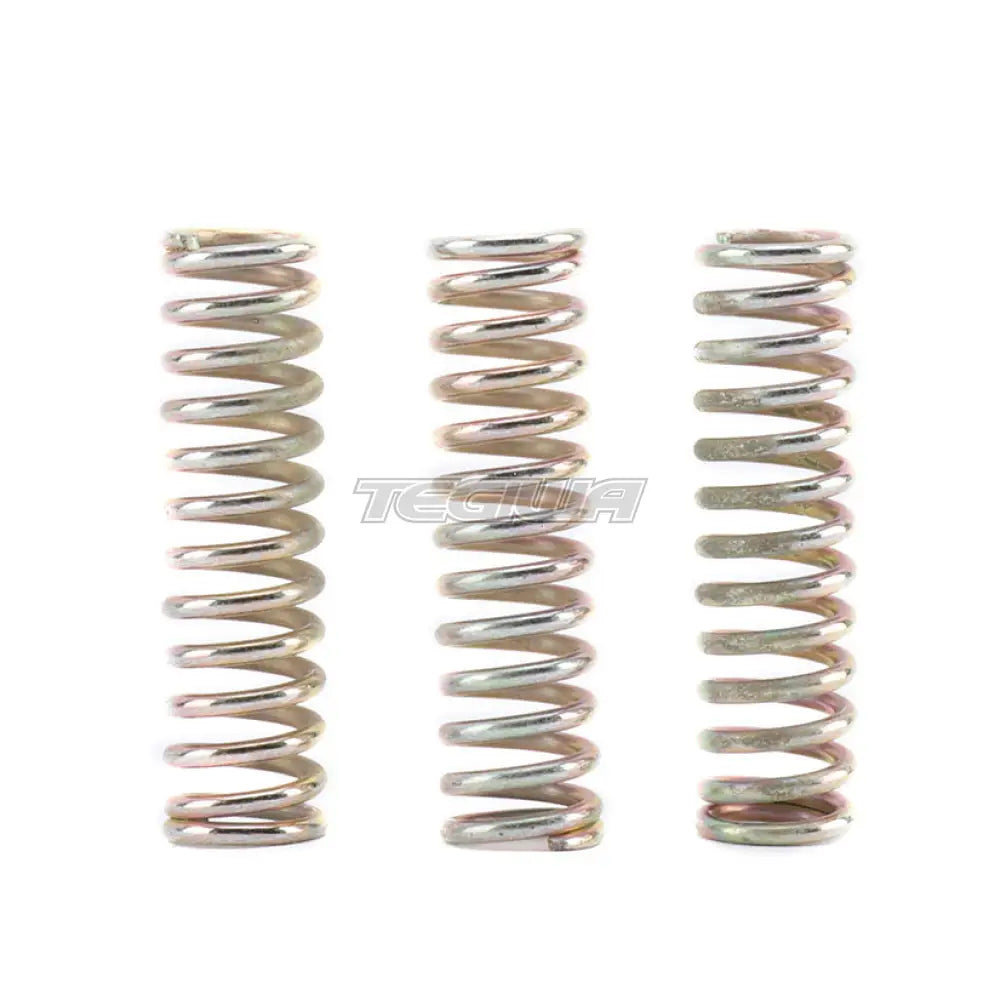

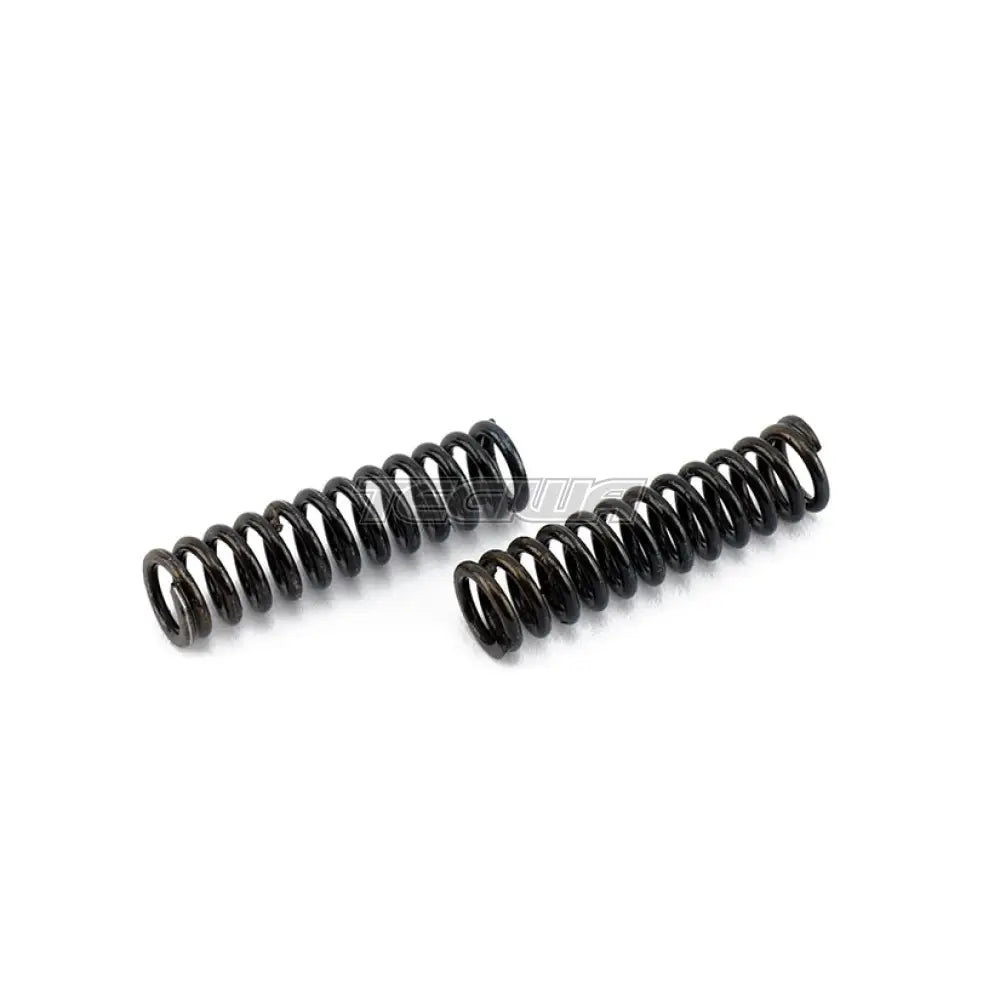

Our heavy-duty transmission detent springs offer an increase in the preload and 30% stiffer spring rate over the factory parts which aids the transmission gear selector fork. Upgrading these springs will make your gear engagements a bit sharper since they replace the soft OEM ones.
Our Heavy-Duty Gear Selector Springs offer an upgrade in the side-side movement of the shifter, these detent springs offer a forward-back upgrade. An immediate change in feel will be noticed once installed. Replace the worn-out detent springs and add new life to your gear changes.
Depending on the application, these springs are more than 30% stiffer than the stock Honda hardware. Please use the installation instructions as a general guide for the Honda L-Series transmission.
Be sure to torque the Honda K-Series transmission detent bolts to 16 lbf-ft (22 N-m / 2.2 kgf-m). You will use all three springs. NOTE - Only the CRZ and Honda Fit RS 6spd will use all three springs. The Honda Fit / Jazz 5spd uses 2 springs.
Our heavy-duty transmission detent springs offer an increase in the preload and 80% stiffer spring rate over the factory parts which aids the transmission gear selector fork. Upgrading these springs will make your gear engagements a bit sharper since they replace the soft OEM ones.
Our Heavy-Duty Gear Selector Springs offer an upgrade in the side-side movement of the shifter, these detent springs offer a forward-back upgrade. An immediate change in feel will be noticed once installed. Replace the worn-out detent springs and add new life to your gear changes.
Depending on the application, these springs are more than 80% stiffer than the stock Honda hardware. Please use the installation instructions as a general guide for the Honda K-Series transmission. All other Honda transmission installations should refer to the factory Honda manual.
Some Honda transmission applications will only use 2 of the 3 springs. For instance, the Honda B-Series transmission has only two external detent springs, and the other is internal. You will have to remove and separate the transmission case to change the third spring. The internal spring actuates the 5th/reverse gate.
Be sure to torque the Honda K-Series transmission detent bolts to 16 lbf-ft (22 N-m / 2.2 kgf-m). You will use all three springs.
Our heavy-duty transmission detent springs offer an increase in the preload and stiffer spring rate over the factory parts which aids the transmission gear selector. Upgrading these springs will make your gear engagements a bit sharper since they replace the soft OEM ones.
For the last year, we have been testing these springs in our own Civic Type R which sees constant abuse on the street and race track. When these are installed in the Civic Type R, you'll notice a more responsive shifter, meaning a faster to center position, as well as more pronounced gear engagements.
An even bigger difference will be felt in the Civic Sport and Civic Si since the spring L/R movement force is increased by over 100%. The F/B movements are over 25% stiffer which offers a crisp gear engagement. .
Be sure to torque the Honda K-Series transmission detent bolts to 16 lbf-ft (22 N-m / 2.2 kgf-m).
17-21 Civic Type R FK8 K20C
18% Stiffer (Front/Back) compared to OEM
97% Stiffer (Left/Right) compared to OEM
17-21 Civic MT (Sport / Si) L15
2% Stiffer (Front/Back) compared to OEM
124% Stiffer (Left/Right) compared to OEM
Hybrid Racing offers Transmission Detent Springs for a variety of Honda models. Please see additional info for more fitment details.
