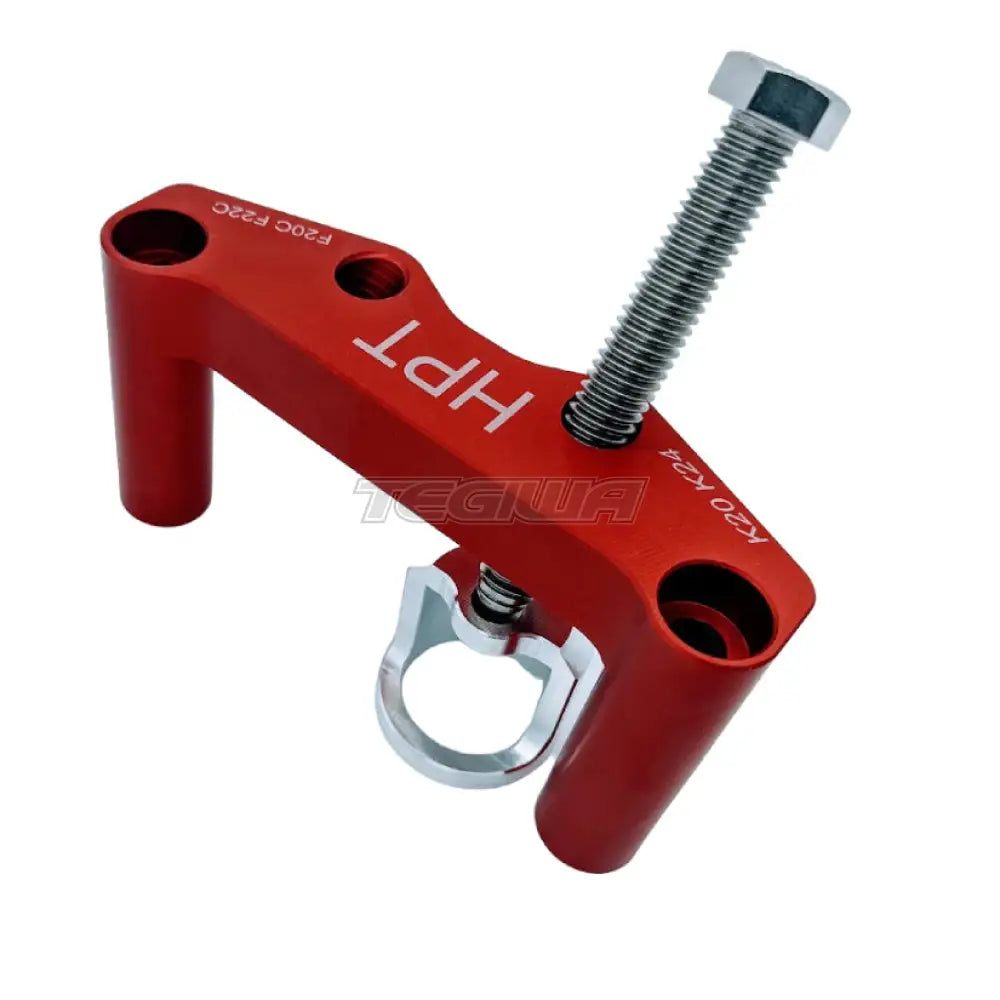

HPT Valve Spring Compressor Tool- for Honda K20a, K24a, F20C, F22C (VERSION 2.0)
We went back to the drawing board and completely redesigned our venerable valve spring compressor tool and made it even better for S2000 owners!
The previous version tool had some interference while trying to work with the engine in the car as it would interfere with the intake manifold and fuel rail.
Our version 2.0 tool solves that problem completely. We also redesigned the retainer cup out of one piece billet aluminum for more strength and opened up the cup working area almost 30%!
We include all hardware needed to bolt on and go as well as assembly lube for the botls and to help stick those pesky keepers to the HPT screwdriver.
Features:
-One Piece Billet Aluminum Construction
-Red Anodized Durable Finish
-Laser engraved
-Works without removing the cylinder head
-100% Made in the USA
This tool makes it easy to replace valve seals, valves, springs, and retainers while the engine is in the car.
How to use:
The tool is attached to the head with 2 bolts. Once the tool is attached to the head you put the retainer cup (comes with kit) on the retainer/spring(s) you want change. Lubricate the adjustment bolt, and tighten the bolt that will push down on the retainer allowing you to easily remove the keepers. Next simply UN-tighten the bolt and remove the retainer cap to remove the spring(s). Repeat process as necessary.

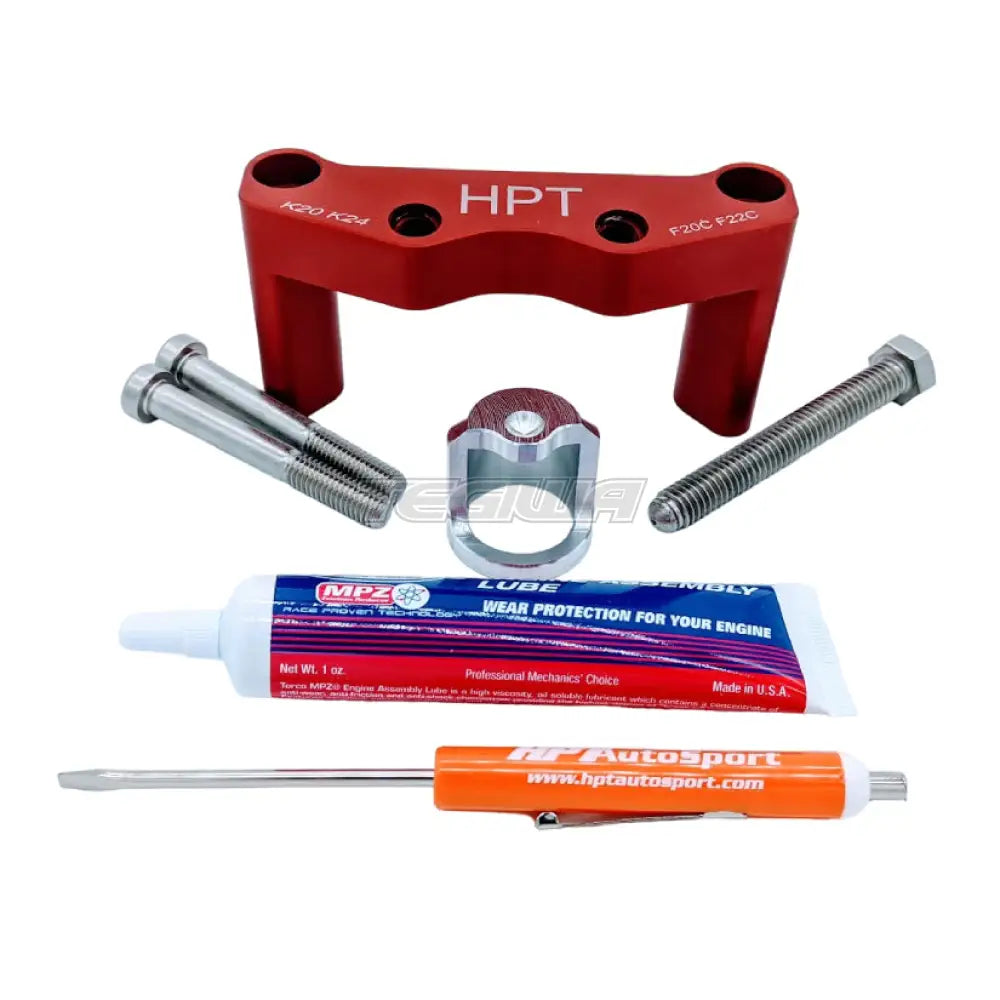

Kit includes:
-Valve Spring Tool Retainer cup
-Two bolts to secure to cylinder head
-One long adjustment bolt
-HPT magnetic screwdriver
-Torco lube
Part # HPT-K20-VST
Application: K20, K24, F20C, F22C Engines
Notes: No Returns on Tools. Please double check your application before purchase
