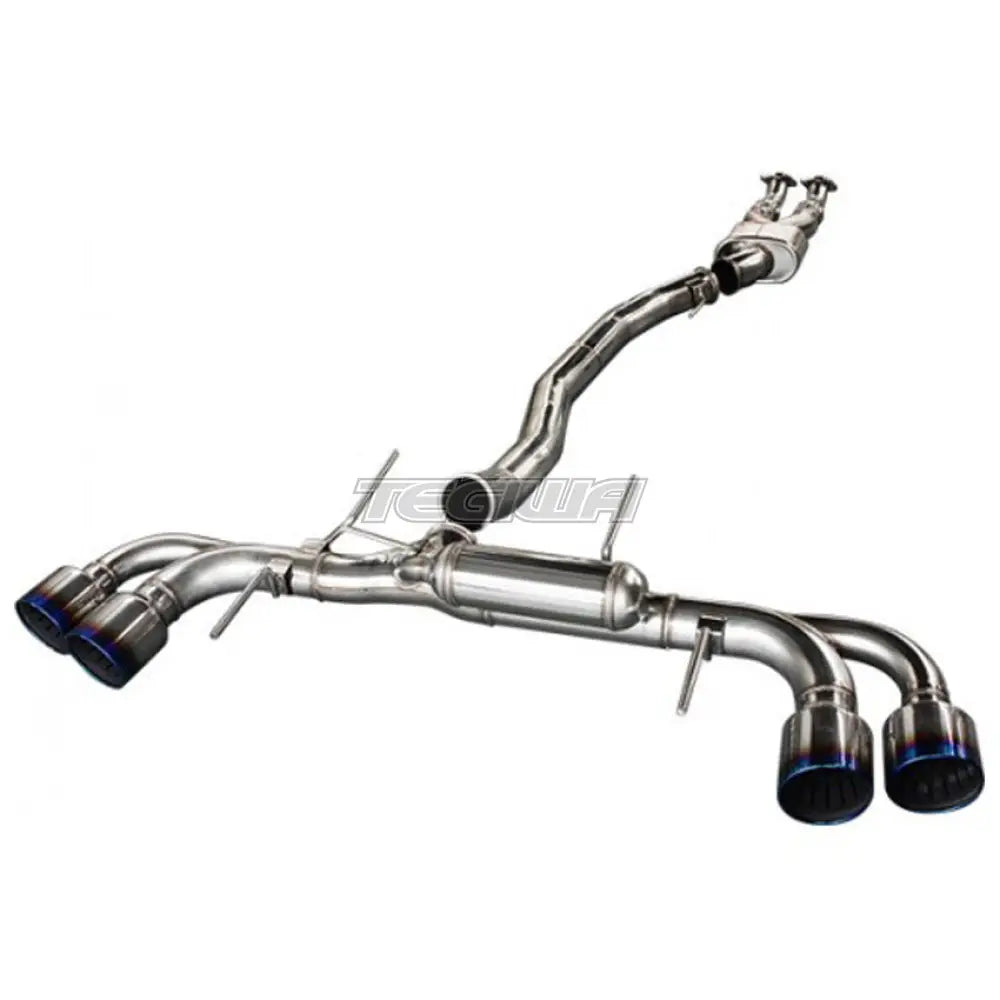

HKS Racing Muffler V2 R35 Nissan GT-R Silenced

exhaust/racing_muffler.png"" style=""border-width: medium; border-style: none;"">

Code No. 31008-KN002

Ultimate High Performance 1000PS+
This exhaust system was designed to reduce the exhaust restrictions to an extremely low level. The target was a racing specifications vehicle with over 1000ps engine output.The maximum pipe diameter is 101.6mm. The exclusive design pipe after the stock secondary catalyzer eliminates the restriction created by the stock flange and increases the engine output to a higher level. Sound level and tone are tuned to deliver comfortable racing exhaust note.

exhaust/db_muffler/img/31008kn002.jpg"" style=""border-width: medium; border-style: none;"">

exhaust/db_muffler/img/31008kn002_muffler.jpg"" style=""border-width: medium; border-style: none;"">

Cert. No.




Vehicle

GT-R

Model

R35

Engine

VR38DETT

Model Year

07/12 -

Shape of muffler

Silencer ver
(RACING MUFFLER)

Main material

SUS304(*2)

Diameter of tip

124

Diameter of center pipe

φ74.7×2→φ101.6→φ85×2(*3)

Close noise level

Stock

L88 R89

HKS

L109 R109

About road clearance(*4)

Clearance

Portion of the kit

110mm (Mid Pipe)

Remarks

※Ground Clearance is -15mm of the stock.

Product Weight

exhaust/db_muffler/img/31008kn002_zu.gif"" style=""border-width: medium; border-style: none;"">

Remarks

※1 Sound level 109dB when using with HKS GT1000

About HKS muffler

*1: About silencer shell type of Silent Hi-Power
TYPE-S/Oval silencer for noise reduction.
TYPE-H/Round silencer for performance.

*2: Main material in the component figure.

： SUS304/High quality stainless steel.
： SUH409/Stainless steel commonly used for stock exhaust.

*3: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*4: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

★ Exhaust noise level at idle.
