HKS Oil Cooler Kit - Combine With Stock

The Lancer Evolution I X has high stock oil cooling system, but HKS has made it even better.

It's very important to control the oil temperature to enjoy driving.

Features

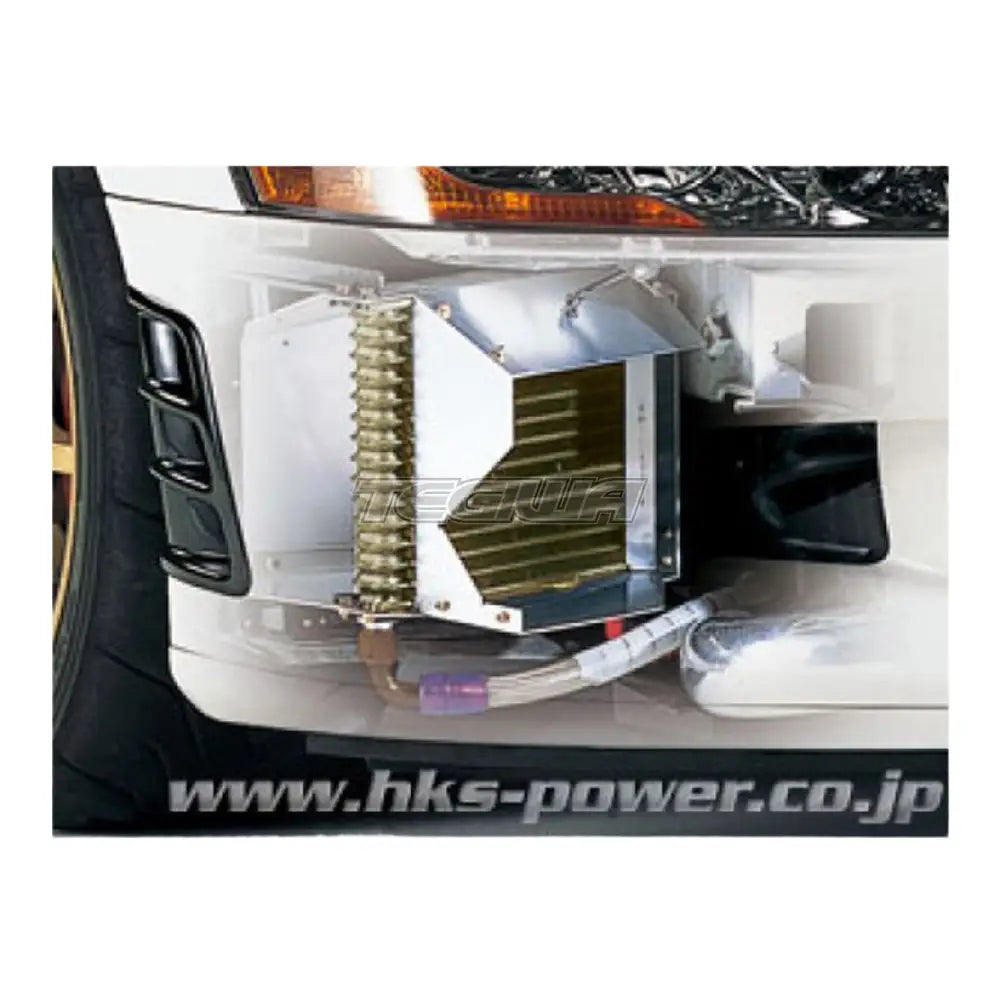

We have put twin core oil cooler in the left bumper which use the stock oil cooler together.

As the oil line gets longer the oil pressure loses. But this kit will have more pressure than stock because HKS designed core will not lose the pressure.

With the separate low temp. thermostat (15999-AM001), it will have better performance.

The water temperature rise can be prevented with the low oil temperature.

For HKS intercooler piping kit(the air guide modification installable even for a stock piping) needs to move or change to a new washer tank (Nissan stock 27480-H1001) when using intercooler spray because you need to remove intercooler spray tank.

Oil pan oil temperature comparison (at Fuji Speedway racing course)

TEST CAR SPEC.

- Racing Suction Kit

70008-AM005

- Intercooler Piping Kit

13002-AM002

- Stainless Front Pipe

14018-AM001

- METAL CATALYZER

33005-AM002

- Hi-Power Muffler SPEC-R type B

31025-AM003

- Oil cooler Low Temp. Thermostat

15999-AM001
