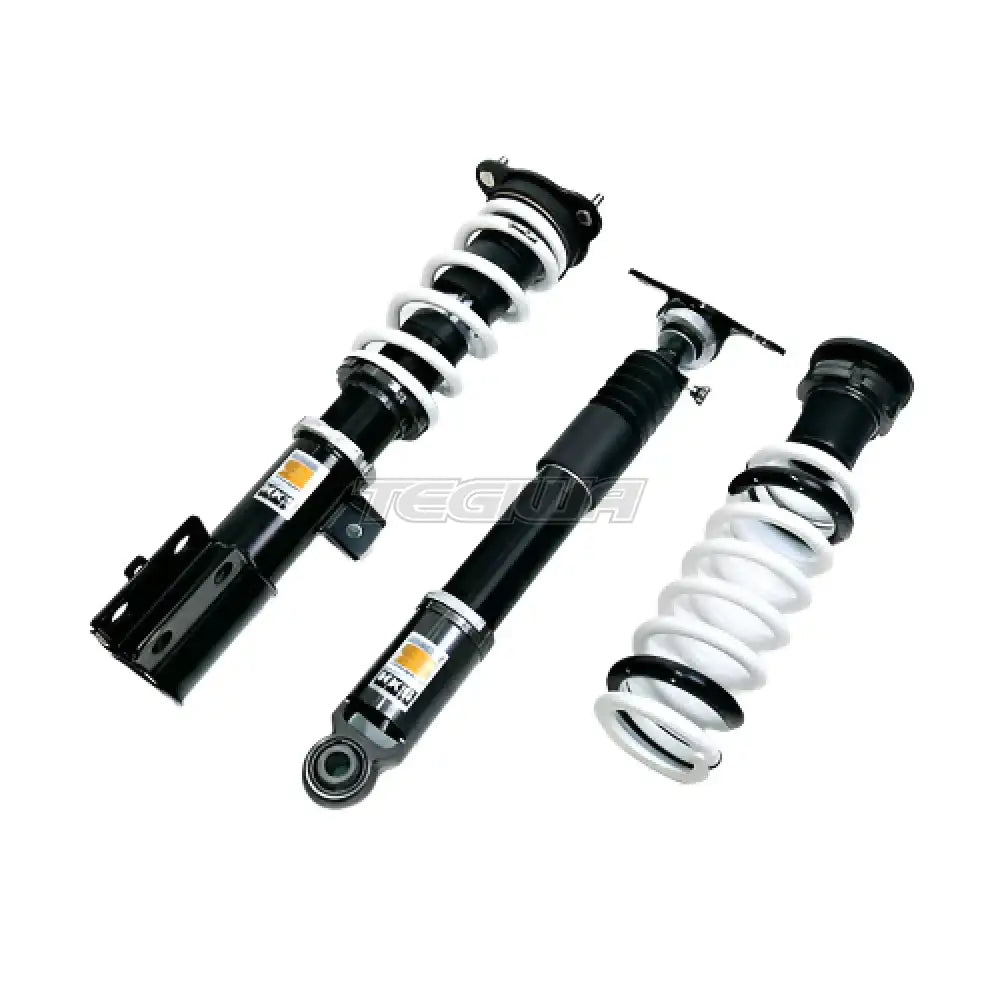

HKS are known to be obsessed with High Quality and HKS Hipermax S Adjustable Coilovers for the GR Yaris Gen 2 are no exception.
Integration of quality over cost principles of tuning is something that HKS built their reputation on.
Without compromising the OEM ride quality, HKS have improved the ride comfort required for everyday use and sports performance
such as roll rigidity in a well-balanced way.
The upper mount shape has been changed in the Gen2. A reinforced rubber mount has been adopted for the HKS original dedicated upper plate. Aiming for a damping characteristic that is smooth and supple while also having a stiff feel - stability and
controllability at the limit have also been significantly improved.
Rather than using the same settings as the previous model, we have performed special tuning to match the dynamic characteristics in the Gen2.
We also tested the newly added AT vehicle. Concluding, it provides the best ride comfort for both MT and AT vehicles.
Spring Rate
- Front (F): 69 N/mm (7 kgf/mm)
- Rear (R): 59 N/mm (6 kgf/mm)
Free Spring Length
- Front (F): 200 mm (Straight barrel)
- Rear (R): 250 mm (Straight barrel)
Set Height When Shipped
- Front (F): -24 mm (Range: 0 to -63 mm)
- Rear (R): -22 mm (Range: +1 to -55 mm)
Upper Mount
- Front/Rear: Reinforced rubber mounts
Spring Rate Adjustment
- Front (F): +10 N/mm (1 kgf/mm)
- Rear (R): +10 N/mm (1 kgf/mm)
