HKS Hipermax Drag Coilover Suspension Kit Toyota Supra JZA80

Code No. 80250-AT002D

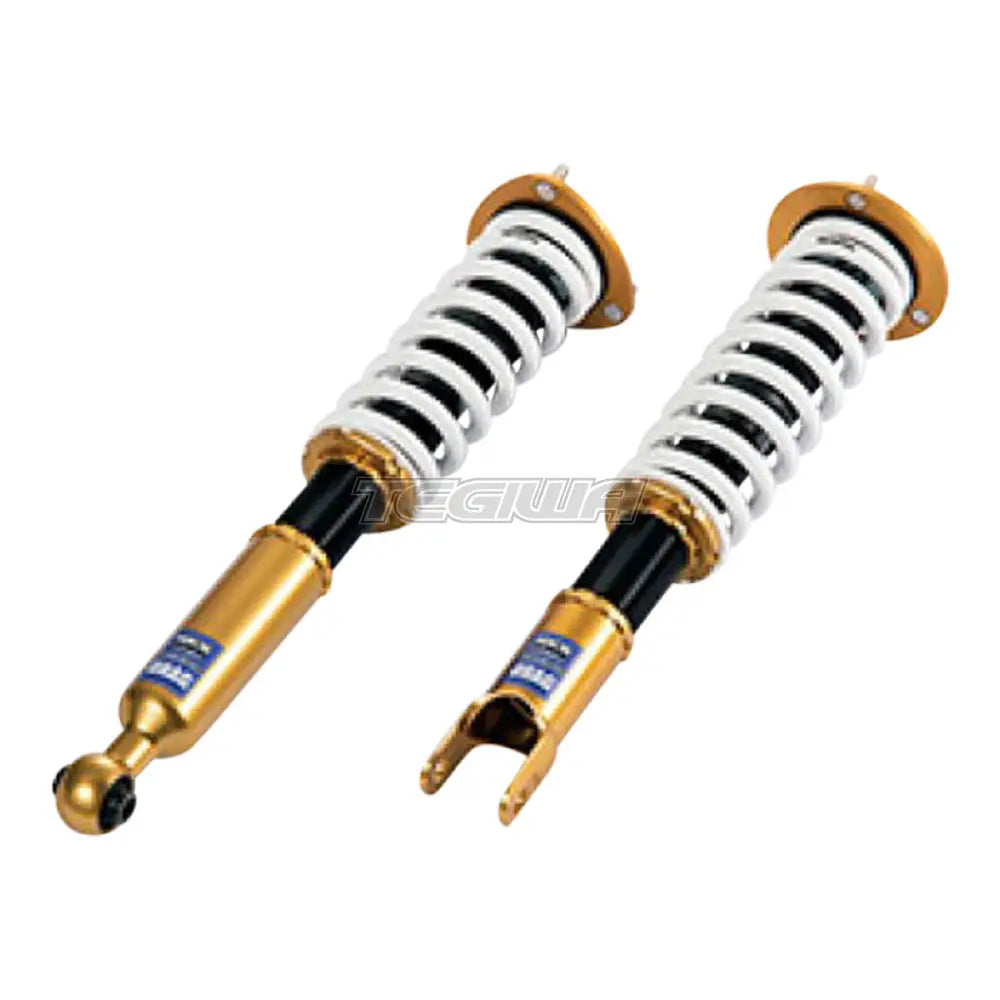

â–²The above photo is an item for JZA80.

Return of Drag Specification Dampers. Introducing the latest technologies to suit modern drag racing requirements.

Application

Specification

Engine

2JZ-G(T)E

Model Year

93/06 - 02/07

Remarks

Not compatible with the model equipped with REAS.

FRONT

REAR

Damping force adjustment

30 steps

30 steps

Base valve

-

-

Height adjustable lower bracket

â—‹

â—‹

Upper mount

Spherical bearing

Spherical bearing

Inverted/Normal type

Normal

Normal

Damper/Spring layout

Coilover

Coilover

Spring rate change at factory

â—‹

â—‹

Damping force adjustment with wire

-

-

Helper spring
(Spring rate N/mm)

-

-

Ride Height

mm

Factory *2

Test data

Adjustable range
High - Low *3

Drivable range
High - Low *4

FRONT

Ride height *1

709

-

709 ～ 587

709 ～ 622

Against stock

+17

-

+17 ～ -105

+17 ～ -70

REAR

Ride height *1

666

-

668 ～ 558

668 ～ 628

Against stock

-2

-

0 ～ -110

0 ～ -40

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.

Kit information

Spring of Full Kit

F

R

Spring rate N/mm(kgf/mm)

88 ( 9 )

59 ( 6 )

Free height (mm)

250

300

Spring type

Straight

Straight Barrel type

Recommended range to change spring rate N/mm(kgf/mm)

※ ±10 ( 1 )

※-

Specification of damper

F

R

Damping force (Rebound/Damping)N*

630 / 1800

4400 / 270

Default position of dial

15段

15段

Remaining damper stroke (Rebound/Damping)mm

66 / 50

46 / 90

* The value of the damping force is at piston speed of 0.1m/sec.

Setting data

F

R

Default

Test

Drivable limit
High *

Drivable limit
Low *

Default

Test

Drivable limit
High *

Drivable limit
Low *

Length of
case (mm)

411

-

411

362

354

-

356

346

Spring
Set length(mm)

245

-

245

←

278

-

278

299

Length to ride hight
adjuster (mm)

70

-

70

21

80

-

82

51

Lever ratio

1.78

1.31

* Refer to the above explanation *3 of ride height information for drivable high and low limitations.

Test vehicle information

F

R

Vehicle weight kg

837

693

Tire size (Air pressure) kPa

235 / 45 - 17 ( 250 )

275 / 40 - 17 ( 80 )

Wheel size

* JJ × ** inset **

* JJ × ** inset **

Alignment
(Toe/Camber)

Test data

*** mm / -* °**'

*** mm / -* °**'

Standard value

IN * ± * mm / -* °**' ± **'

IN * ± * mm / -* °**' ± **'

* Test data at HKS.

Parts List * It may be changed without prior notice.

Point

Drag specification damper is returned with the latest technologies taking over the proven performance of HIPERMAX II DRAG damper. Setting range is dramatically improved by new spring rates and damping force specifications, and shock-body length adjustable design.
