Model: Honda Civic Type-R EP3
E/G Type: K20A
Remarks: UK/Euro cars

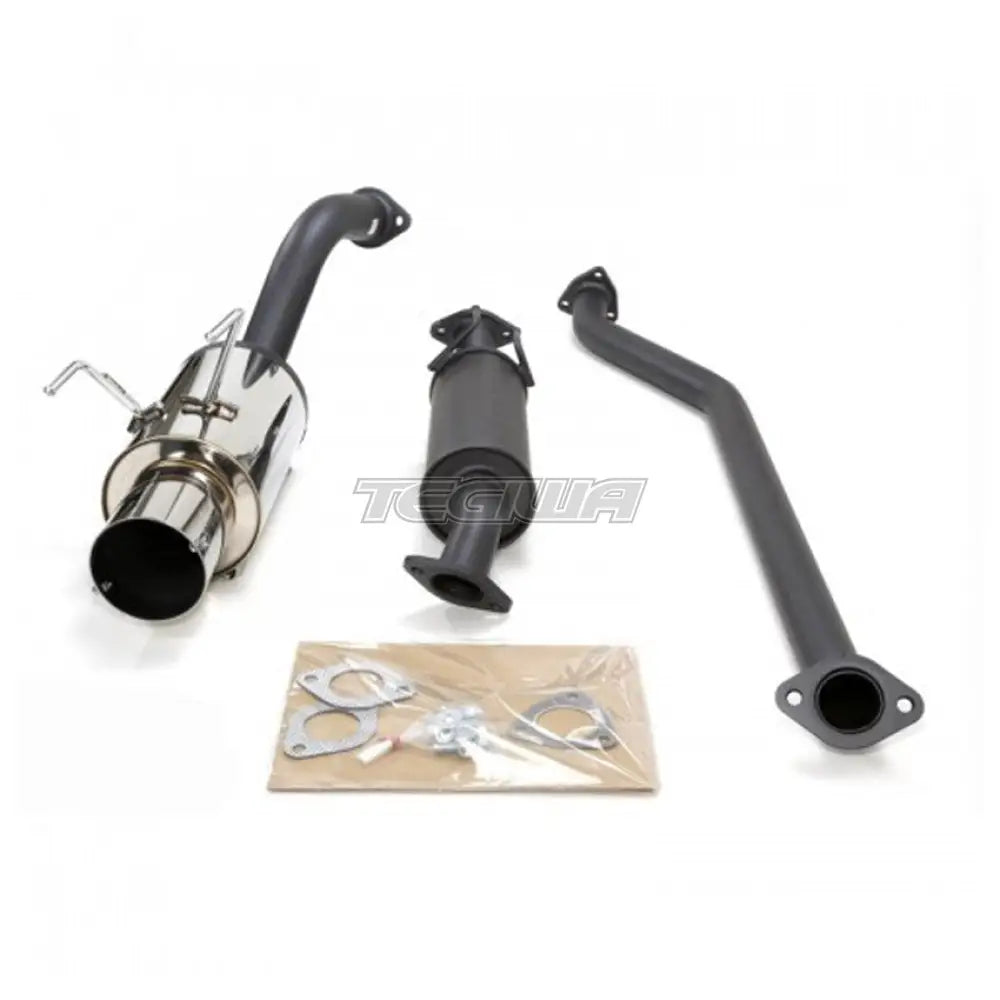

Cat back system
Hi-Power 409 mufflers offer a cost effective solution for your sports muffler needs.
The rear section is made from SUS304 grade stainless steel for a high lustre finish and the piping section which is not visible once fitted is made from coated SUH 409, reducing the cost.
SUH409 has other benefits such as being more resistant to thermal expansion and improved acoustic properties. SUH409 has the ability to absorb more sound than SUS304 which allows Hi-Power 409 mufflers to have a straight through design without fear of excessive noise.
The piping diameter is not uniform. Pipe work between cat and first silencer is 50mm then increases to 60mm after silencer to exit can. 120mm tail tip.
The real street sports muffler.
Hi-Power 409 mufflers offer a cost effective solution for your sports muffler needs. The rear section is made from SUS304 grade stainless steel for a high lustre finish and the piping section which is not visible once fitted is made from coated SUH 409, reducing the cost. SUH409 has other benefits such as being more resistant to thermal expansion and improved acoustic properties. SUH409 has the ability to absorb more sound than SUS304 which allows Hi-Power 409 mufflers to have a straight through design without fear of excessive noise.
Efficient exhaust gas flow by the pipe layouts.
Aggressive exhaust sound.
""JASMA"" approved.
The material of main silencer and tip are made of SUS304. Pipe portion, which is difficult to see, is made of SUH409. This combination enables good appearance and high cost performance.
Proven ""Advantex* glass wool"" (Continuous fibeer glass wool).
* Advantex is a registered trademark of Owens Corning.
We get asked frequently what replacement gaskets will fit this exhaust; you can use 34001-AK001 for both of the 2 bolt gaskets and T-9977021 for the single 3 bolt gasket.
