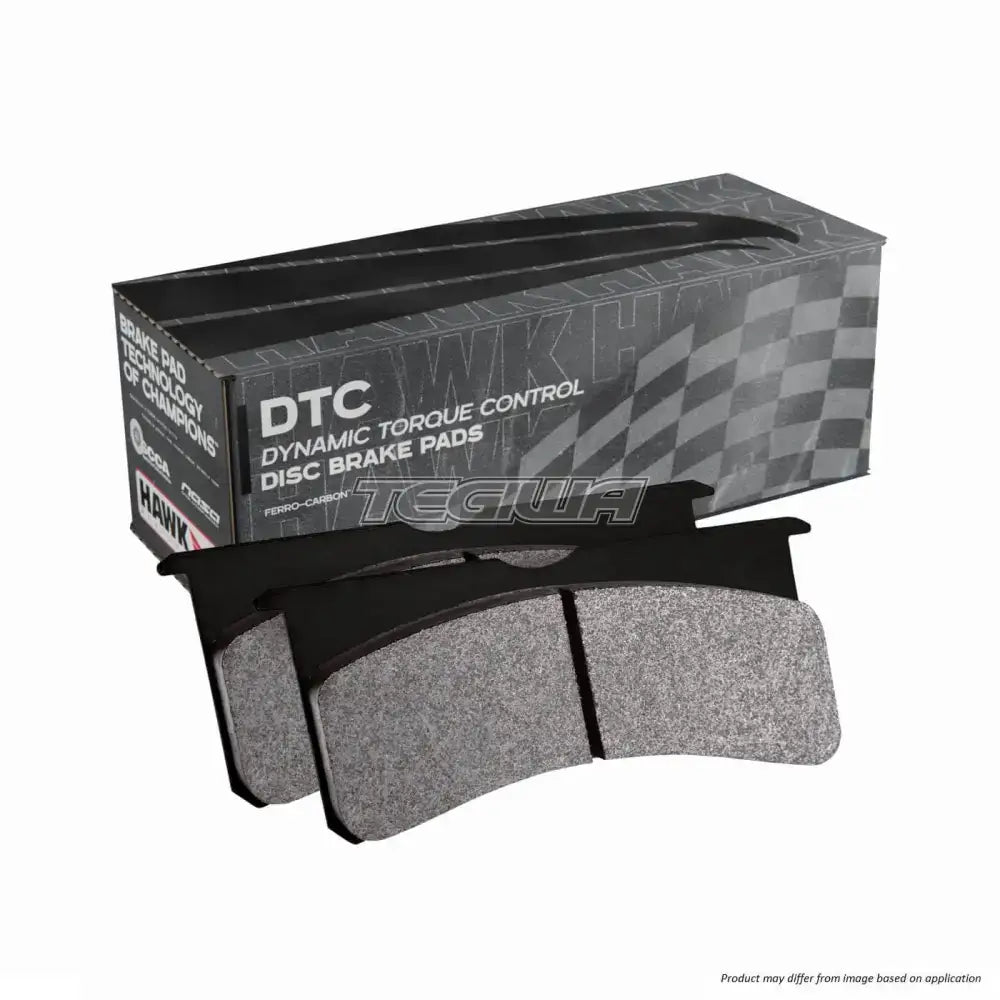

HAWK Performance DTC-60 Motorsports Brake Pads Front Mini Cooper S JCW R52 R53 R56 1.6L (TRW Calipers) 03-14

Hawk Brake Pad Installation Procedure

• Install Brake pads properly. Be sure pads are securely positioned in the caliper.
• Flush system with fresh brake fluid.
• Check all hydraulic parts for excess wear and tear.
• Check disc for proper thickness, parallelism, and lateral run-out.
• Check disc for scoring or grooves over .012"" depth. If either applies, resurfacing or replacement is required.
• If disc does not need resurfacing then contamination from the previous brake pads must be removed. Sand discs with Garnet sandpaper using moderate pressure. Use soap and water to clean off disc surface after sanding and machining. Discs should be free and clear of oil, grease, and brake fluid
• Inspect calipers for freedom of movement. Lubricate where necessary

Hawk Brake Pad Bedding Procedure - Motorsports Pads

• After reaching medium speed engage brake pedal to slow car without coming to a complete stop. Release pedal quickly and do not drag brakes. Repeat four or five times.
• At higher speeds engage brake pedal to slow car without coming to a complete stop. Release pedal quickly and do not drag brakes. Repeat five times.
• At or near race speed engage brake pedal to slow car without coming to a complete stop. Release pedal quickly and do not drag brakes. Repeat three times. Allow a few seconds between brake engagements while car is in motion.
• Do not hold brake pedal. Park car for approximately 20 minutes or until brake rotors are completely cool to the touch.
• If during the above steps the brake pedal becomes soft or brake fade is noticed, park the car immediately for approximately 20 minutes. Do not hold brake pedal.

Important Reminders when Burnishing or Bedding Brake Pads

• Do not attempt to use badly worn or damaged rotors with new brake pads.
• Do not drag brakes while car is moving during break-in procedure.
• Do not engage pedal while car is stopped at any time following the break-in procedure.
• Upon completing the procedure, allow the brake system to completely cool before racing.
• Applying the pedal a few times before the start of the race will allow the brake pads to heat up before attempting to reach race speeds.
li>Clean a used rotor surface with fine sand paper or steel wool, rinse with water, dry and install before bedding new pads
