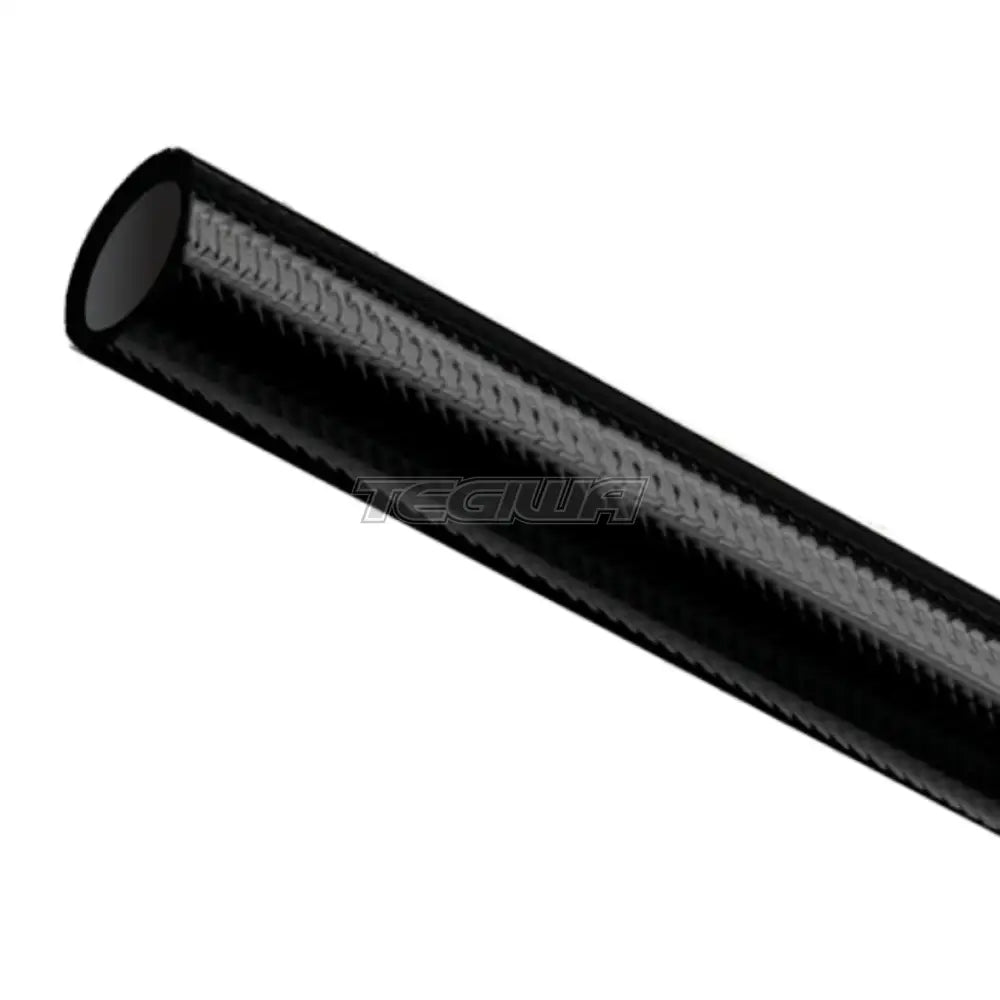

The 700 series hose range is a PTFE lined light weight equivalent to the 600 series, wrapped in an Aramid fibre braid. Motorsport use only. Applications include brake, clutch, fuel injection, fire extinguisher, nitrous, pressure gauge and hydraulics. The PTFE liner is braided in light weight Aramid fibre, providing consistent brake and clutch pedal/lever feel (When used for brake/clutch applications), whilst eliminating any sponginess that may be found with the equivalent rubber hose.
Compatible with crimp fittings. (Specialist equipment required).
Fuel applications
|
Brake, Clutch, Pressure Gauge, Fuel Injection, Fire extinguisher, Nitrous, Pneumatics & Hydraulics.
|
Fitting type
|
Crimp
|
Compatible fittings
|
600 series
|
Part No.
|
Max Bore Size
|
Braid O.D.
|
Cover O.D.
|
Working Press
|
Burst Press
|
Weight
|
Min Ben Rad
|
|
mm (in)
|
mm (in)
|
mm (in)
|
bar (psi)
|
bar (psi)
|
Kgm/LbFt
|
mm (in)
|
700K-03
|
3,5 (0,138)
|
6,7 (0,264)
|
-
|
200 (2900)
|
600 (8702)
|
0,059 (0,04)
|
38 (1,50)
|
700K-03BK
|
3,5 (0,138)
|
6,7 (0,264)
|
7,9 (0,311)
|
200 (2900)
|
600 (8702)
|
0,059 (0,04)
|
38 (1,50)
|
Temp Range :
700K-03: deg C -40/+180 / deg F -40/+356
700K-03BK: deg C -20/+85 / deg F -4/+185
Please Note: Priced per metre.
