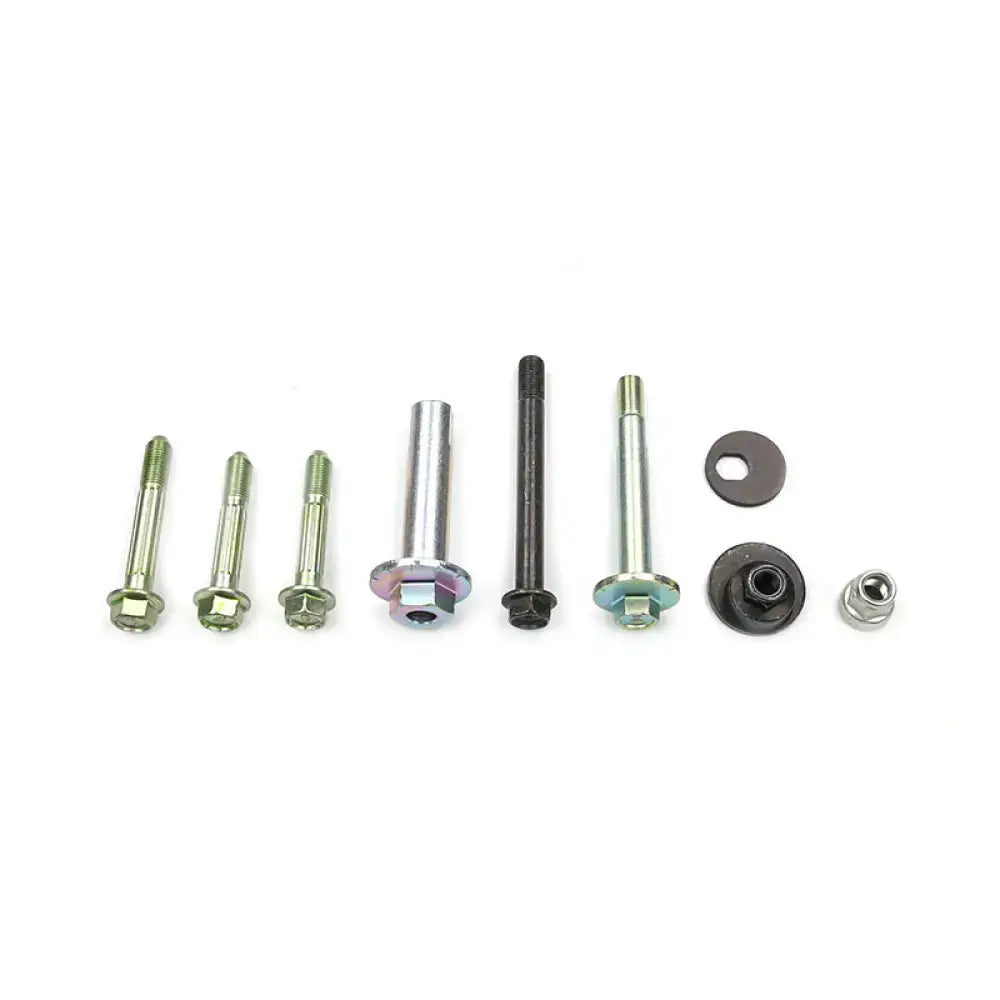

HONDA EP3 Suspension Bolts. These bolts, cam plates, and nuts are often troublesome when coming to adjust geometry or simply change suspension components on your S2000. As with all genuine Honda parts expect a perfect fit and performance every time. The bolts are sold individually, please select the parts you require.
| Ref. Number |

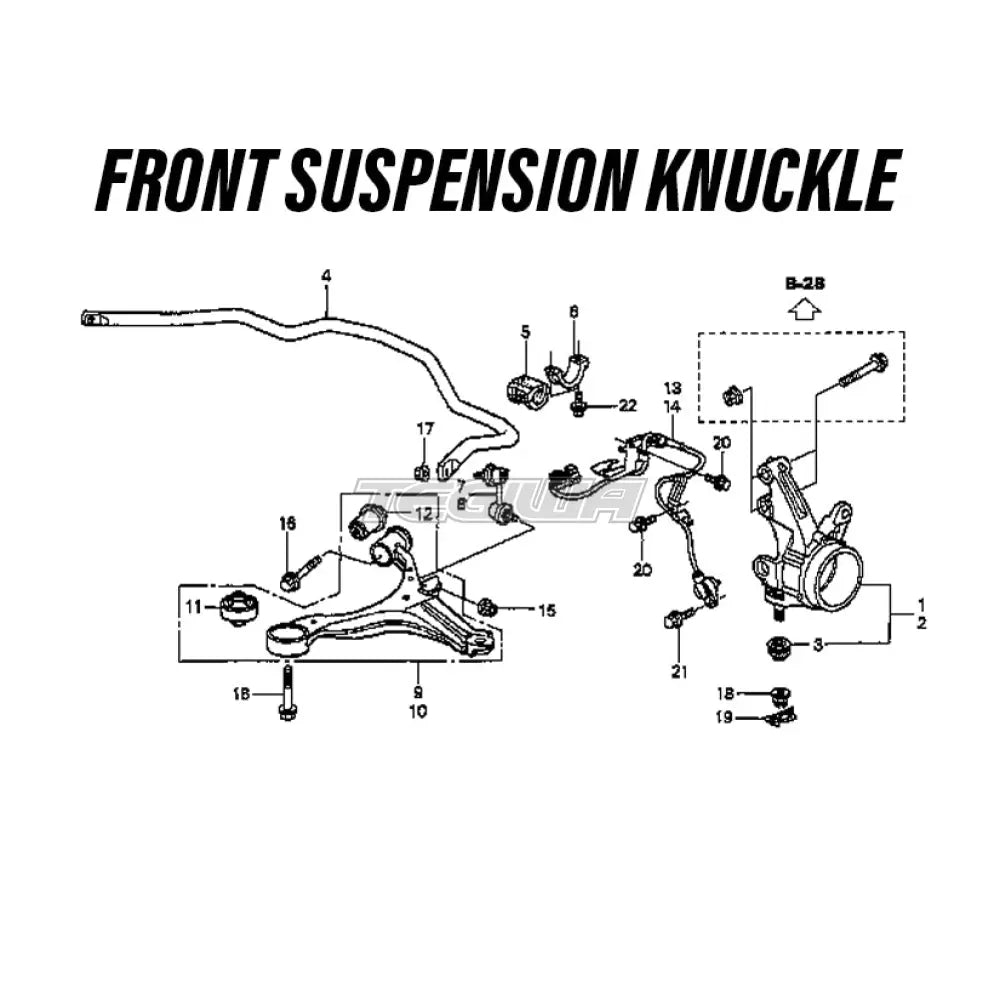

FRONT |
POSTION |
QTY REQUIRED |
| 16 |
90118-S5A-000 |
front arm bolt |
4 |
| 22 |
95701-1001808 |
front arb bracket bolt |
4 |
| N/A |
90119-S6M-Z01 |
Front lower damper bolt |
4 |
| N/A |
90382-SP0-003 |
Front lower damper nut |
4 |
| N/A |
90175-S5A-000 |
Front subframe bolt |
4 |
| N/A |
90801-S5A-000 |
Front rear lower brace bolt |
2 |
| 21 |
95701-0601608 |
ABS sensor bolt - sensor side |
2 |
| 20 |
95701-0601208 |
ABS sensor bolt - plug side |
4 |
|

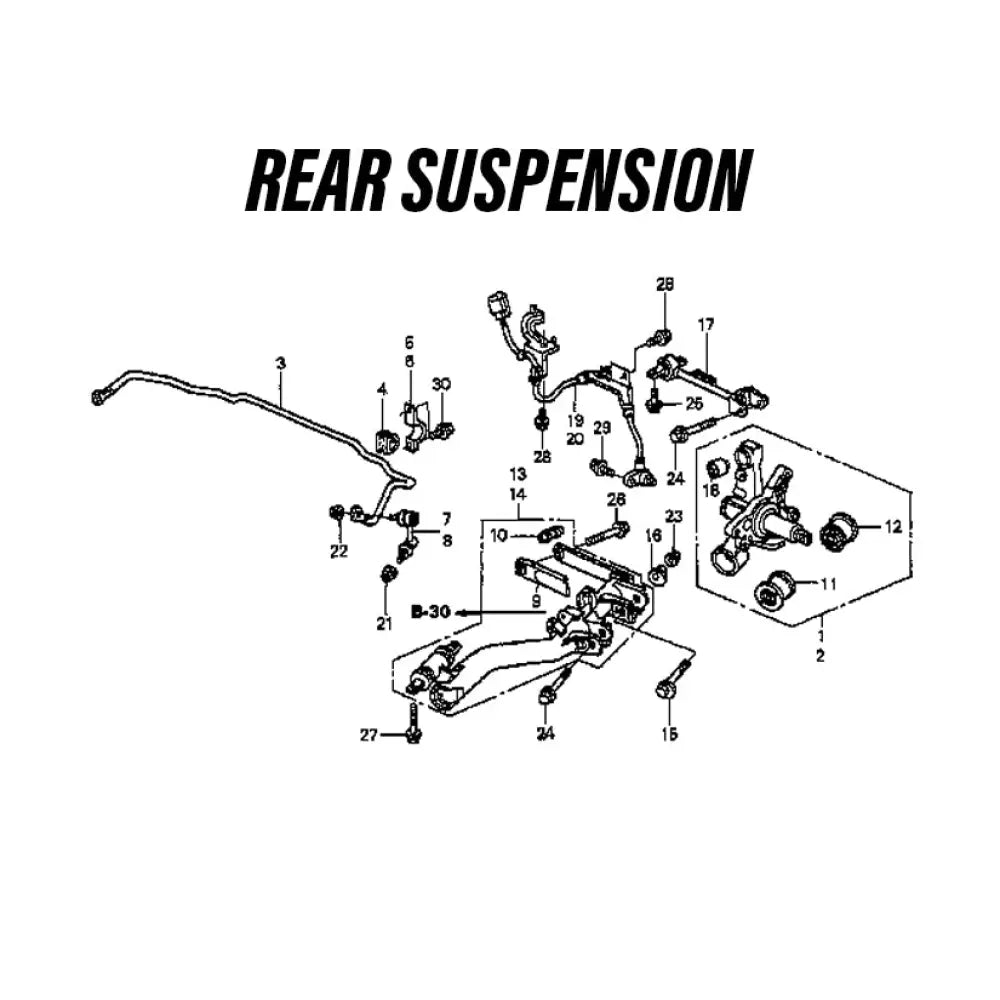

| REAR |
| 27 |
90399-S5A-000 |
Rear trailing arm bush bolt |
4 |
| 24 |
90396-S5A-010 |
Rear knuckle front bolt |
2 |
| 15 |
52387-S7A-000 |
Rear toe bolt |
2 |
| 16 |
52388-S7A-013 |
Rear toe cam plate |
2 |
| 23 |
90395-S5A-003 |
Rear toe nut |
2 |
| 26 |
90398-S5A-000 |
Rear lower arm inner bolt |
2 |
| 24 |
90396-S5A-010 |
Rear camber arm outer bolt |
2 |
| 25 |
90186-SR3-000 |
Rear camber arm inner bolt |
4 |
| 30 |
957010-801-808 |
Rear arb bracket bolts |
4 |
| N/A |
90181-S84-A00 |
Rear lower damper bolt |
2 |
| 29 |
95701-0601608 |
ABS sensor bolt - sensor side |
2 |
| 28 |
95701-0601208 |
ABS sensor bolt - plug side |
4 |
