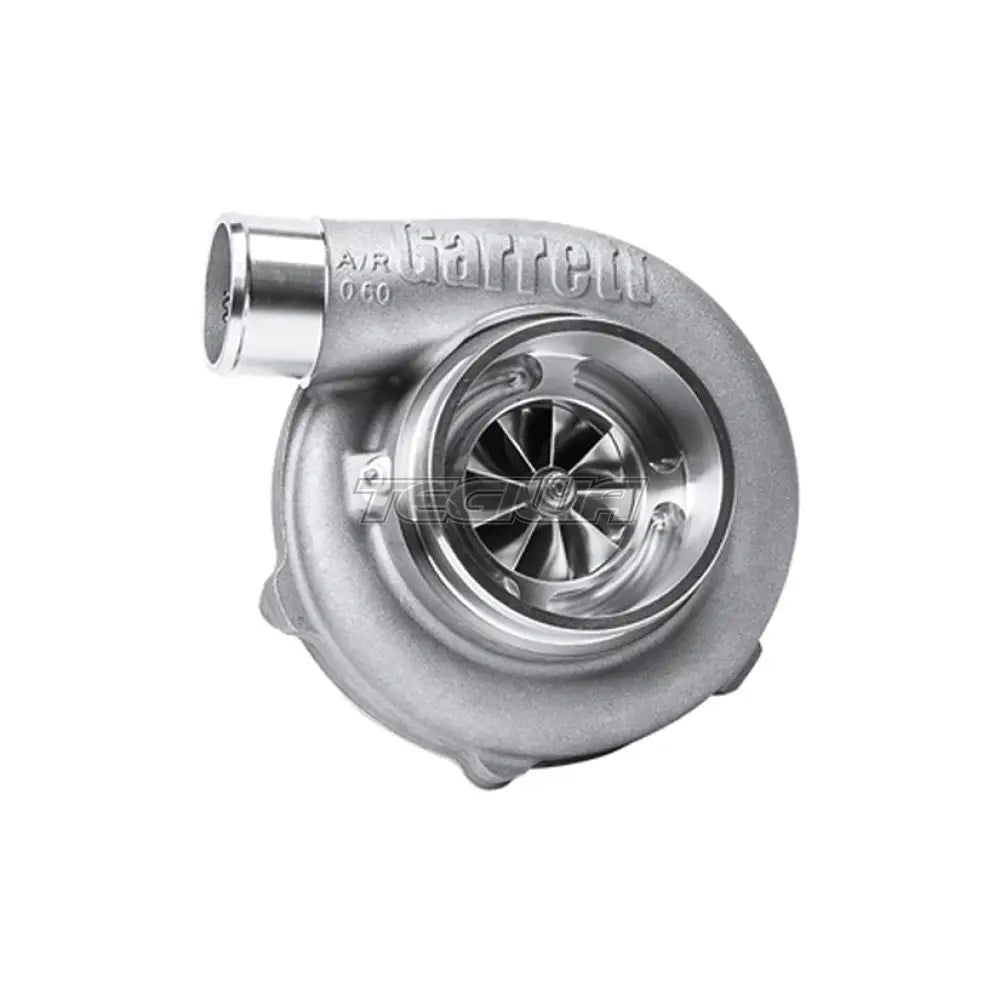

Garrett GTX3076R Gen II Super Core Reverse Rotation
Gen II Aero Comp Wheel for improved performance.
Billet CNC machined Comp Wheel.
Improved ported shroud design for surge resistance with new Compressor Housing aesthetics and integrated speed sensor port.
Turbine housing not included.

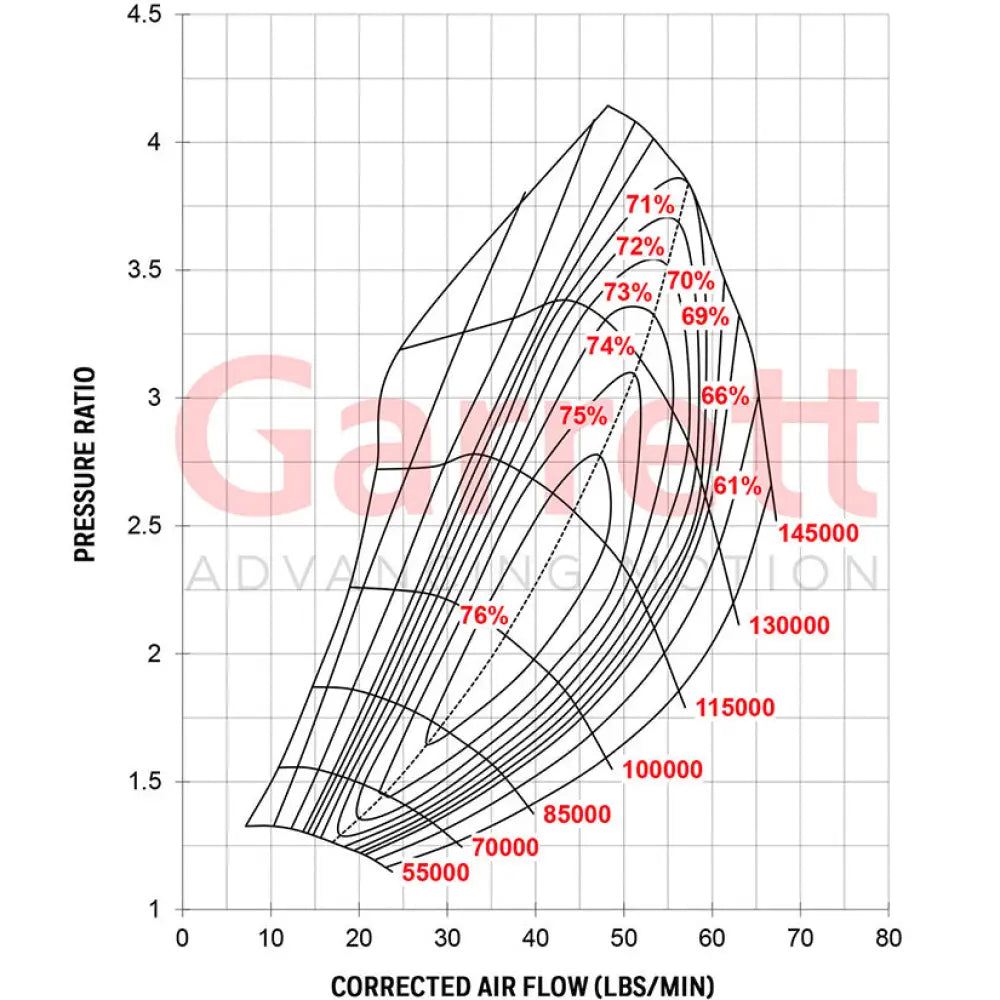

Compressor side: Trim 58 A/R 0.60 - Reverse.
Compressor Air Inlet: Hose 4" (101.60mm).
Compressor Air Outlet: Hose 2" (50.80mm).

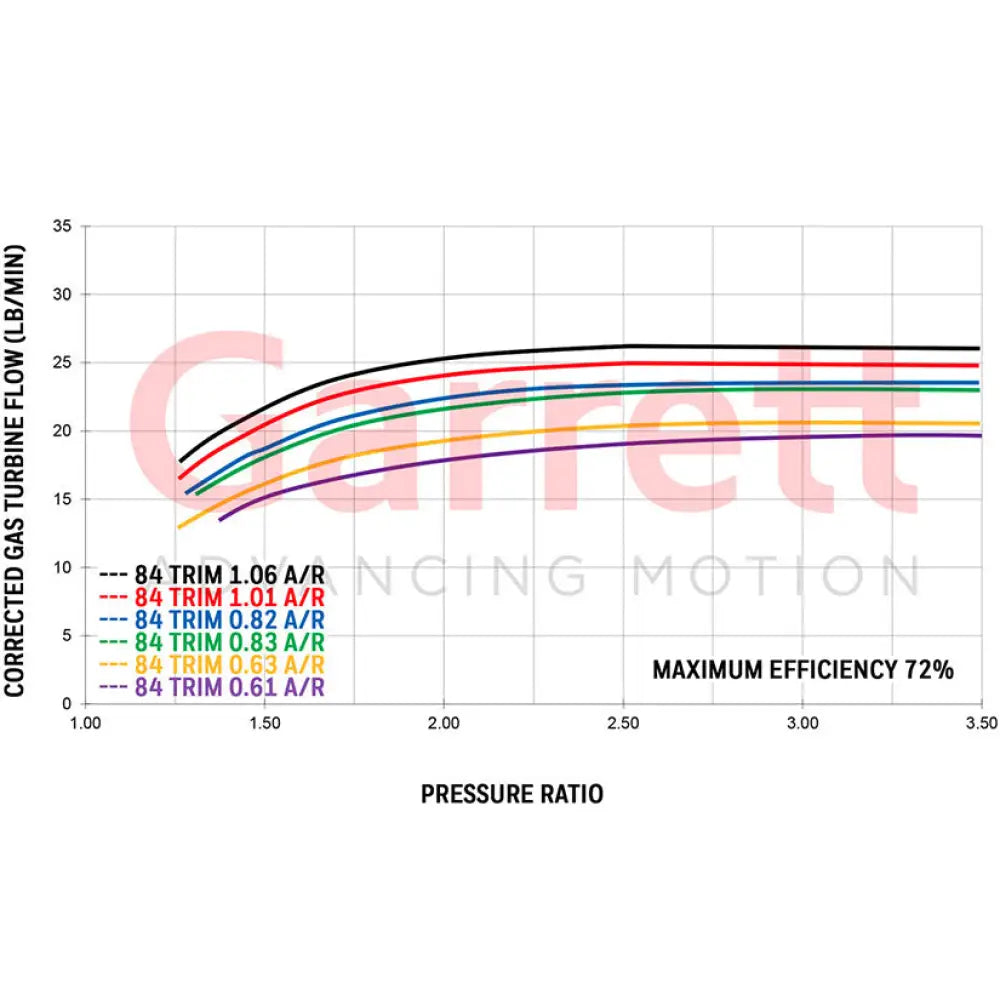

Turbine side: Trim 84 - Reverse

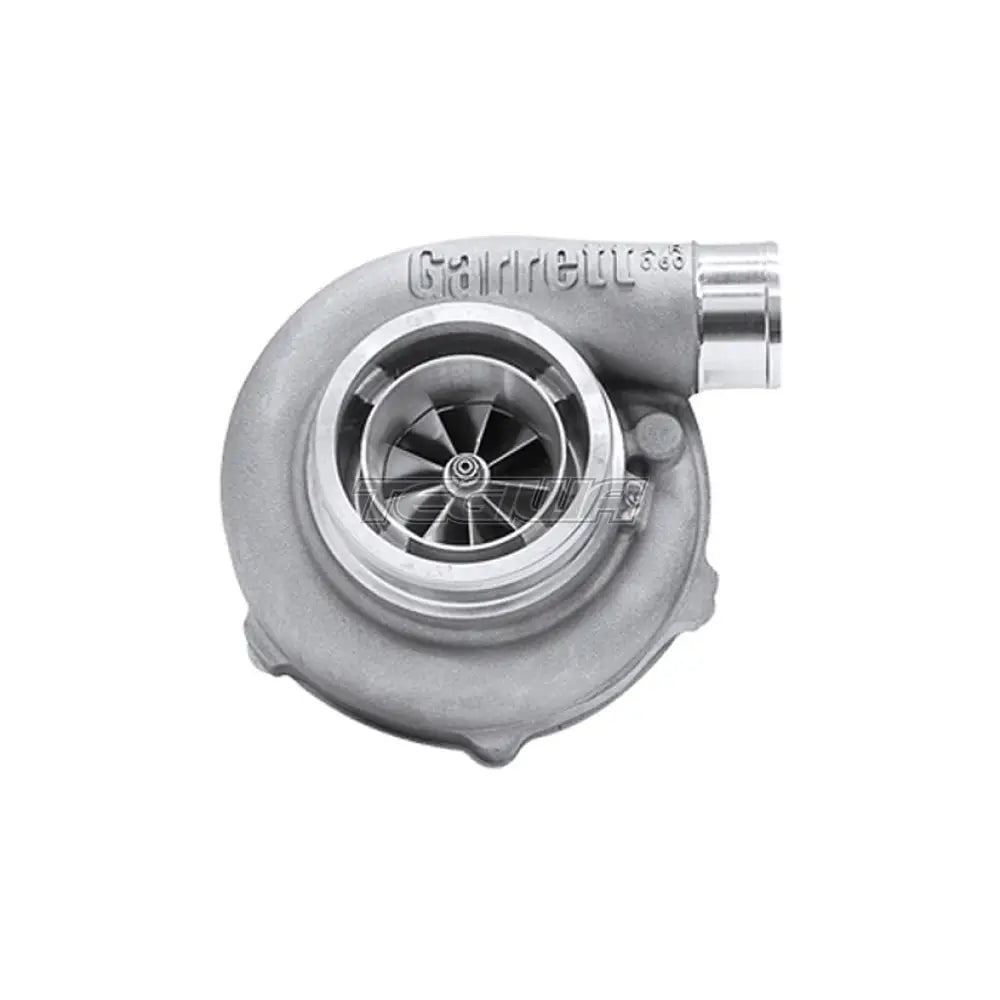

Garrett GTX3076R Gen II Super Core 400-750HP
Gen II Aero Comp Wheel for improved performance.
Billet CNC machined Comp Wheel.
Improved ported shroud design for surge resistance with new Compressor Housing aesthetics and integrated speed sensor port.
Turbine housing not included.
Compressor side: Trim 58 A/R 0.60.
Compressor Air Inlet: Hose 4" (101.6mm).
Compressor Air Outlet: Hose 2" (50.8mm).
Turbine side: Trim 84
Garrett's new GTX3076R GEN II Turbocharger. The GTX GEN II is the next evolution of our GTX line with major updates and new technology. Updates include a compressor wheel aero update that gives it the ability to produce up to 20% more horsepower than the previous version.
