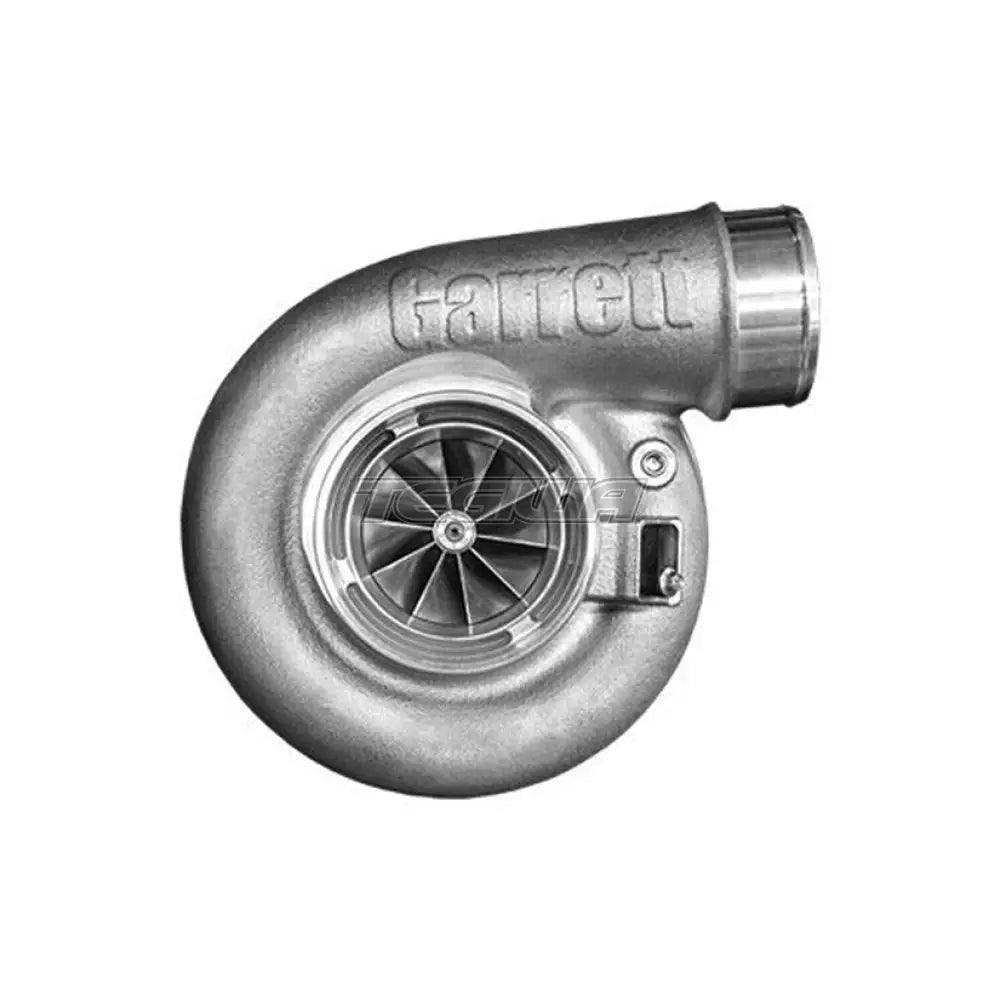

Garrett G42-1200C Compact Turbo Assembly 475-1200HP - Turbine Housing V-Band/V-Band A/R 1.01
Horsepower: 475 - 1200HP
Displacement: 2.0 - 7.0L
Garrett ® G Series Compressor Aerodynamics (10 blades) for maximum HP. Fully machined Speed Sensor and pressure ports. Turbine Wheel Aero constructed of Inconel super alloy rated 950 ºC. Stainless Steel non wastegated turbine housing option capable of 950 °C. Oil restrictor and water fittings included.
Compressor side: Trim 65 A/R 0.90
Compressor Air Inlet: Hose 4" (101.6mm)
Compressor Air Outlet: Hose 3" (76.2mm)
Turbine side: Trim 84 A/R 1.01 - Non divided
Turbine Inlet: V-Band 3.6" (92mm)
Turbine Outlet: V-Band 4.3" (109mm)
Garrett G42-1200C Compact Turbo Assembly 475-1200HP - Turbine Housing V-Band/V-Band A/R 1.15
Horsepower: 475 - 1200HP
Displacement: 2.0 - 7.0L
Garrett G Series Compressor Aerodynamics (10 blades) for maximum HP. Fully machined Speed Sensor and pressure ports. Turbine Wheel Aero constructed of Inconel super alloy rated 950 ºC. Stainless Steel non wastegated turbine housing option capable of 950 °C. Oil restrictor and water fittings included.
Compressor side: Trim 65 A/R 0.90
Compressor Air Inlet: Hose 4" (101.6mm)
Compressor Air Outlet: Hose 3" (76.2mm)
Turbine side: Trim 84 A/R 1.15 - Non divided
Turbine Inlet: V-Band 3.6" (92mm)
Turbine Outlet: V-Band 4.3" (109mm)
Garrett G42-1200C Compact Turbo Assembly 475-1200HP - Turbine Housing V-Band/V-Band A/R 1.28
Horsepower: 475 - 1200HP
Displacement: 2.0 - 7.0L
Garrett G Series Compressor Aerodynamics (10 blades) for maximum HP. Fully machined Speed Sensor and pressure ports. Turbine Wheel Aero constructed of Inconel super alloy rated 950 ºC. Stainless Steel non wastegated turbine housing option capable of 950 °C. Oil restrictor and water fittings included.
Compressor side: Trim 65 A/R 0.90
Compressor Air Inlet: Hose 4" (101.6mm)
Compressor Air Outlet: Hose 3" (76.2mm)
Turbine side: Trim 84 A/R 1.28
Turbine Inlet: V-Band 3.6" (92mm)
Turbine Outlet: V-Band 4.3" (109mm)
Garrett G42-1200C Compact Turbo Assembly 475-1200HP - Turbine Housing T4 Inlet/V-Band A/R 1.01
Horsepower: 475 - 1200HP
Displacement: 2.0 - 7.0L
Garrett G Series Compressor Aerodynamics (10 blades) for maximum HP. Fully machined Speed Sensor and pressure ports. Turbine Wheel Aero constructed of Inconel super alloy rated 950 ºC. Stainless Steel non wastegated turbine housing option capable of 950 °C. Oil restrictor and water fittings included.
Compressor side: Trim 65 A/R 0.90
Compressor Air Inlet: Hose 4" (101.6mm)
Compressor Air Outlet: Hose 3" (76.2mm)
Turbine side: Trim 84 A/R 1.01 - Divided
Turbine Inlet: T4
Turbine Outlet: V-Band 4.3" (109mm)
Garrett G42-1200C Compact Turbo Assembly 475-1200HP - Turbine Housing T4 Inlet/V-Band A/R 1.15
Horsepower: 475 - 1200HP
Displacement: 2.0 - 7.0L
Garrett ® G Series Compressor Aerodynamics (10 blades) for maximum HP. Fully machined Speed Sensor and pressure ports. Turbine Wheel Aero constructed of Inconel super alloy rated 950 ºC. Stainless Steel non wastegated turbine housing option capable of 950 °C. Oil restrictor and water fittings included.
Compressor side: Trim 65 A/R 0.90
Compressor Air Inlet: Hose 4" (101.6mm)
Compressor Air Outlet: Hose 3" (76.2mm)
Turbine side: Trim 84 A/R 1.15 - Divided
Turbine Inlet: T4
Turbine Outlet: V-Band 4.3" (109mm)
Garrett G42-1200C Compact Turbo Assembly 475-1200HP - Turbine Housing T4 Inlet/V-Band A/R 1.28
Horsepower: 475 - 1200HP
Displacement: 2.0 - 7.0L
Garrett G Series Compressor Aerodynamics (10 blades) for maximum HP. Fully machined Speed Sensor and pressure ports. Turbine Wheel Aero constructed of Inconel super alloy rated 950 ºC. Stainless Steel non wastegated turbine housing option capable of 950 °C. Oil restrictor and water fittings included.
Compressor side: Trim 65 A/R 0.90
Compressor Air Inlet: Hose 4" (101.6mm)
Compressor Air Outlet: Hose 3" (76.2mm)
Turbine side: Trim 84 A/R 1.28 - Divided
Turbine Inlet: T4
Turbine Outlet: V-Band 4.3" (109mm)
