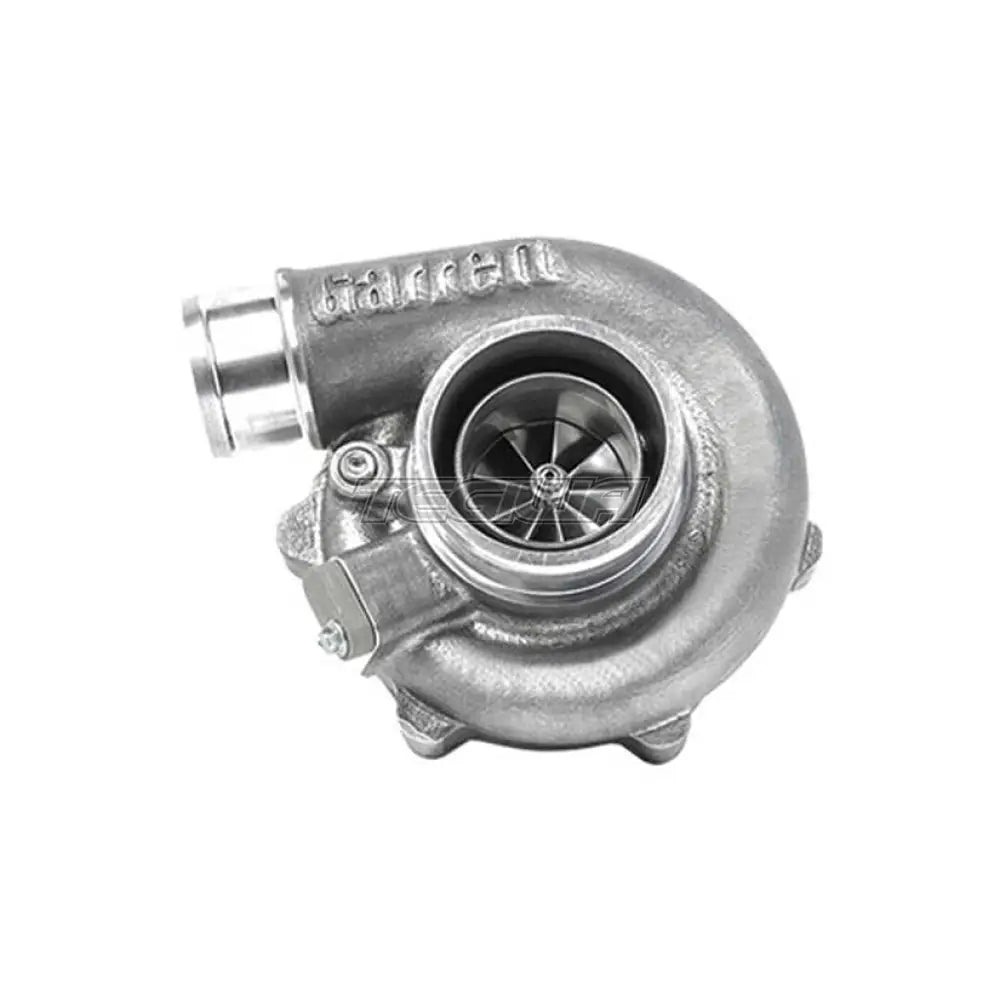

Garrett G25-550 Super Core 300-550HP
Horsepower: 300 - 550 HP
Displacement: 1.4 - 3.0 L
New G Series compressor wheel aerodynamics. 48mm Compressor option
Fully machined speed sensor and pressure ports. Oil Restrictor and water fittings included. One Piece center housing and backplate. 4 water jacked prots for customizable installation. New turbine wheel aero constructed of Mar-M alloy rated up to 1050C. Oil restrictor and water fittings included
Compressor Air Inlet: Hose 3"
Compressor Air Outlet: Hose 2"

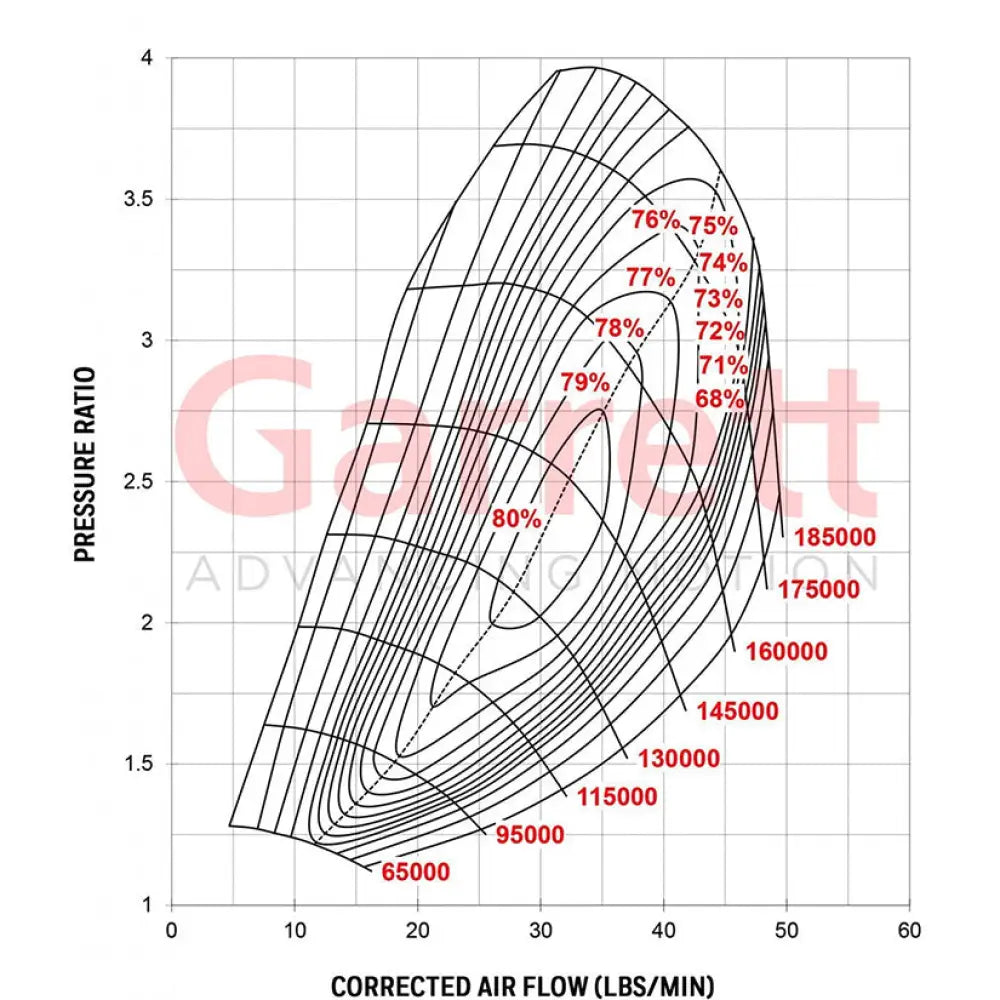

Forged fully-machined compressor wheel and new aerodynamics increase maximum horsepower output and boost response. The CFD (computational fluid dynamics) engineered compressor wheel increases air flow up to 15% for 60mm and 30% for 67mm with 79-80% efficiency. (Compared to GTX GenII)
Garrett G25-550 Super Core Reverse Rotation 300-550HP
Horsepower: 300 - 550HP
Displacement: 1.4 - 3.0L
Garrett ® G Series Compressor Aerodynamics for maximum HP. Fully machined Speed Sensor and pressure ports. New Turbine Wheel Aero constructed of MAR-M alloy rated 1055 ºC. Stainless Steel wastegated and non wastegated turbine housing option capable of 1050 °C. Oil restrictor and water fittings included
Compressor side: Trim 65 A/R 0.70
Compressor Air Inlet: Hose 3" (76.2mm)
Compressor Air Outlet: Hose 2" (50.8mm)
Forged fully-machined compressor wheel and new aerodynamics increase maximum horsepower output and boost response. The CFD (computational fluid dynamics) engineered compressor wheel increases air flow up to 15% for 60mm and 30% for 67mm with 79-80% efficiency. (Compared to GTX GenII)
A driving force behind countless victories, Garrett has been a dominant presence in the racing and performance world for decades. Their dedication to innovation shines through their industry-leading turbochargers and accessories. Each component is meticulously engineered and manufactured to deliver the perfect balance of safety and maximum performance. Whether powering championship-winning race cars or pushing the boundaries of individual performance, Garrett technology empowers drivers to achieve peak results.
