Your Golf MK7 is missing a data display? We have - the Golf MK7 display from CANchecked

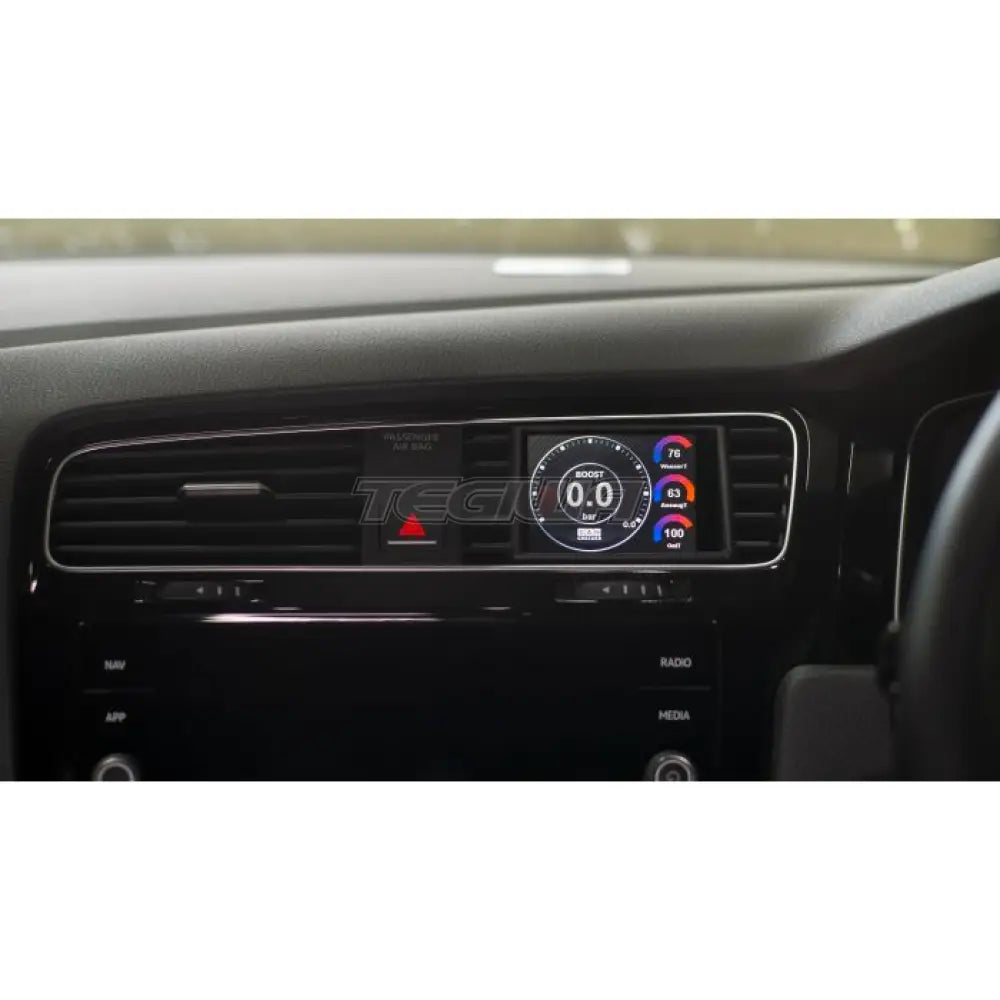

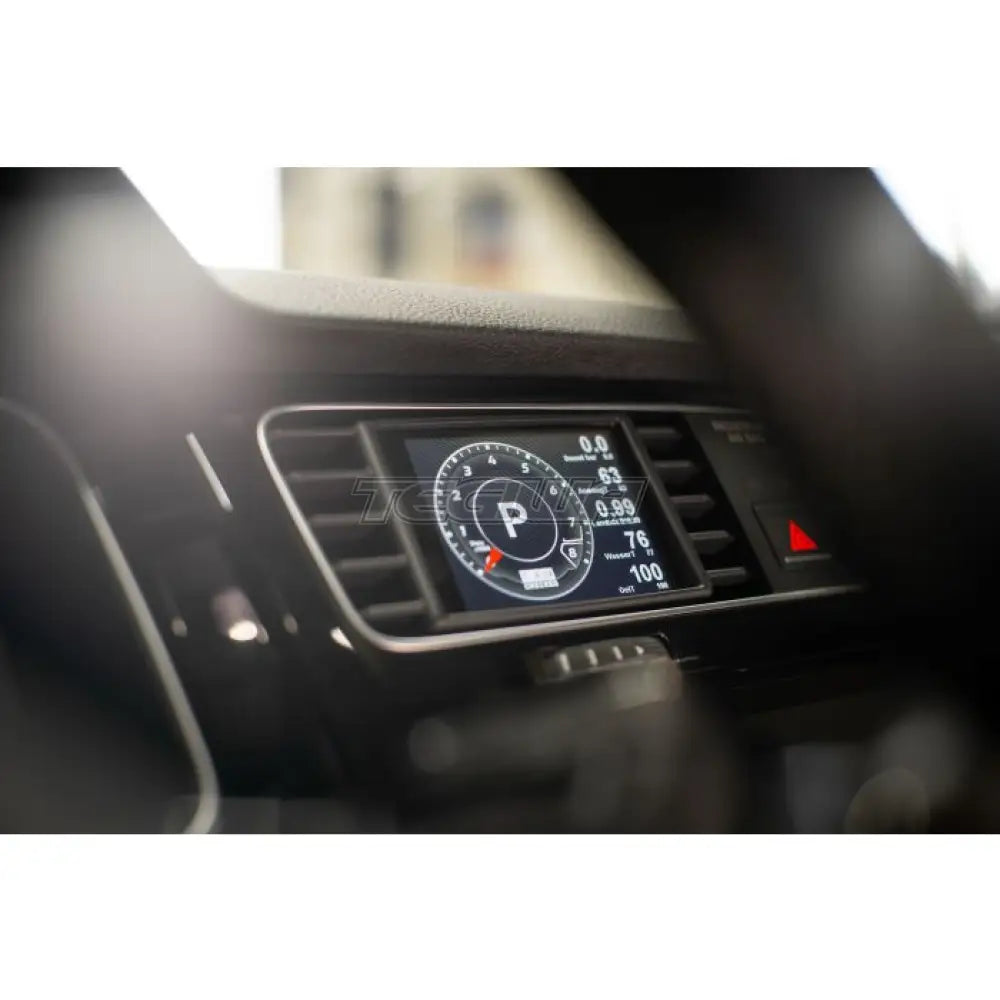

Access to all data from the engine control unit. So ALL. The sensors are queried directly via Can Bus and are displayed on our proven MFD28 (BUT as 3.2") . The Golf MK7 display comes with a vehicle-specific panel and fits into the interior like an original part. The ventilation remains open the slits still intact.
The sensors are queried via UDS. We have optimized the protocol to achieve maximum query speed.
Key features:
- integrates perfectly into the vehicle interior
- up to 50 sensors can be queried
- 10 individually configurable views with our DSS - Display Setup Software
- ready-made views for a quick start with our display
- simply plug and play via our cable set - plug in, done
- 4 additional analogue inputs for exhaust gas temperature, oil pressure and more
- best readability - optionally enclosed anti-reflection film
- Querying the sensors like manufacturer diagnostic tools
Access to all data from the engine control unit
By default, we deliver a ready-made TRI file to your display. All sensors that are queried are defined here.
Temperatures:
- Exhaust gas temperature, engine water temperature, oil temperature, intake temperature, outside temperature, fuel temperature, DSG temperature
pressures:
- Boost pressure, ambient pressure, fuel pressure pre-supply pump
lambda/mixture
- Lambda value, injection time, short-term lambda adjustment, long-term lambda adjustment
Miscellaneous
- Engine speed, air mass (g/s), vehicle speed, throttle valve angle, total ignition angle, ignition angle retardation per cylinder, N75 activation in %, terminal 30 voltage, oil level, torque, gear
If values ​​are missing, they can easily be added.
