Description

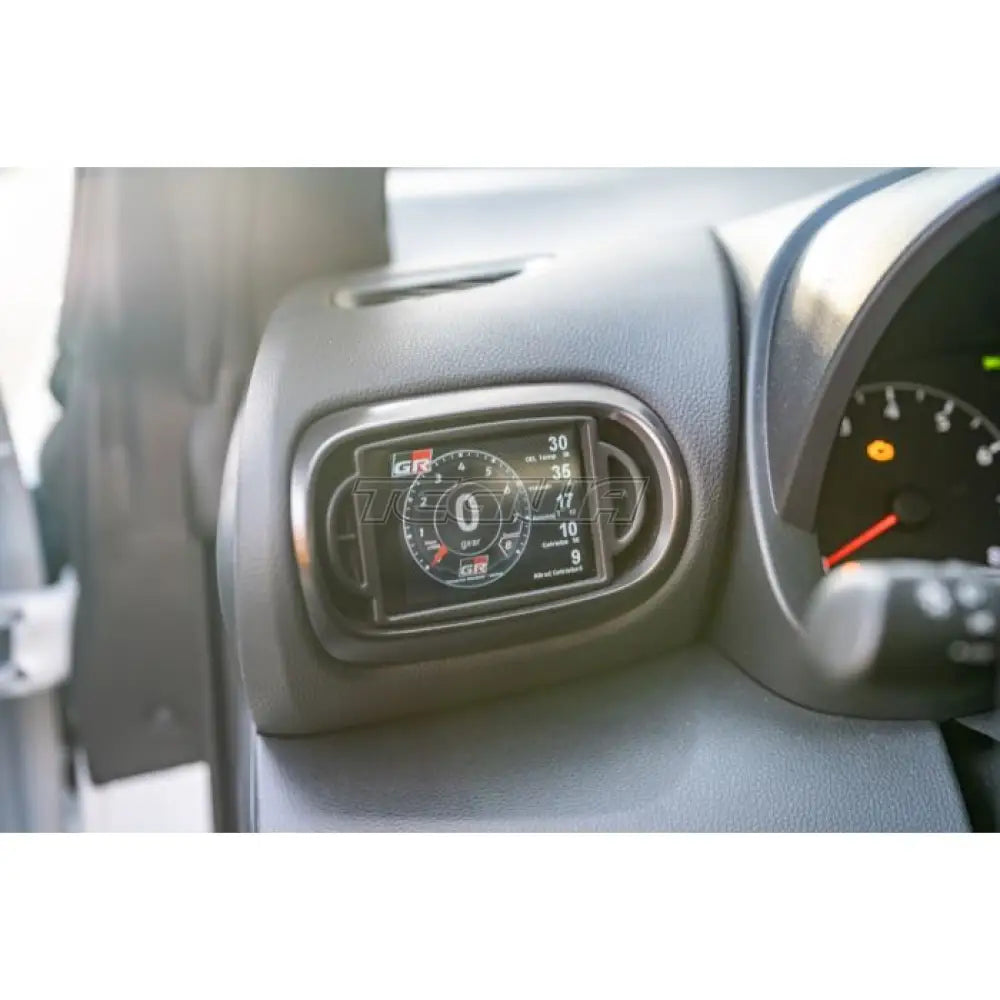

Here we present our new Toyota GR Yaris display. At the same time we present our new display generation "Gen2".
Together with some of the first testers, we developed the GR Yaris display very closely to the OEM functionality - here again perfect integration and the ventilation nozzle is still functional thanks to an intelligent design.
The most important engine and vehicle data
engine speed
water temperature
oil temperature and oil pressure
transmission temperature
intake air temperature
speed
Gear (calculated from speed and rpm)
Lambda value / AFR
ACTUAL and TARGET boost pressure
ignition angle
Rear differential clutch temperature
4x tire pressure
4x tire temperature
Furthermore, we are working on the integration for Syvecs and Motec, as these control units are offered directly plug and play for the GR Yaris. There will be other interesting solutions from us.
Individualize
With our DSS - Display Setup Software you can completely customize your display - set up your own views, all warnings, rename sensors, your own pictures and much more
Motec/Syvecs configuration
Two options: 1) Order your display suitable for Motec/Syvecs 2) Change the firmware of your display to "standard" instead of "OBD": MFD28/MFD32 software update
The appropriate TRI file should already be available on the SD card. You can find it here: 1) Swipe down the display and go to "Setup" 2) "Can Bus" 3) "TRI/TRX File" Select the appropriate file (-M = metric units, -I = imperial units, -G = German sensor names and metric)
Then please configure the control unit to send the standard stream.
Installation
Here you will find our illustrated installation instructions: For experienced screwdrivers, installation takes about 1 hour.
