CANchecked MFD28 32 Gen2 OBD2 Pin1 KL15 K Line VAG

CANchecked Display OBD2 Cable Kit for MFD28 / MFD32 / MFD32S - Specifically for VW/Audi and BMW
The CC22711 OBD2 Cable is designed specifically for vehicles in the VAG Group (Audi, VW, Seat, Skoda), and it includes an extra K-Line wire (for VAG cars only, which provides 12V on the plug). This OBD2 cable allows for an easy connection between your CANchecked display and your vehicle, enabling you to display OBD2 values directly on your screen.

Key Features:
- **Plug & Play:** No need for an external power cable! Terminal 15 (ignition plus) is already taken from the OBD plug, making installation a breeze.
- **Quick Installation:** Connect the cable in just a few seconds, and start displaying OBD2 values and fault codes on your CANchecked display.
- **Pre-configured OBD TRI files:** Use these files to easily display all the relevant OBD2 data on your display.
- **Fault Code Display:** View stored fault codes from your vehicle directly on your display.
- **Supports Up to 128 Values:** Display a wide range of information, including vehicle speed, RPM, fuel efficiency, and more.

What's Included:

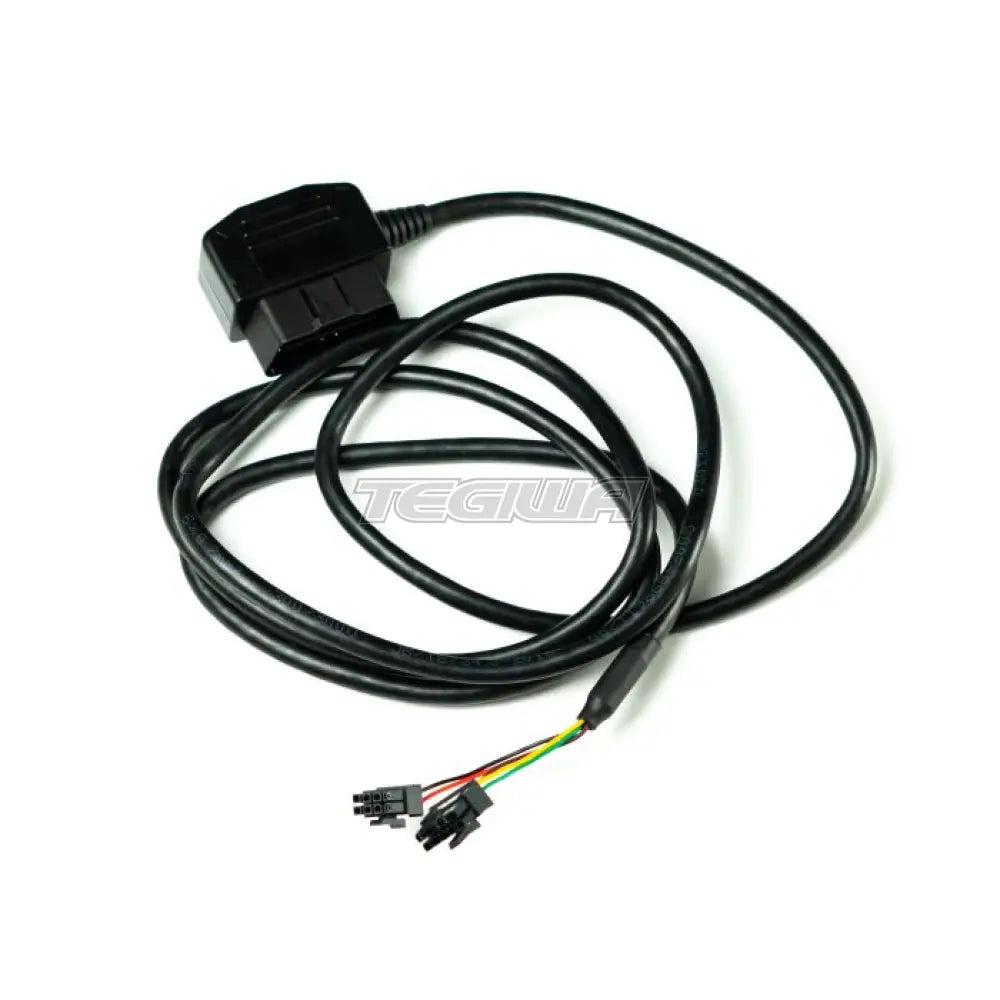

- OBD2 connector with a 2-meter (6ft 6in) cable for connection to the MFD28/MFD32/MFD32S
- The cable connects the following pins from the OBD connector to the display: Terminal 15 (Pin 1), Ground (Pin 4+5), CAN High (Pin 6), CAN Low (Pin 14)

Get the CANchecked OBD2 Cable Kit for quick and easy integration of your vehicle’s OBD2 data onto your CANchecked display. All the information you need is right at your fingertips!
