Key Features:
- Wireless Connectivity: Easily connect to your smartphone for setup, logging, and customization.
- Comprehensive CAN Bus Access: Utilize our extensive CAN Bus database (TRI Files) and benefit from "CAN Switching" functionality.
- Compact Design: With a 52mm installation diameter and a depth of just 12.5mm, it fits seamlessly into various vehicle interiors.
- Additional Inputs: Connect extra sensors via six analog inputs or integrate additional sensors like ethanol or turbo speed sensors.
- Preset Alarms: Activate and customize predefined warnings, such as alerts for exhaust gas temperatures exceeding 900°C.
- Online Logging: Record data using your smartphone and save logs for future analysis (additional license required).
Display Options:

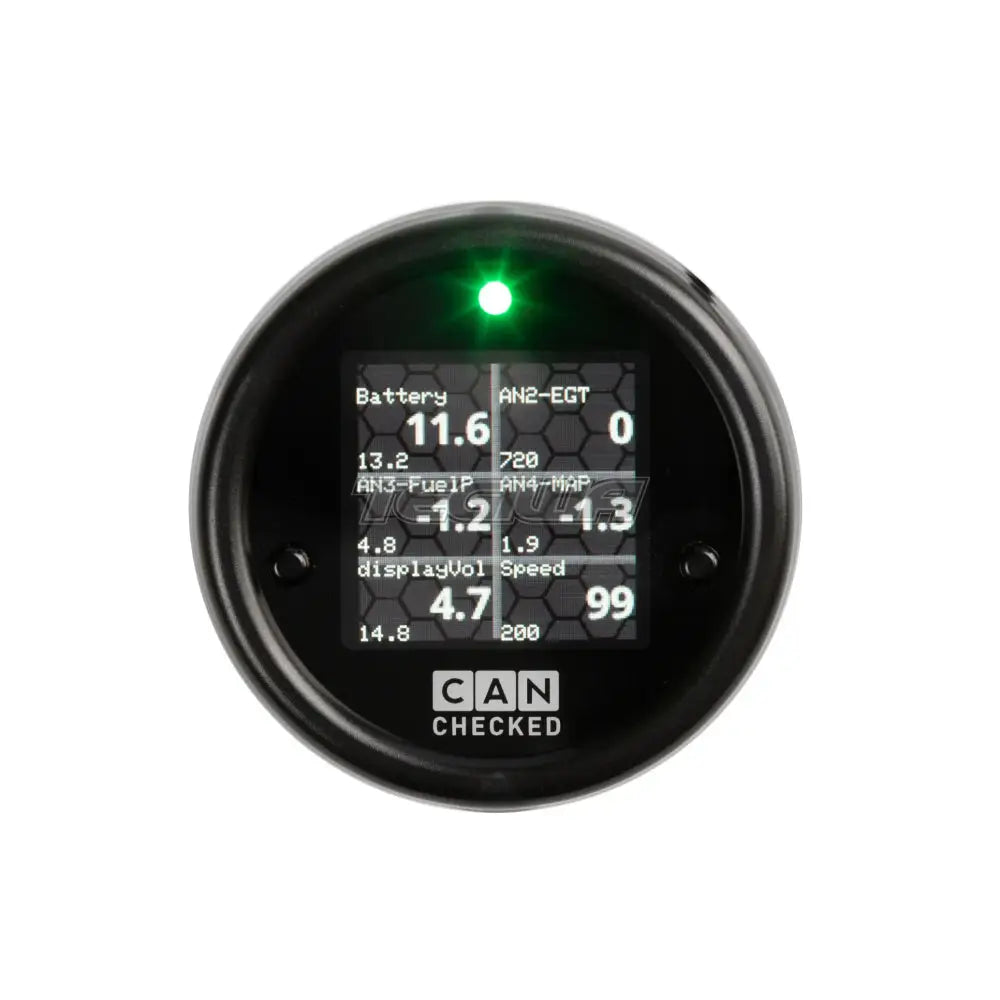

- 6-Field
- 4-Field
- Dual Value
- Dual Bar

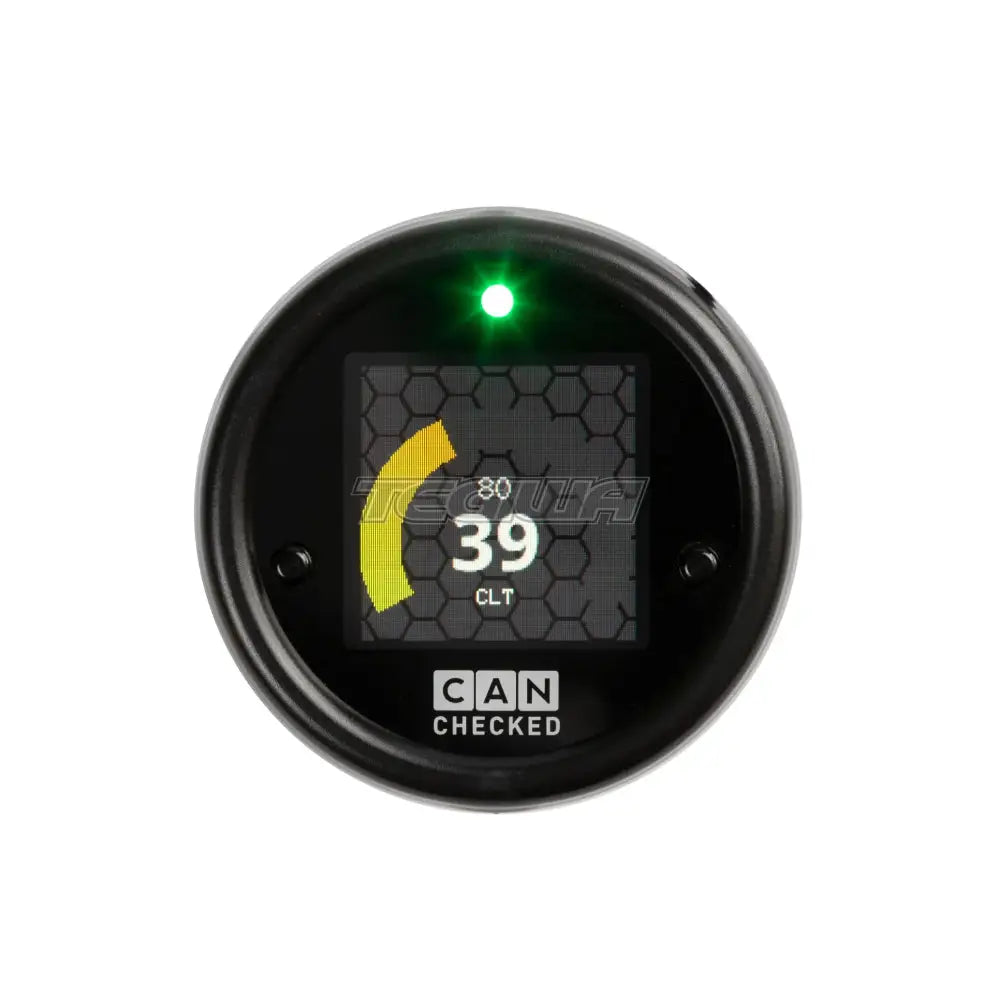

- Round Display
- Single Pointer
- Dual Value with Bar
- Additional Gauges: Performance Meter, Gear Indicator
Online DSS – oDSS:
Access your device via WLAN, eliminating the need for a laptop or PC for display settings. Configure your display, log values (license required), upload custom start images, and perform updates directly through the online DSS.
Supported Values:
The MFD15 Gen2 is compatible with ISO 11898-2 and SAE J2284 standards, allowing access to a wide range of sensor data. Up to 64 sensors can be queried, depending on your control unit's capabilities.
Included in the Package:

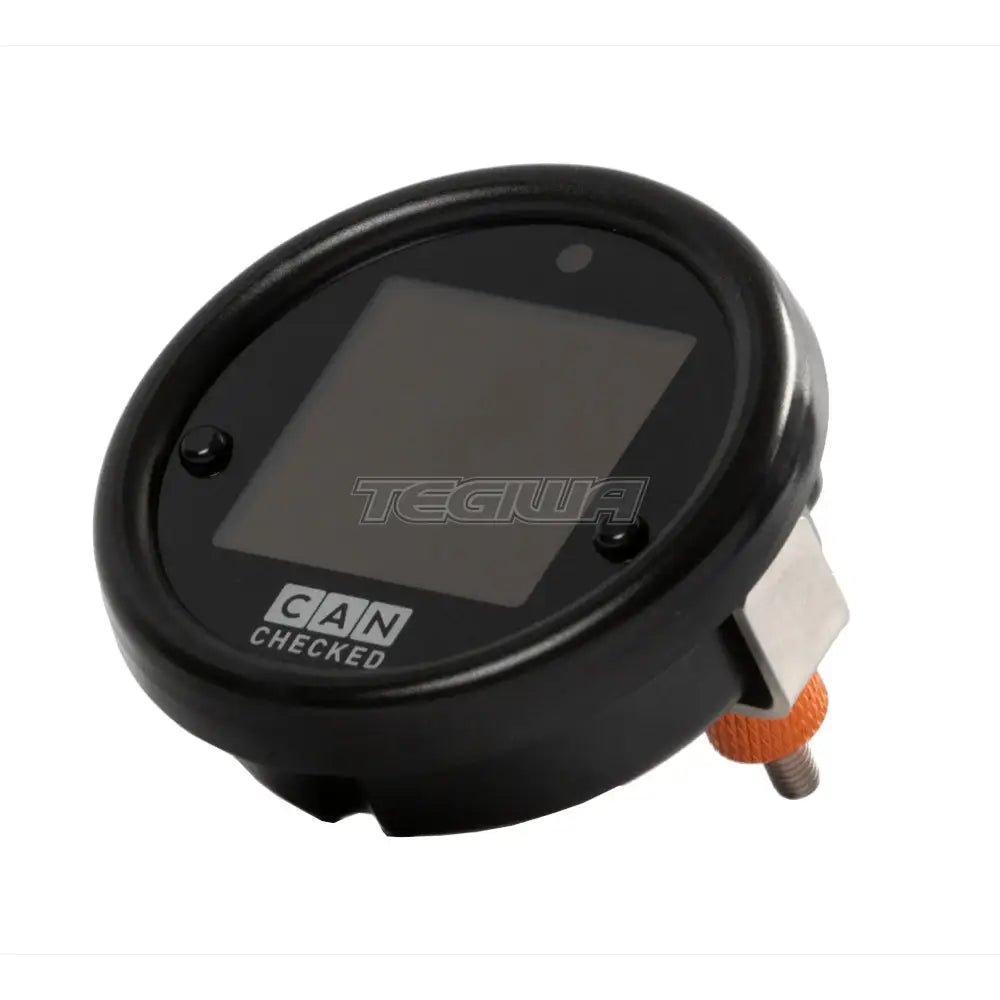

- MFD15 Display
- Rotary Knob with 0.5m Connection Cable
- Adapter Cable for 12V Connection and Display Updates
- MicroUSB Data Cable for Updates
- Connection Plugs for Analog Inputs and CAN Bus
- 20cm Pre-crimped Connection Wires for CAN Bus, Analog Inputs, 5V, and Sensor Ground
- Pins for Custom Crimping
Supported Control Units:
- Ecumaster Classic and Black
- DTAfast
- BMW E46 CAN Bus
- Haltech v2
- Hondata
- KMS van Kronenburg
- LinkECU
- MaxxECU
- Motec M1
- Emtron
- Megasquirt 2 and 3
- Syvecs
- Trijekt
- VW/AUDI PQ34/PQ35 and more
For a comprehensive list of supported control units, please refer to the manufacturer's documentation.
Dimensions and Pin Assignment:
Detailed dimensions and pin assignments are available in the download section of the manufacturer's website.
