CANchecked MFA 2.0 Gen2 Mazda MX5 NC 05-15

CANchecked MFA2.0 Gen2 Data Display

With the vehicle-specific CANchecked MFA2.0 Gen2 data display, you’ll always have all relevant values in view. The MFA2.0 Gen2 is equipped with a high-contrast OLED screen, ensuring excellent readability even in direct sunlight. This kit includes a vehicle-specific dash insert and a connection kit, making installation easy. It is operated using the familiar rotary knob from the Gen1 model.

Key Features:
- **Perfect Integration:** The MFA2.0 Gen2 seamlessly blends into your dashboard for an OEM-like fit.
- **Faceplate-Mounted LED:** Functions as a shift light and/or a warning LED.
- **CAN Bus Support:** Compatible with CAN Bus ECUs, custom CAN streams, and OBD2 (from 2008 for VAG cars).
- **WiFi Connectivity:** Configure your display via smartphone or PC using the web app.
- **Additional Inputs:** Connect up to six analog sensors or an ethanol sensor* directly to the display.
- **Preset Alarms:** Easily activate and customize alarms, such as a warning for exhaust gas temperatures above 900°C.
- **Customization:** Upload your own startup logo and color scheme for a personalized display.
- **Online Logging:* Log your data with a smartphone or PC and save it for later analysis.
- **Flex Fuel Monitoring:* View ethanol content and temperature directly on your display.
- **CAN Switching:* Use the display buttons to send CAN messages and forward analog input readings.

Customizable Display Views:
Choose up to eight pages of different display layouts, including:
- Analog pointer
- Double value
- Gear indicator
- 4-fold values
- 6-fold values
- Bar + double display
- Round display
- Bar graph (double across)
- Performance meter
- Bar chart (1-6-fold upright)
- Single value

Configuration Using Online Display Setup Software (oDSS):
New in the MFD15 Gen2 series, access your device via WiFi for easy setup. With oDSS, you can fully configure your display, log data (license required), upload a custom startup image, and update the display software.

Supported Values:
A common question is: **Which values can be requested from the ECU?** The answer: **ALL.**
The ECU determines which values are sent via the CAN Bus. With proper documentation, such as a DBC file, additional values can be imported into our DSS. Our system supports CAN Bus data queries (UDS, TP2, manufacturer-specific protocols) as well as OBD2 queries (11-bit and 29-bit).

Pre-Configured ECU Compatibility:
- OBD2 (11-bit & 29-bit)
- Ecumaster (Classic & Black)
- VAG PQ34
- Haltech v2
- LinkECU
- MaxxECU
- Motec M1
- Emtron
- Megasquirt 2 & 3

If your ECU is not listed, you can download or request the appropriate TRI/TRX files from our database.
For VAG vehicles from 2008 onward (and some older models), in-depth data queries are available for parameters such as oil temperature, boost pressure, transmission temperature, ignition angle, wastegate actuation, and more.

Integrated LED Functionality:
- **Shift Light Mode:** Assign up to 8 colors and set speed limits for shifting cues.
- **Warning LED Mode:** Set custom minimum and maximum values for each sensor. If a reading exceeds or falls below the set limit, the LED flashes in the designated color.
- **Automatic Disabling:** The shift light is deactivated when the warning LED is triggered.

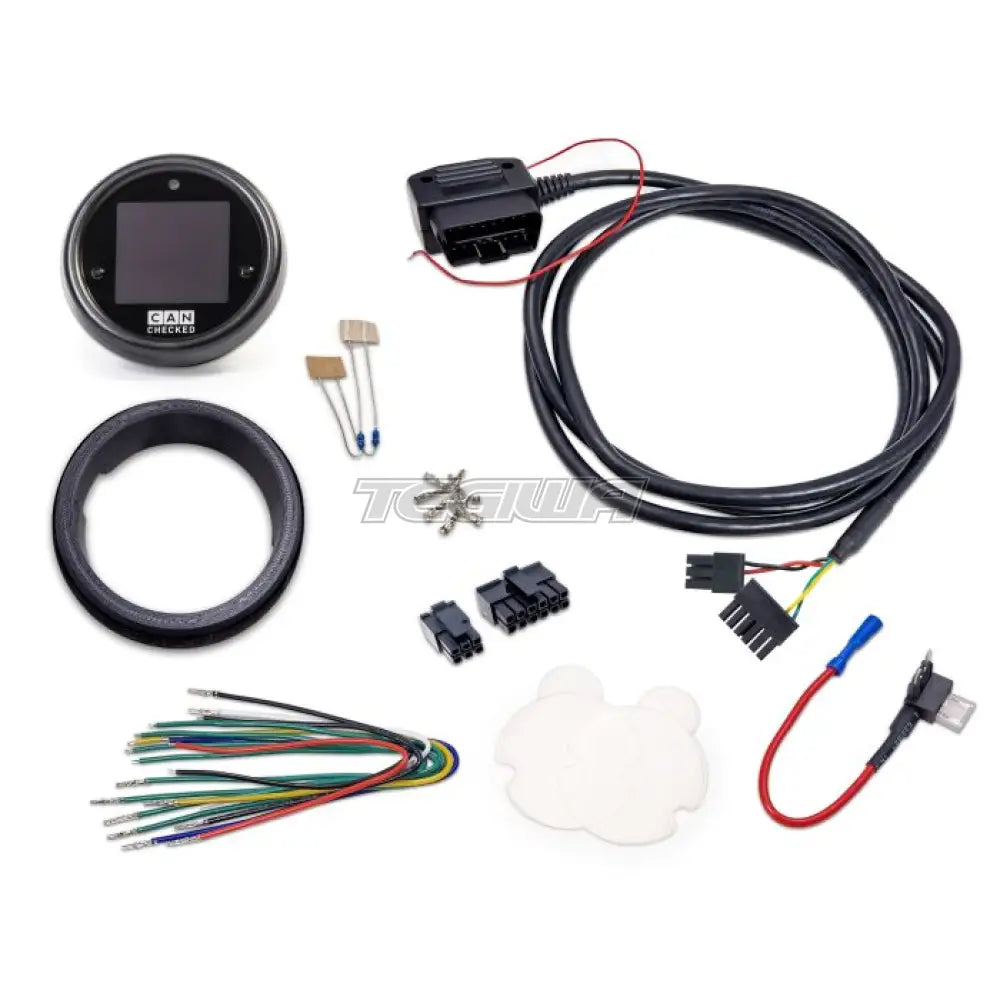

What's Included:
- MFA2.0 Gen2 Data Display pre-installed in a vehicle-specific bezel
- Quickstart guide
- Connector B (6-way Molex)
- Connector C (12-way Molex)
- Pre-assembled connection cables (20 cm) for power supply, CAN Bus, analog inputs, 5V, and sensor ground
- Crimping pins for custom wiring
- Two 1K resistors (for NTC sensor pull-up)

Analog Input Configuration:
- **AIN1:** Temperature sensor (NTC01)
- **AIN2:** Exhaust gas temperature probe type K (TCC01)
- **AIN3:** Pressure sensor 0-10 bar (FLP01)
- **AIN4:** Boost pressure sensor 0-5.5 bar absolute (BST01)
- **AIN5 & AIN6:** User-configurable

For easy installation, use our pre-assembled 4-way AIN harness.
If you have the appropriate license*, an ethanol sensor can also be connected directly to the display.

Optional Accessories:
- **CC22100 CBD08** – 8-way CAN distribution hub
- **CC22780 ANC04** – 4-way AIN harness
- **CC22902 NTC01** – Liquid temperature sensor (1/8" NPT)
- **CC22903 TCC01** – Type K transducer (0-1250°C)
- **CC22901 FLP01** – Pressure sensor (0-10 Bar, 145psi, M10x1)
- **CC22900 BST01** – Boost pressure sensor (0-5.5 Bar absolute, 80psi)
