| Part Number: 3K39072A |
|---|
| Make | Model | Year | Axle | UPGRADE | CLUSTER | Caliper | Caliper Pistons | Caliper Body | Caliper Finishing | Disc Size | Disc Type | Groove Type |
|---|
| BMW | 330i, 330i xDrive, M340i, M340i xDrive (G20) | 2019-> | F | PISTA | FF6 | 6-pistons | Forged 2-pcs | Hard Anodized | 380x35x52a | 2-piece | TY3 | 3K39072A |
| BMW | 430i, 430i xDrive, M440i, M440i xDrive (G22, G23) | 2021-> | F | PISTA | FF6 | 6-pistons | Forged 2-pcs | Hard Anodized | 380x35x52a | 2-piece | TY3 | 3K39072A |
Brembo Racing Systems: Ultimate Performance for the Track
The Racing Suit for Your Wheels
Engineered for high-performance track cars, Brembo Racing Systems deliver unmatched braking power, precision, and control in the most extreme conditions. Designed exclusively for motorsports, these systems ensure consistent performance, superior heat resistance, and maximum reliability—perfect for drivers pushing the limits on slick tires at maximum grip.
Race-Proven Innovation
Every Brembo Racing product is the result of relentless R&D, developed in collaboration with the world's most elite racing teams. Manufactured in-house and rigorously track-tested, these systems are built for drivers who demand peak performance.
Key Features:
- Hard-anodized caliper bodies with quick-release pads for fast servicing
- Ultra-lightweight 2-piece racing discs with enhanced thermal capacity

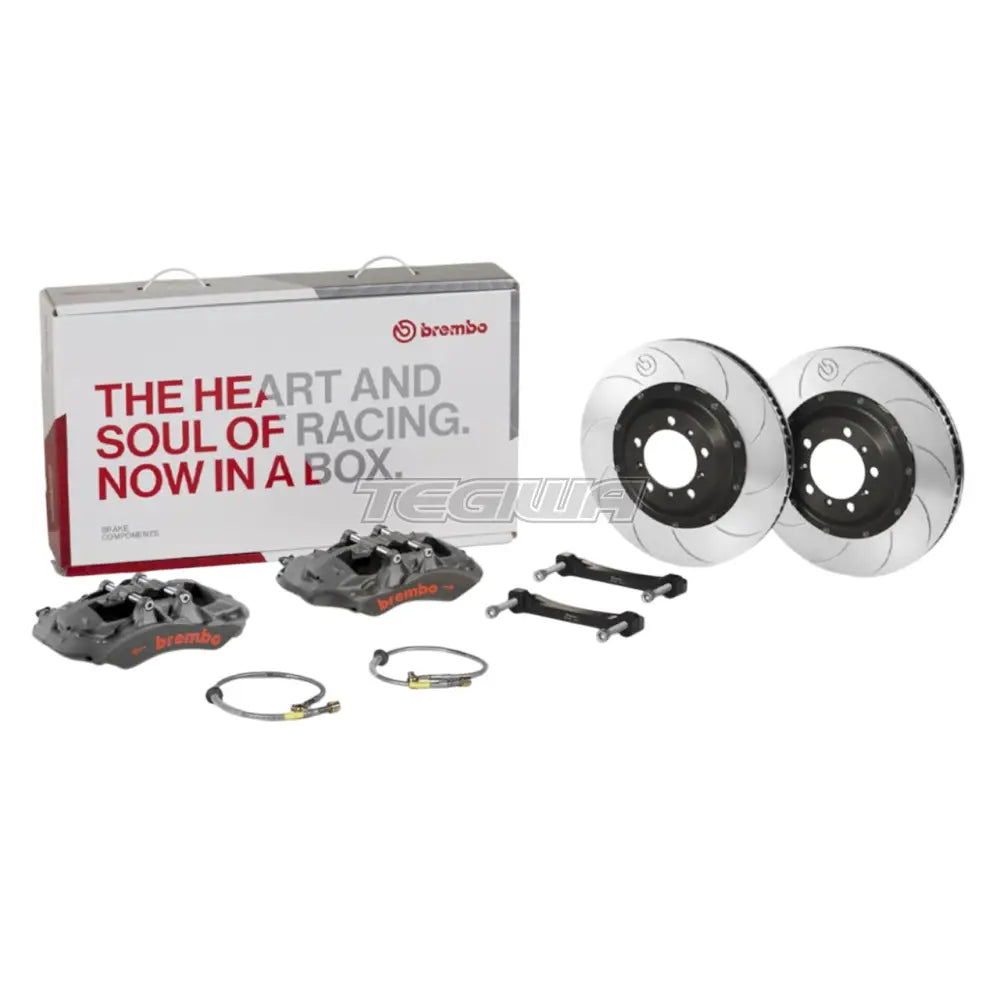

- Complete kits optimized for specific applications—ensuring safety, reliability, and dominance in every braking zone

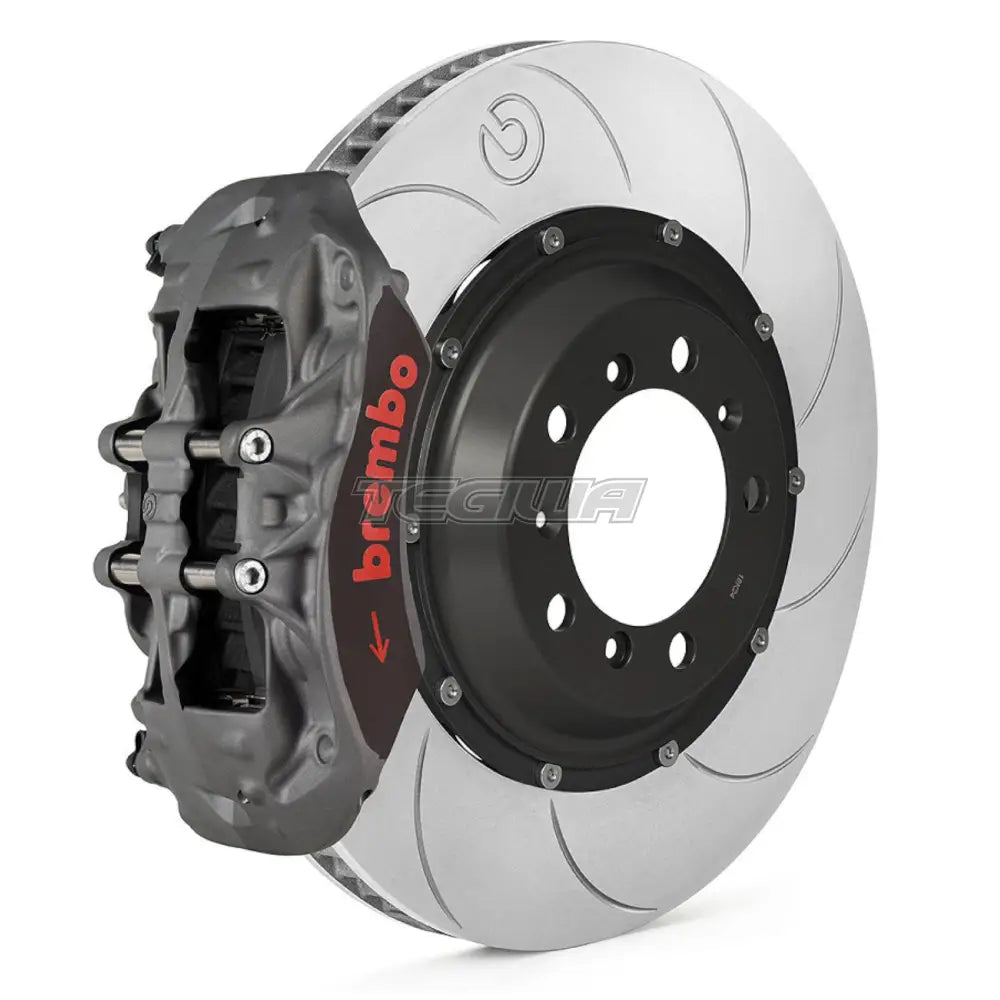

PISTA|FF Calipers – Next-Gen Track Performance
Forged for excellence, the PISTA|FF calipers combine cutting-edge aerodynamics with Brembo's motorsport expertise. Introducing a new family of high-performance calipers engineered to deliver race-level stiffness and efficiency at a competitive price.

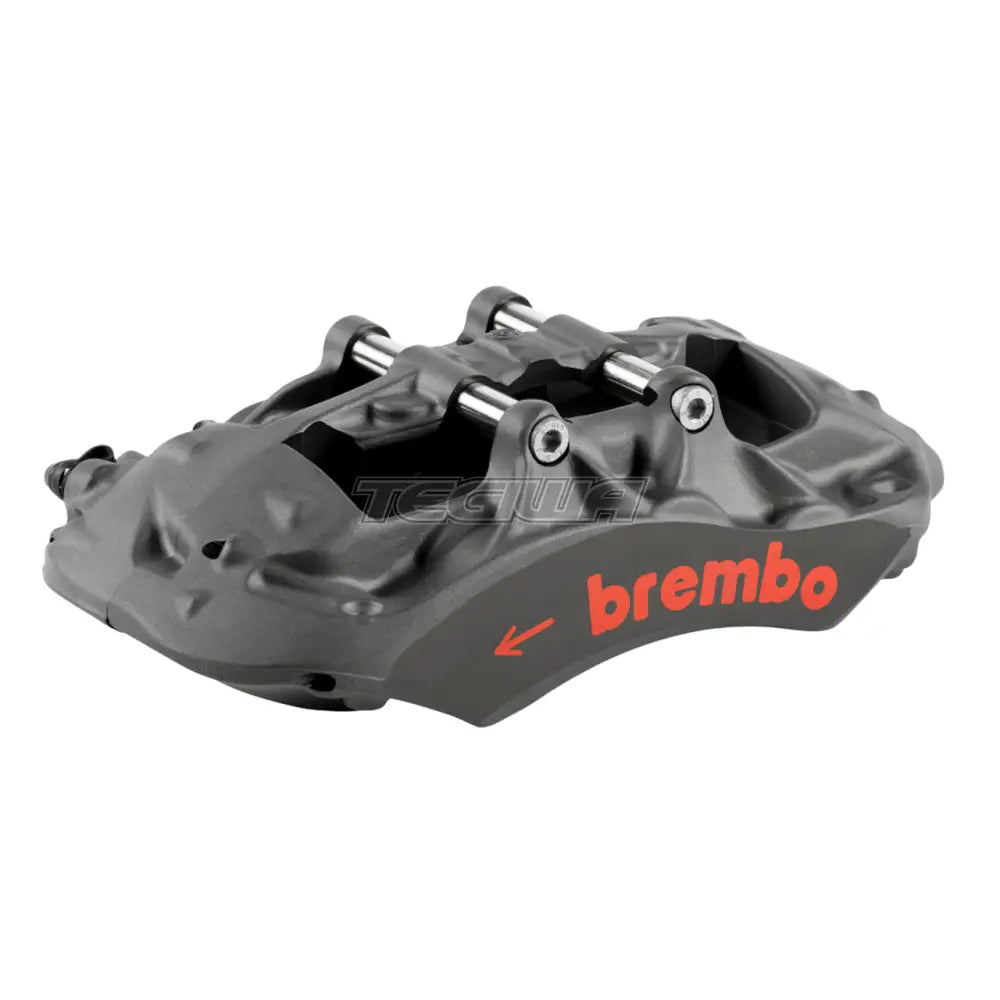

PISTA|FF6 Caliper
-
6 pistons (28/32/38mm | 1.10/1.25/1.49")
-
Compatible discs: 356–380mm (14.01"–14.96") diameter, 32–36mm (1.26"–1.42") thickness
PISTA|FF4 Caliper
-
4 pistons (28/30–36/42mm | 1.10/1.18"–1.41/1.65")
-
Compatible discs: 315–330mm (12.40"–12.99") diameter, 28mm (1.10") thickness
Innovative Design:
- Forged 2-piece construction with monobloc aesthetics
- Fixed tangential bridge + removable axial bolts for maximum stiffness
- Quick pad changes without caliper removal

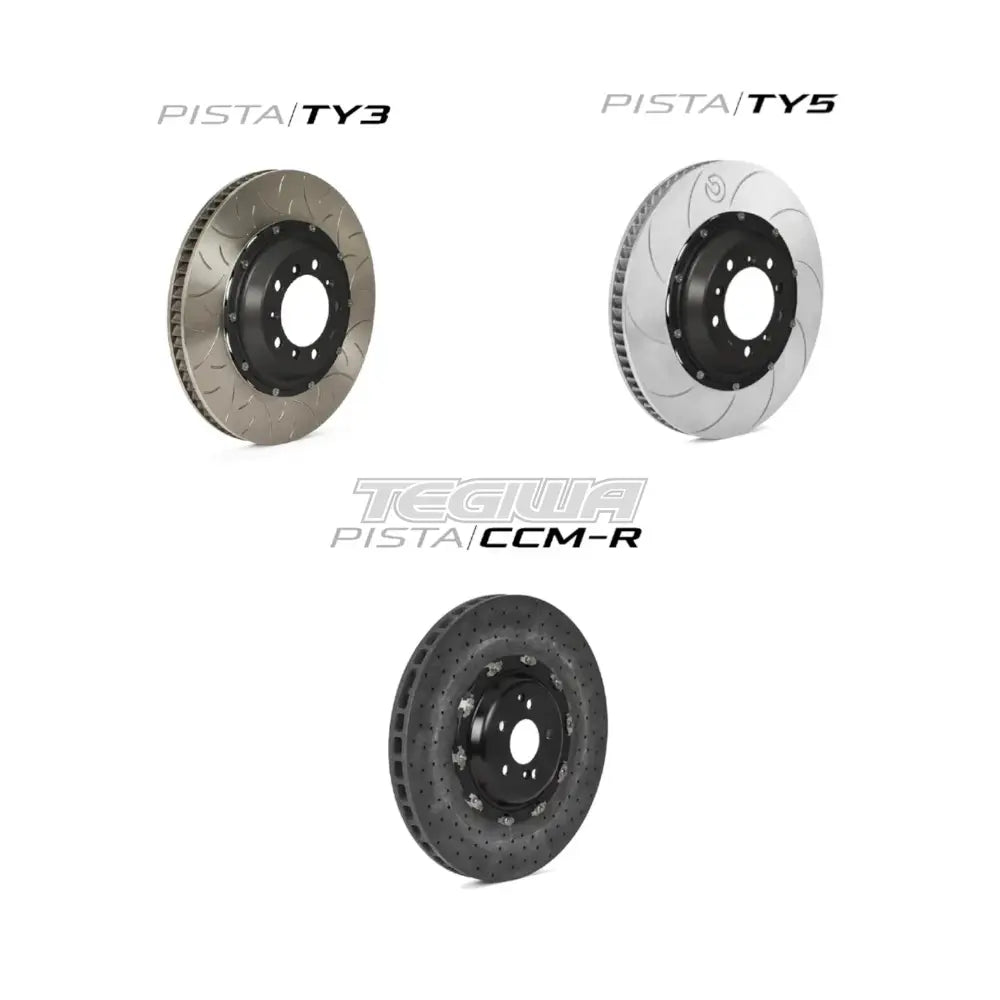

High-Performance Racing Discs
PISTA|TY5 Disc
-
Professional-grade groove machining for optimal bite & modulation
- Preferred by racing teams for its precise pedal feel
PISTA|TY3 Disc
-
Aggressive groove design for instant response & smooth modulation
- The most widely used rotor in professional racing
PISTA|CCM-R Disc – The Pinnacle of Braking Tech
-
Carbon-ceramic hybrid technology derived from top-tier motorsport
-
Ultra-lightweight with floating anti-noise hardware
- The ultimate upgrade for unmatched performance & durability
Engineered for Victory. Built for the Track.
Brembo Racing Systems - where innovation meets dominance.
Push Limits. Stop Faster. Win More.
