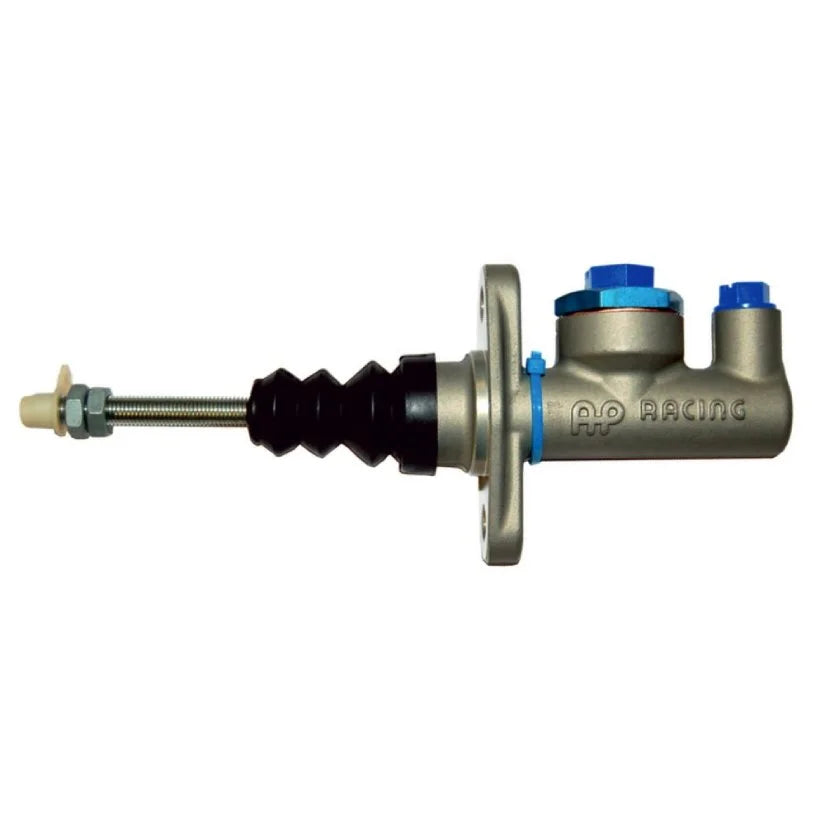

From AP Racing comes a lightweight, compact, forged bodied master cylinder suitable for all brake and clutch applications especially where space is restricted such as in a certain K-swapped, turbocharged Time Attack NSX called Tsuki.
Compact and versatile master cylinder for tight spaces
-
Short design: Ideal for restricted areas with a compact 80mm body length.
-
Strong and lightweight: Made from forged aluminum for durability.
-
Adaptable: Available in various bore sizes to suit your needs.
-
Choice of pushrod: Select the right pushrod length and thread (metric or UNF) for your application.
| Weight |
CP2623-88 to -94 = 0.300g (.66lbs)
CP26223-95 & -96 = 340g (.750lbs)
|
| Full Stroke |
25.4mm (1.00") |
| Travel To Cut-Off |
Short - 0.68 to 1.09mm (0.27 to 0.43") |
| Inlet Hydraulic Thread |
7/16" x 20UNF |
| Outlet Hydraulic Thread |
3/8" x 24UNF |
| Push Rod Threads Available |
- PRM = M8 x 1.25mm- PRT = 5/16" UNF |
