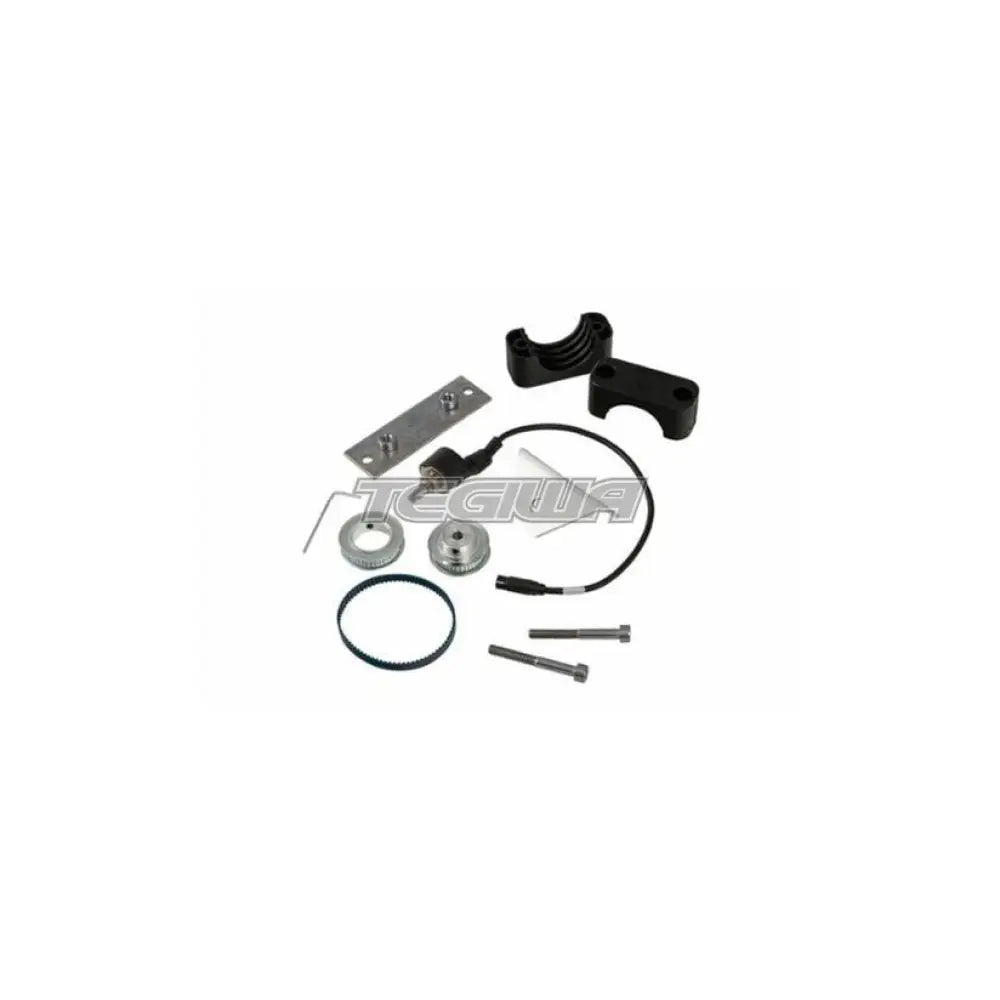

Aim Steering Angle Sensor Car. The steering angle sensor measures the angle of the steering wheel. This is done in degrees, as, the driver turns the wheel you can see how much steering input they put in. Then, you can pick out and see where they are losing time due to steering. This could be turning too much or too little into a corner.
Technical Specifications:
10 revs
For 22 mm diameter steering column
- Nominal resistance 10kohm
- Tolerance +/- 5%
- Precision 0.03 %
- Mechanical travel 1800ø / 5 revs
- Temperature range - 55øc to 125øc
- Connector 4 way binder 719 plastic
