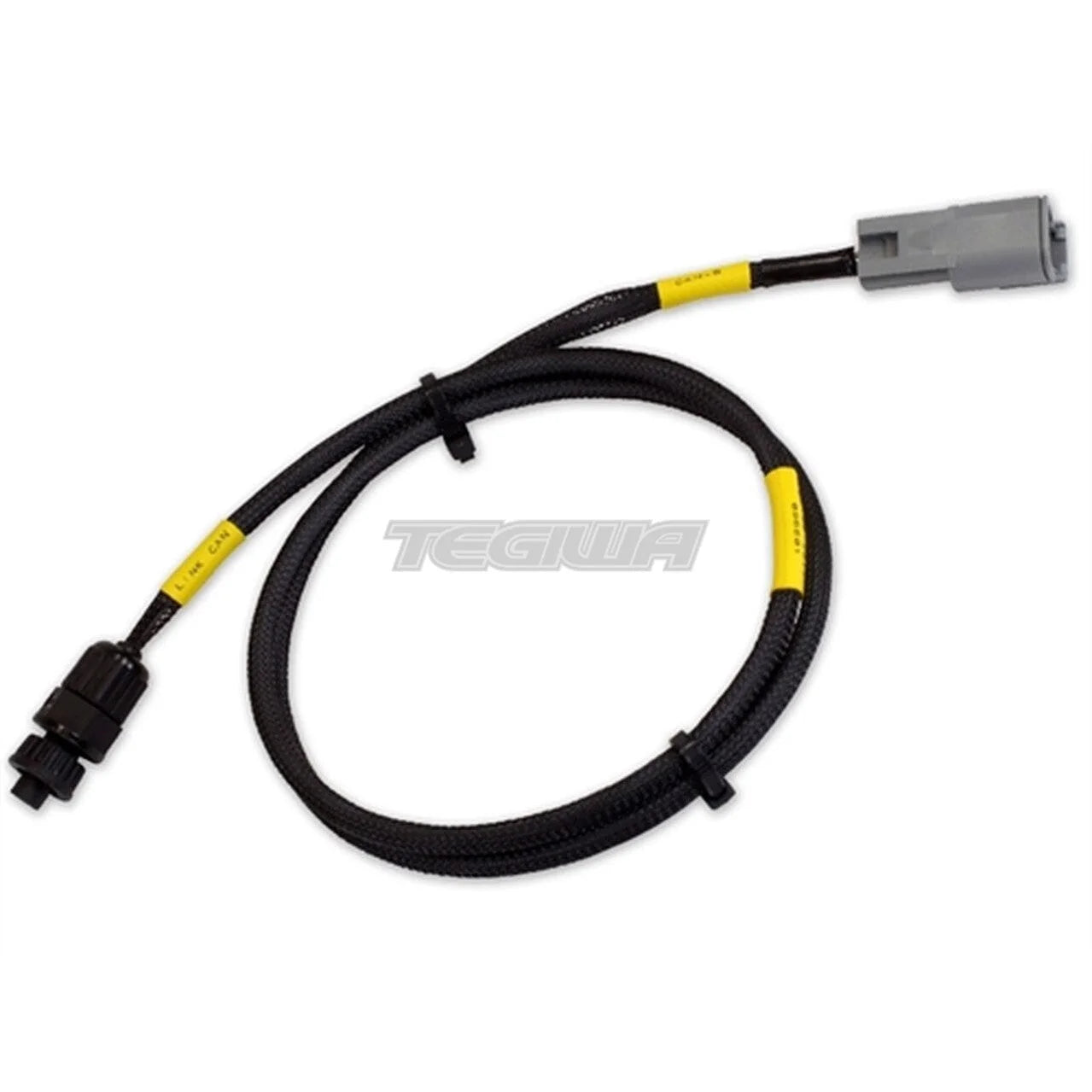

AEM CD-5/7 Carbon Digital Dash Plug & Play Adapter Harness for Vi-Pec and Link ECUs
AEM’s Plug & Play CAN bus Communication Harness (PN 30-2215) eliminates the need to manually wire a CD-5 Carbon or CD-7 Digital Dash Display to a Vi-Pec i44 or i88 ECU, or 29 Link G4+ ECUs!
Because the Vi-Pec and Link ECUs do not provide power from the CAN output, AEM recommends using its CD Power Cable (PN 30-2218, included with every dash kit) to simplify power and ground connections. The CD Power Cable connects to the AEMnet connector on the CD Dash wiring harness and includes a pigtail connection with power and ground leads that make it easy to wire the dash for power when used with non-AEMnet equipped devices.
- Provides plug & play connection from Vi-Pec and Link ECUs to CD-5 Carbon or CD-7 Digital Dash Display – no additional wiring necessary!
- Connects to CAN2 connector on CD Dash main harness and CAN output on Vi-Pec or Link harness
- Use the CDPower Cable (PN 30-2218, included in every dash kit) to simplify power and ground connection to a CD Dash
